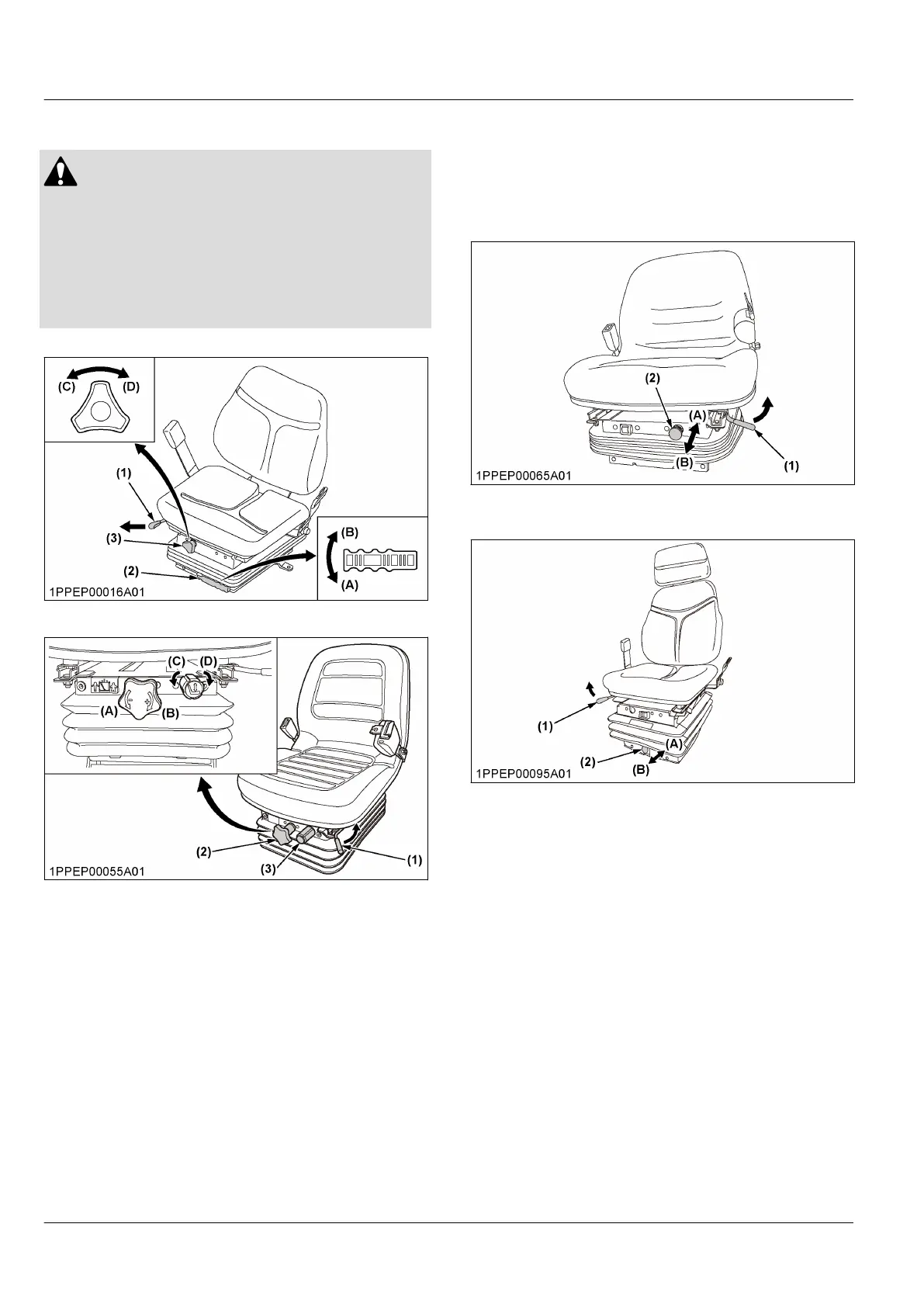

1. Operator's seat
WARNING
To avoid serious injury or death:
• Adjust the operator’s seat only while the tractor
is stopped.
• Make sure that the operator’s seat is completely
secured after each adjustment.
• Do not allow any person other than the operator
to ride on the tractor.
[Standard]
[Deluxe (Mechanical suspension)]
(1) Travel adjust lever
(2) Suspension adjust lever
(3) Height adjust knob
(A) To decrease tension
(B) To increase tension
(C) Raise
(D) Lower
Travel adjustment
Pull up the travel-adjust-lever and slide the operator's
seat backward or forward, as required. The operator's
seat will lock in position when the travel-adjust-lever is
released.
Suspension adjustment
• To increase tension, turn the suspension-adjust-
lever clockwise.
• To decrease tension, turn the suspension-adjust-
lever anticlockwise.
Height adjustment
• To lower the seat position, turn the height-adjust-
knob clockwise.
• To raise the seat position, turn the height-adjust-
knob anticlockwise.
[Deluxe (Air suspension)]
[Deluxe (Air suspension + Headrest)] (Cabin model
only)
(1) Travel adjust lever
(2) Height adjust knob
(A) Raise
(B) Lower
Travel adjustment
Pull up the travel-adjust-lever and slide the operator's
seat backward or forward, as required. The operator's
seat will lock in position when the travel-adjust-lever is
released.
Height adjustment
• To lower the seat position, pull the height-adjust-
knob.
• To raise the seat position, push the height-adjust-
knob.
IMPORTANT :
• After adjusting the operator's seat, be sure
to check that the operator's seat is properly
locked.
• Be sure that the operator's seat is out of contact
with the top link.
INSTRUMENT PANEL AND CONTROLS
FOOT AND HAND CONTROLS
