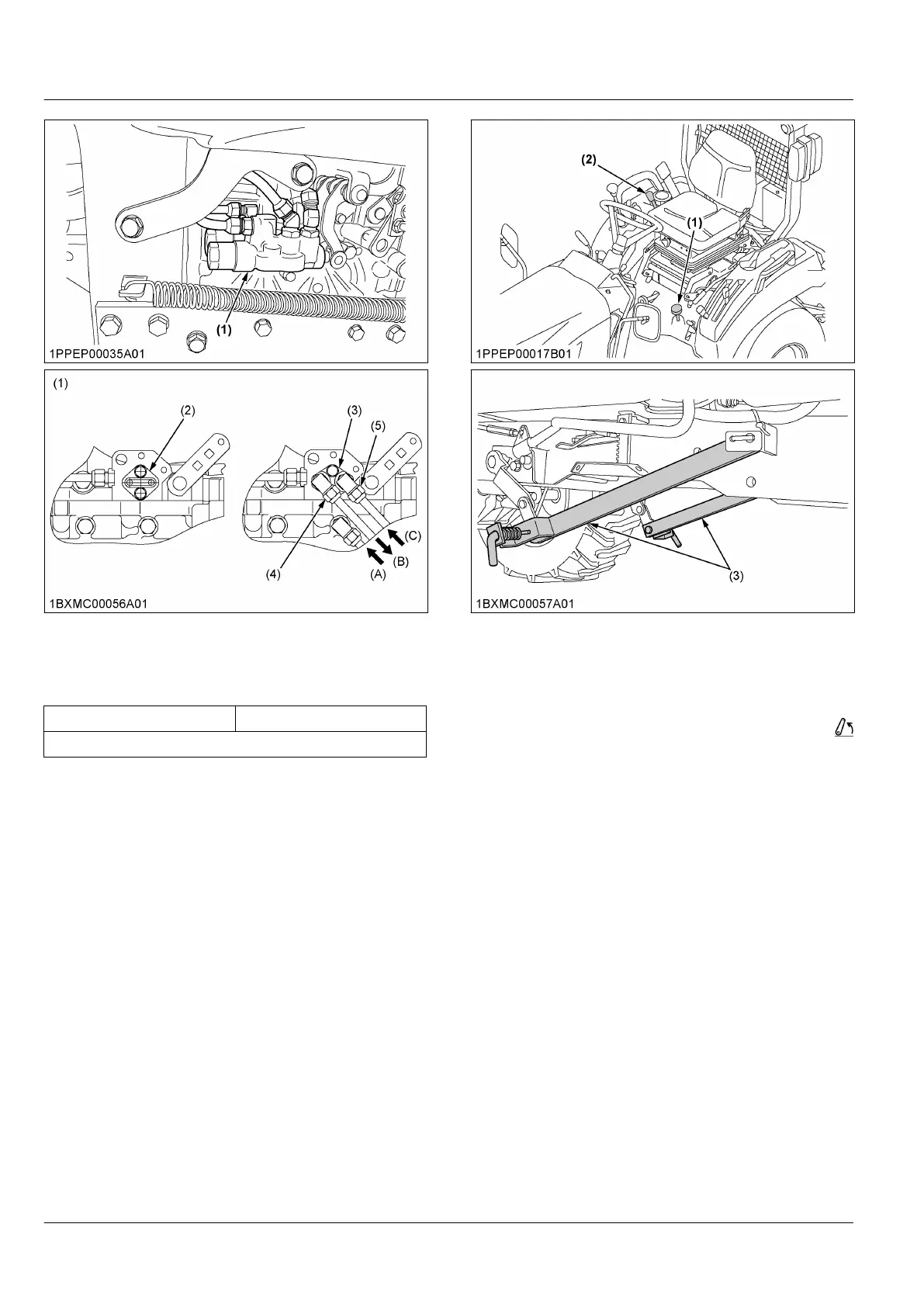

(1) Hydraulic outlet
(2) Block cover
(3) Block outlet cover (option)
(4) Outlet
(5) Inlet
(A) Return port
(B) To implement (outlet)
(C) From implement (inlet)
Max. flow of outlet 14 L/min
No relief valve in the hydraulic block.
When implement is attached, follow the following
procedure.
1. Remove the block cover.
2. Attach the block outlet cover (option).
The block outlet cover is standard part for KUBOTA
Implements
3. Route the implement inlet, outlet, and return pipes
as shown in the figures.
MOWER LIFT LINKAGE
SYSTEM
1. Cutting height control dial
When mounting the Mid-mount mower, turn the cutting-
height-control-dial to the desired height.
For further details, refer to the following operator's
manuals of rotary mower.
• RCK60B-23BX-EU
• RCK54-23BX-EU
• RCK48-18BX-EU
• RCK60D-26BX-EU
• RCK54D-26BX-EU
(1) Cutting height control dial
(2) Hydraulic control lever
(3) Mower rear link
IMPORTANT :
When operating the tractor without Mid-mount
mower, follow the following procedure.
1. Move the hydraulic lever rearward (the
position) to raise the mower-rear-links to the
highest position.
2. Set the cutting-height-control-dial to the top
position.
If you do not follow the preceding procedure,
damage of the mower-rear-link can result.
HYDRAULIC UNIT MOWER LIFT LINKAGE SYSTEM
