Rear auxiliary hydraulic control
lever (1)
Push (E) Pull (F)
Port (C) In Out
Port (D) Out In
Pressure, Returning
Rear auxiliary hydraulic control
lever (2)
Push (E) Pull (F)
Port (A) In Out
Port (B) Out In
Pressure, Returning
Coupler size
Port (A), (B), (C), (D) 3/8 BSPP
AUXILIARY HYDRAULICS
On the tractor, hydraulic outlet is provided.
WARNING
To avoid serious injury or death:
• Hydraulic fluid leaks under pressure can reach
sufficient force to penetrate skin, causing
serious personal injury.
Before disconnecting the lines, be sure to
relieve all pressure.
• Before applying pressure to the hydraulic
system, be sure that all connections are tight
and that lines, tubes, and hoses are not
damaged.
• Hydraulic fluid escaping from a very small
hole can be almost invisible. Use a piece of
cardboard or wood, rather than hands to search
for suspected leaks.
• If someone gets injured because of leaked
hydraulic fluid, see a doctor at once. Serious
infection or allergic reaction will develop if
proper medical treatment is not administered
immediately.

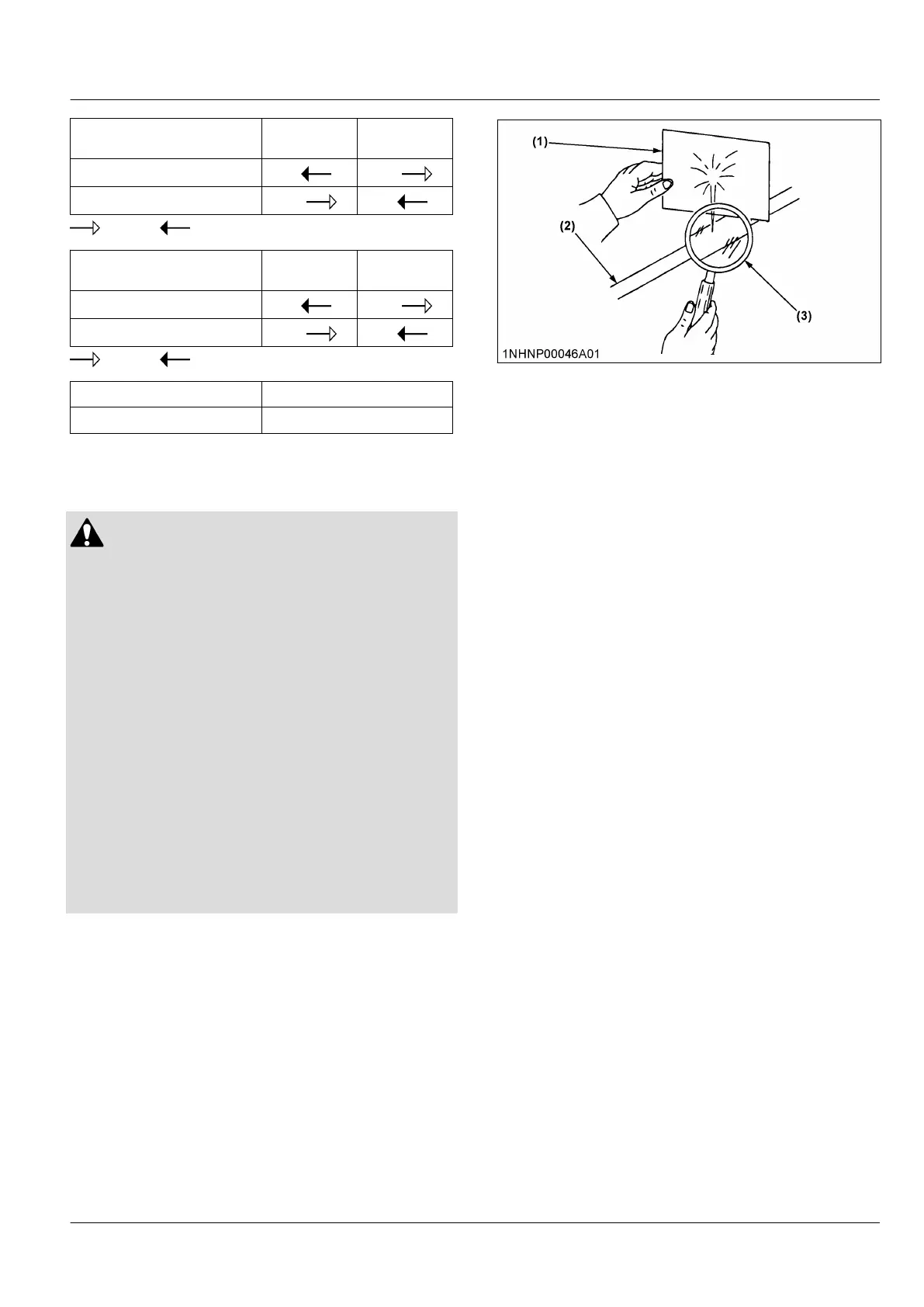

(1) Cardboard
(2) Hydraulic line
(3) Magnifying glass
1. Hydraulic outlet
Hydraulic outlet is useful when adding the hydraulically
operated equipment such as front end loader, front
blade, and so on.
IMPORTANT :
• For the hydraulic outlet, be sure to use the
control valve of the power-beyond-type with the
relief valve. The third line returns to tank for the
operation of the hydraulic block.
AUXILIARY HYDRAULICS HYDRAULIC UNIT
