Kubota L185 User Manual

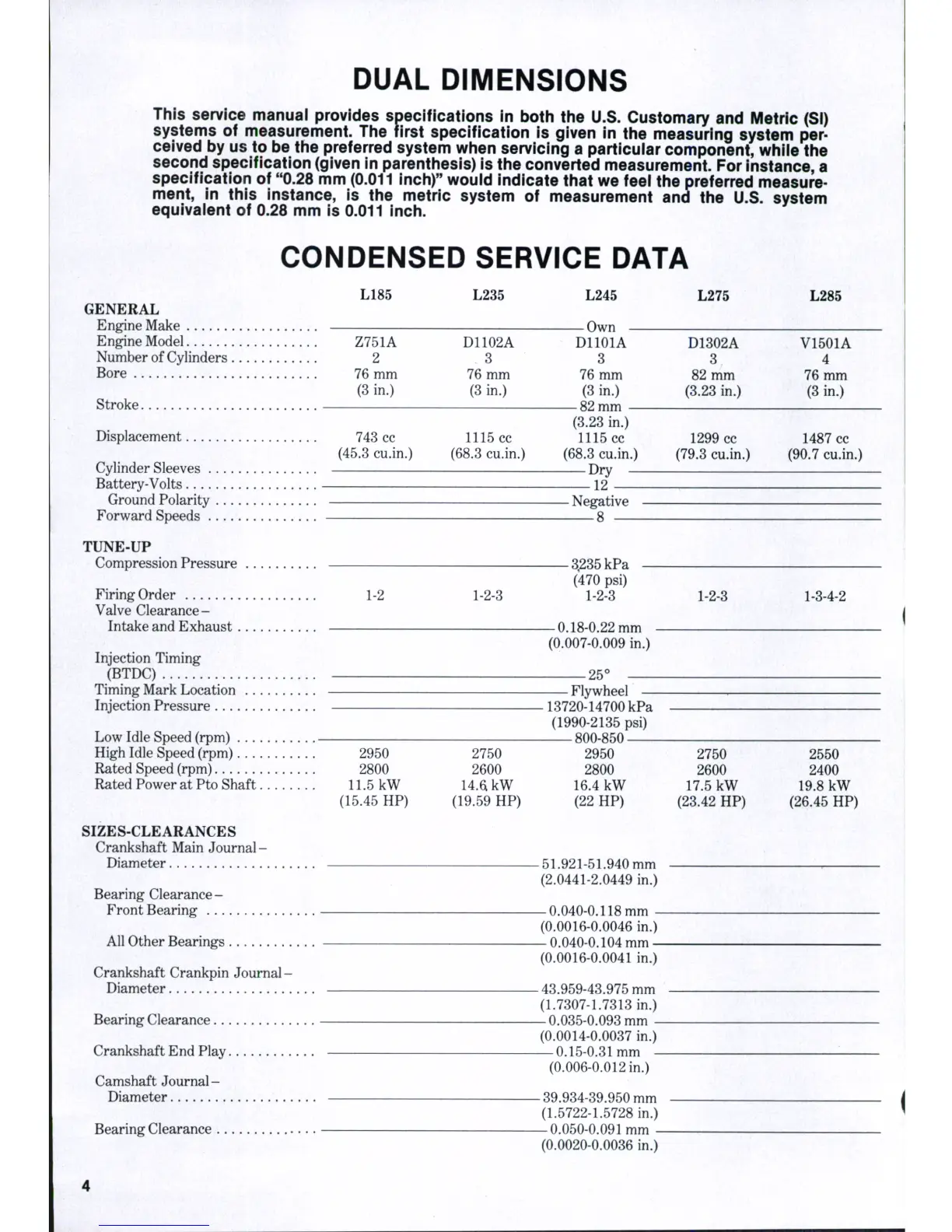

DUAL DIMENSIONS
This service manual provides specifications in both the U.S. Customary and Metric (SI)
systems of measurement. The first specification is given in the measuring system per-
ceived by us to be the preferred system when servicing a particuiar component, whiie the
second specification (given in parenthesis) is the converted measurement. For instance, a
specification of "0.28 mm (0.011 inch)" wouid indicate that we feei the preferred measure-
ment, in this instance, is the metric system of measurement and the U.S. system
equivaient of 0.28 mm is 0.011 inch.
CONDENSED SERVICE DATA
L185 L235
GENERAL
Engine Make
Engine Model Z751A D1102A
Number of Cylinders 2 3
Bore 76 mm 76 mm
(3 in.) (3 in.)
Stroke
Displacement 743 cc 1115 cc
(45.3 cu.in.) (68.3 cu.in.)
Cylinder Sleeves
Battery-Volts
Ground Polarity
Forward Speeds
TUNE-UP
Compression Pressure —
FiringOrder 1-2 1-2-3
Valve Clearance-
Intake and Exhaust
Injection Timing
(BTDC) - . .
Timing Mark Location
Injection Pressure
Low Idle Speed (rpm)
High Idle Speed (rpm) 2950 2750
Rated Speed (rpm) 2800 2600
Rated Power at Pto Shaft 11.5 kW 14.61 kW
(15.45 HP) (19.59 HP)
SIZES-CLEARANCES
Crankshaft Main Journal-
Diameter
Bearing Clearance -
Front Bearing
All Other Bearings
Crankshaft Crankpin Journal -
Diameter
Bearing Clearance
Crankshaft End Play
Camshaft Journal -
Diameter
Bearing Clearance
L24S
Own —
DllOlA
3
76 mm
(3 in.)
— 82 mm —
(3.23 in,)
1115 cc
(68.3 cu.in.)
Dry —
12
— Negative
8
L275 L285
- 3,235 kPa
(470 psi)
1-2-3
— 0.18-0.22 mm
(0.007-0.009 in.)
-25°
- Flywheel
-13720-14700 kPa
(1990-2135 psi)
800-850
2950
2800
16.4 kW
(22 HP)
-51.921-51.940 mm
(2.0441-2.0449 in.)
-0.040-0.118 mm -
(0.0016-0.0046 in.)
— 0.040-0.104 m m -
(0.0016-0.0041 in.)
-43.959-43.975 mm
(1.7307-1.7313 in.)
-0.035-0.093 mm -
(0.0014-0.0037 in.)
— 0.15-0.31 mm -
(0.006-0.012 in.)
-39.934-39.950 mm
(1.5722-L5728 in.)
— 0.050-0.091 mm -
(0.0020-0.0036 in.)
D1302A
3
82 mm
(3.23 in.)
V1501A
4
76 mm
(3 in.)
1299 cc
(79.3 cu.in.)
1487 cc
(90.7 cu.in.)
1-2-3 1-3-4-2
2750
2600
17.5 kW
(23.42 HP)
2550
2400
19.8 kW
(26.45 HP)

Kubota L185 Specifications

General

Brand	Kubota
Model	L185
Category	Tractor
Language	English
