STV32 · STV36 · STV40, WSM CLUTCH
2-M1
1. LINKAGE MECHANISM
The dry single type clutch is adopted for this tractor.
The clutch is located between the engine and transmission, and is operated by stepping on the clutch pedal. When
the clutch pedal is not depressed, the clutch is engaged and power from the engine is transmitted to the transmission.

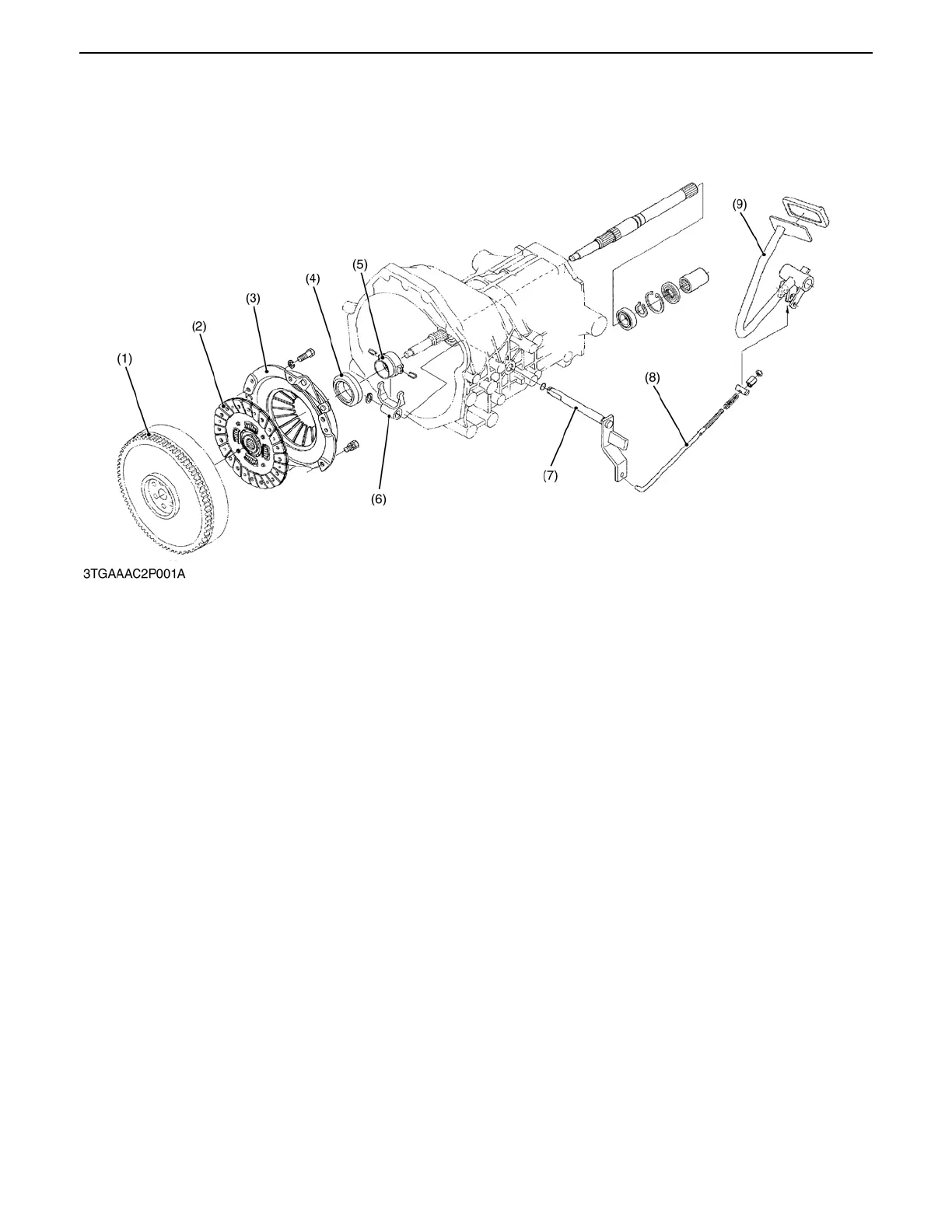

(1) Flywheel (4) Release Bearing (6) Release Fork (8) Clutch Rod
(2) Clutch Disc (5) Release Hub (7) Clutch Lever (9) Clutch Pedal
(3) Pressure Plate Assembly
0000007513E
