STV32 · STV36 · STV40, WSM TRANSMISSION
3-S53

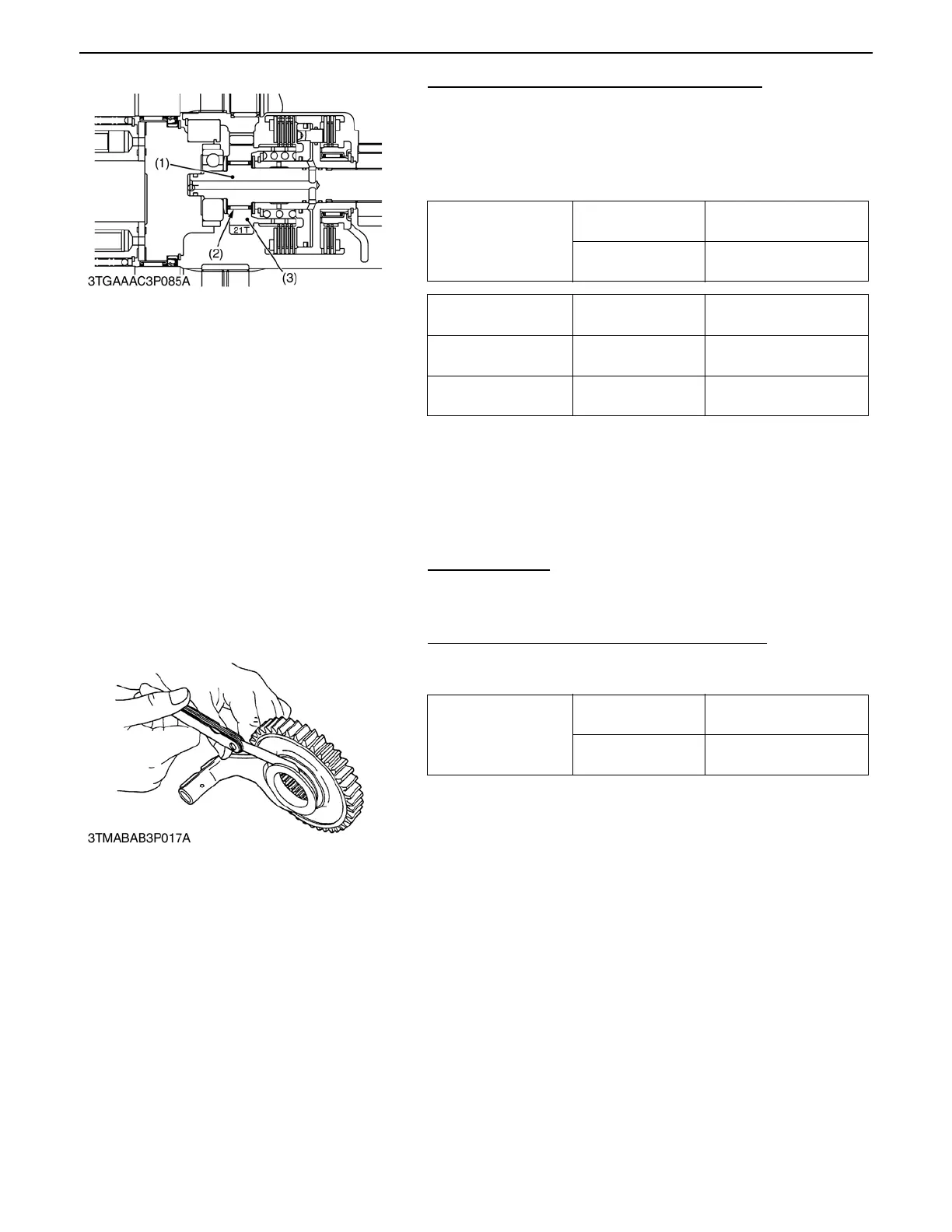

Clearance between 21T Gear and Counter Shaft
1. Measure the 21T gear I.D. and counter shaft O.D..
2. Measure the O.D. of two needles installed diagonally in the
needle bearing.
3. Calculate the clearance.
4. If the clearance exceeds the allowable limit, replace.
(3) Transmission Case
Checking Bearing
See page 3-S49.
Clearance between Shift Fork and Shifter Groove
1. Place for in the groove to check clearance with feeler gauge.
2. If the clearance exceeds allowable limit, replace.
Clearance between 21T
gear and counter shaft
Factory spec.
0.009 to 0.040 mm
0.0004 to 0.0016 in.
Allowable limit
0.1 mm
0.0039 in.
21T Gear I.D. Factory spec.
35.009 to 35.025 mm
1.3783 to 1.3789 in.
Counter shaft O.D. Factory spec.
29.991 to 30.000 mm
1.1807 to 1.1811 in.
Needle O.D. Factory spec.
2.497 to 2.500 mm
0.0983 to 0.0984 in.
(1) Counter Shaft (3) 21T Gear
(2) Needle Bearing
0000007731E
0000007728E
Clearance between shift
fork and shifter groove
Factory spec.
0.1 to 0.40 mm
0.004 to 0.016 in.
Allowable limit
0.80 mm
0.031 in.
0000007732E
To Next Page
