STV32 · STV36 · STV40, WSM HYDRAULIC SYSTEM
8-M15

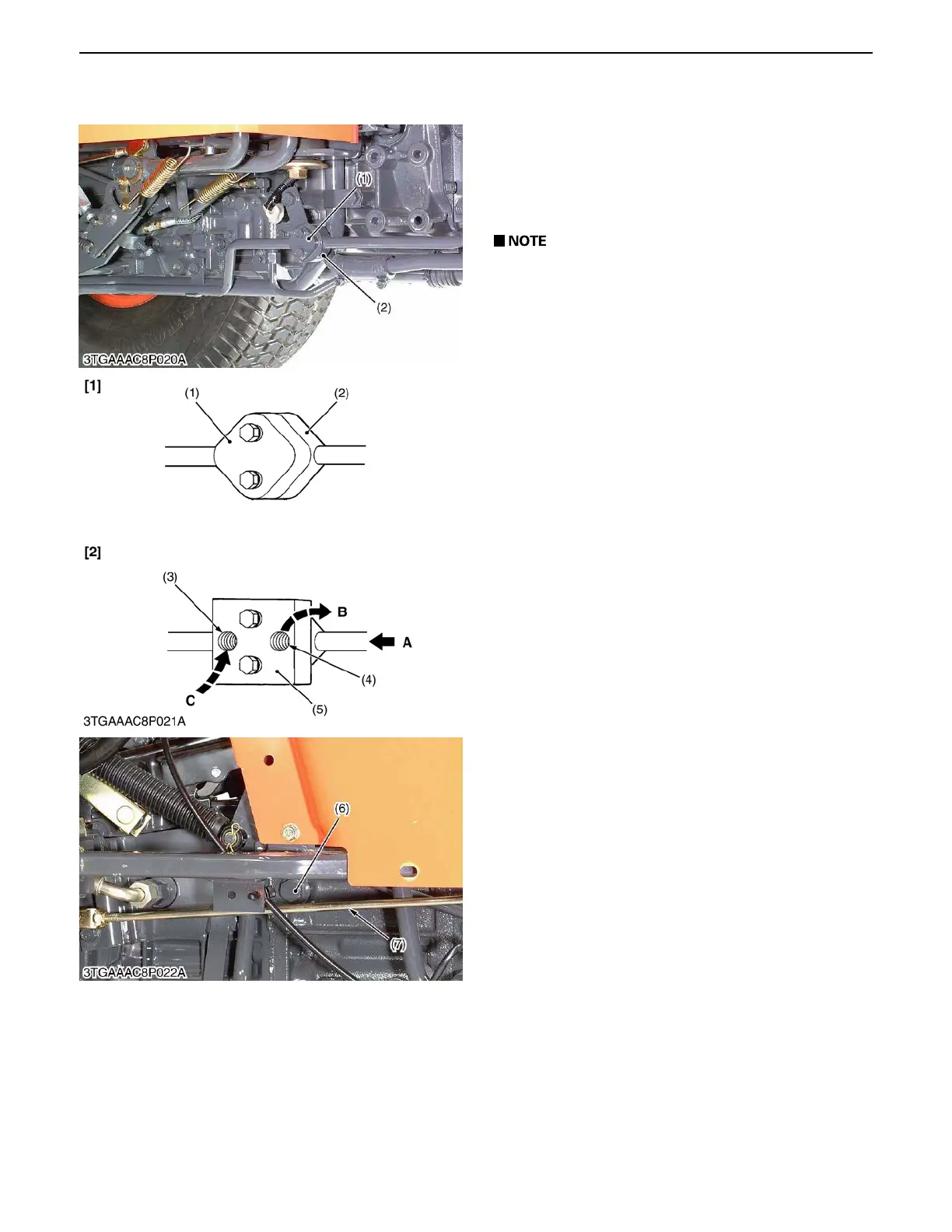

7. HYDRAULIC BLOCK TYPE OUTLET
The hydraulic block type outlet is located at the right
hand side of the clutch housing.
This hydraulic block type outlet is provided to take
power out from the tractor to operate the hydraulic
cylinders on the implement, such as front end loader,
front blade and so on.
A For hydraulic block type outlet, be sure to use
the control valve of the "Power beyond type"
with relief valve that has a third line return to
tank for the operation of hydraulic block.
A The tank port flow from implement should be
connected to the tank port (6) located on the
right hand side of mid case.
(1) Block Cover A : From Hydraulic Pump
(2) Hydraulic Block B : To Implement (Outlet)
(3) Inlet Max. flow 23.0 L/min.
(4) Outlet (6.1 U.S.gal./min.,
(5) Block Outlet Cover 5.1 Imp.gal./min.)
(Option) No relief valve in the
(6) Tank Port hydraulic block.
(7) Brake Rod (RH) C : From Implement
(Inlet)
[1] When implement is not
attached
[2] When implement is
attached
0000007839E
KiSC issued 04, 2006 A
