STV32 · STV36 · STV40, WSM GENERAL
G-29

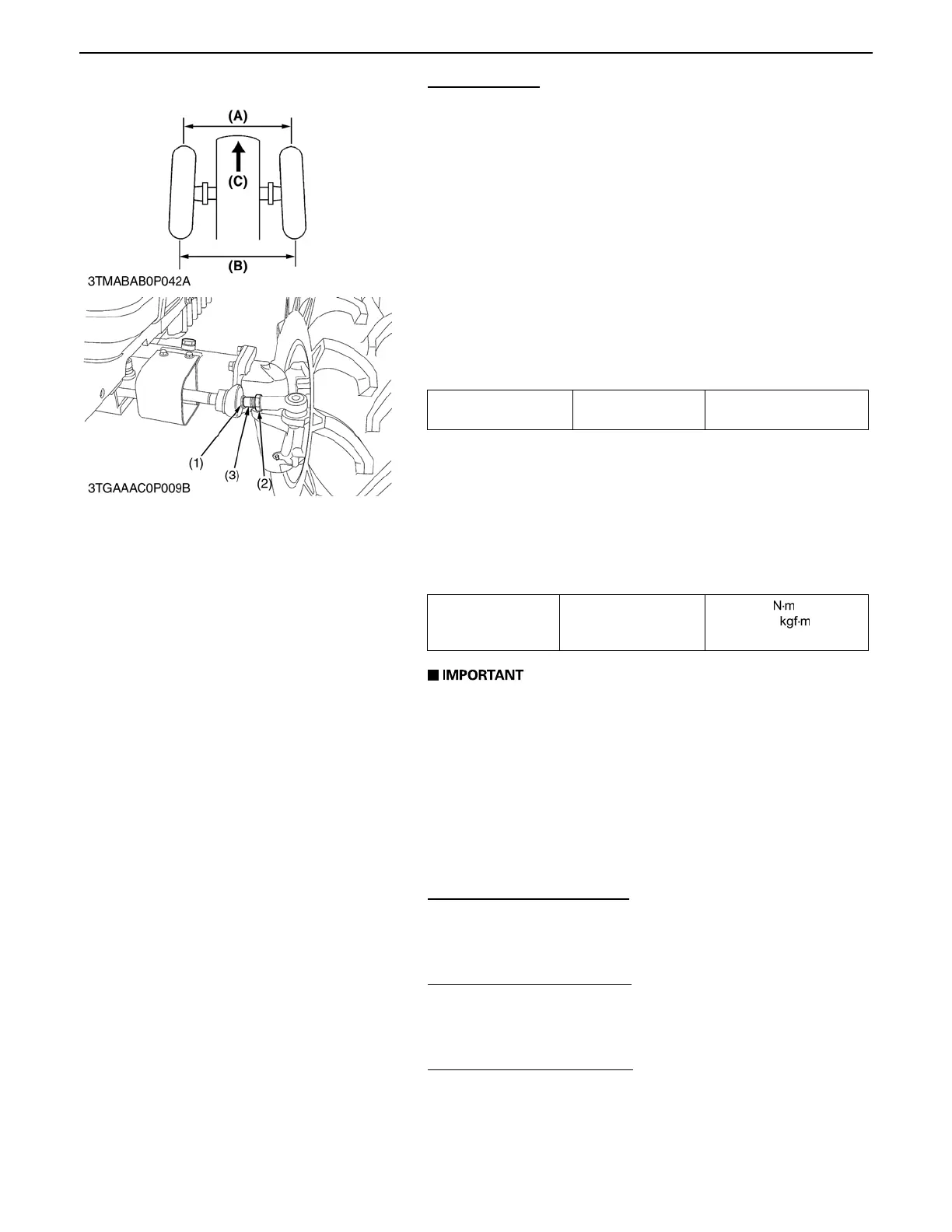

Adjusting Toe-in
1. Park the tractor on the flat place.
2. Inflate the tires to the specified pressure.
3. Turn steering wheel so front wheels are in the straight ahead
position.
4. Lower the implement, lock the parking brake and stop the
engine.
5. Measure distance between tire beads at front of tire, hub
height.
6. Measure distance between tire beads at rear of tire, hub
height.
7. Front distance should be 2 to 8 mm (0.079 to 0.315 in.) less
than rear distance.
8. If the measurement is not within the factory specifications,
adjust by changing the tie-rod length.
B Adjusting
1. Detach the snap ring (1) from the dust cover.
2. Loosen the tie-rod lock nut (2) and turn the tie-rod joint (3) to
adjust the tie-rod length until the proper toe-in measurement is
obtained.
3. Retighten the tie-rod lock nut (2).
4. Attach the snap ring (1) to the dust cover.
A A right and left tie-rod joint is adjusted to the same length.
[6] CHECK POINTS OF EVERY 400 HOURS
Changing Transmission Fluid
1. See page G-15.
Replacing Fuel Filter Element
1. See page G-22.
Changing Front Axle Case Oil
1. See page G-16.
Toe-in ((B) - (A)) Factory spec.
2 to 8 mm
0.079 to 0.315 in.
Tightening torque Tie-rod lock nut
117 to 137
12.0 to 14.0
86.1 to 101.3 ft-lbs
(1) Snap Ring (A) Wheel to Wheel Distance at
(2) Tie-rod Lock Nut Front
(3) Tie-rod Lock Joint (B) Wheel to Wheel Distance at
Rear
(C) Front
0000007991E
0000007992E
0000007993E
0000007994E
