[2] TREAD

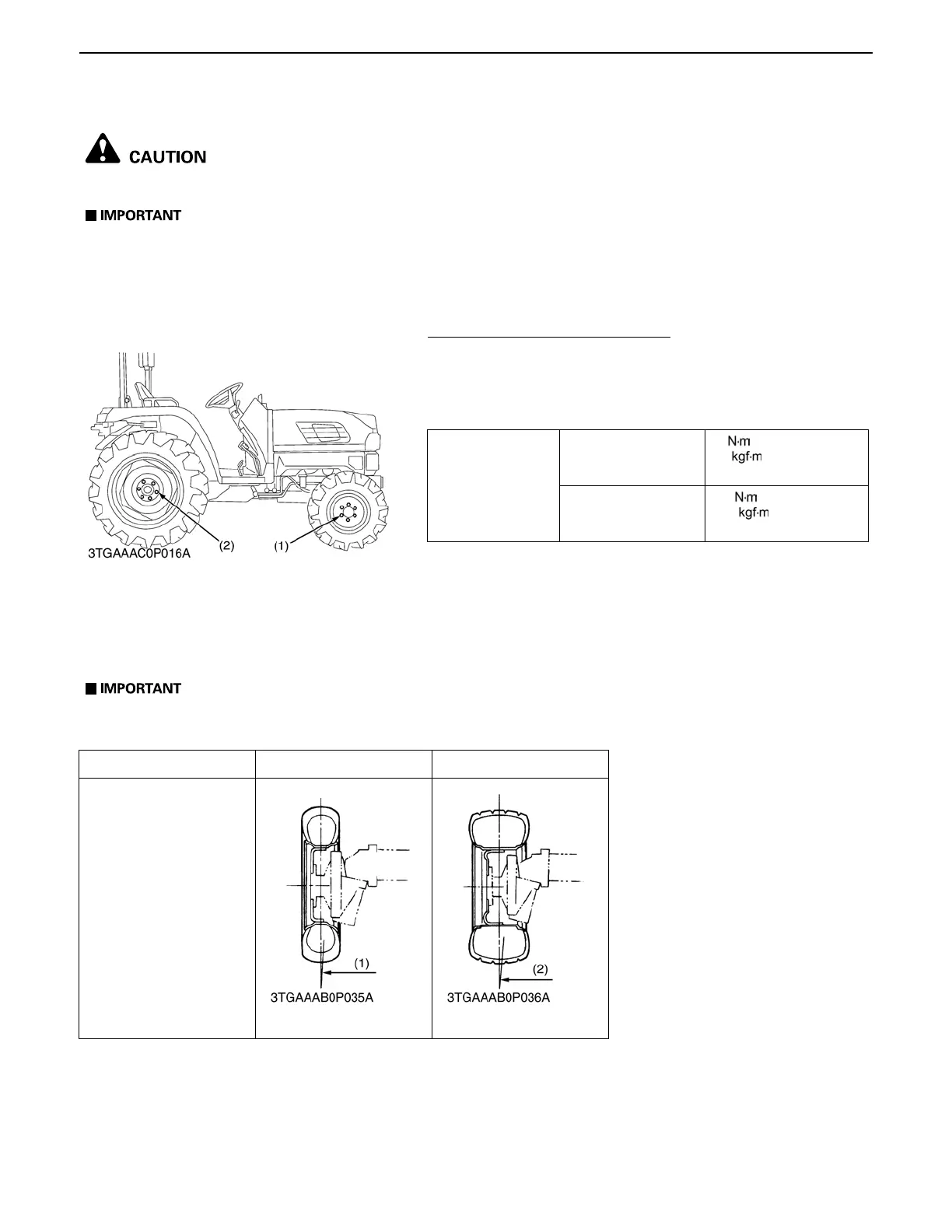

Wheel Tightening Screws and Nuts
1. When refitting or adjusting a wheel, tighten the screws and
nuts with specified tightening torque.
2. Recheck after driving the tractor 200 m (200 yards) and
therefore according to service interval.
(1) Front Wheels
Front wheel tread cannot be adjusted.
A Support tractor securely on stands before removing a wheel.
A Never operate tractor with a loose rim, wheel or axle.
A Always attach tires as shown in the figure.
A If not attached as the figure, transmission parts may be damaged.
A Do not use tires larger than specified.
0000008008E
Tightening torque
Front wheel mounting
screw and nut
85
9.0
65.1 ft-lbs
Rear wheel mounting
screw and nut
215
22.0
159.1 ft-lbs
(1) Front Wheel (2) Rear Wheel
0000008009E
A Do not turn front discs to obtain wider tread. In setting up the front wheels, make sure that the inflation
valve stem of the tires face outward.
Tires 6.00 - 12 Farm 24 x 8.50 - 14 Turf
Tread
(1) 1030 mm (40.55 in.) (2) 1030 mm (40.55 in.)
0000008010E
