STV32 · STV36 · STV40, WSM TRANSMISSION
3-S32

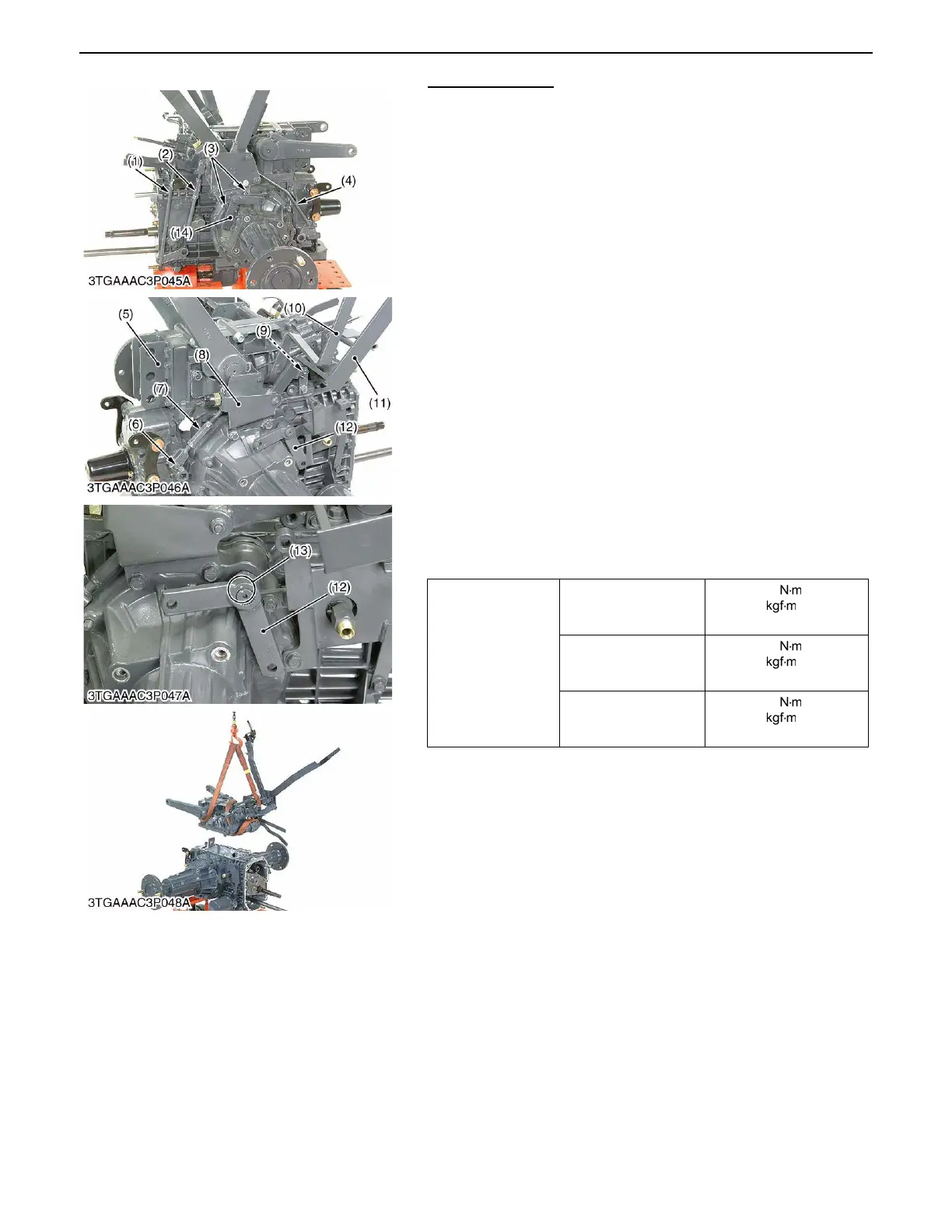

Hydraulic Cylinder
1. Remove the front drive rod (1), range gear shift rod (2) and mid
PTO rod (4).
2. Remove external snap ring and remove the brake lever (14)
(12).
3. Remove the stay mounting screws (3).
4. Remove the spring pin (6) to separate the rear PTO rod (7).
5. Remove the spring pin (9) to separate the position control
lever (10) from the hydraulic cylinder.
6. Remove the position control lever (10) and rear PTO lever (11)
with the lever stay (8).
7. Remove the top link bracket (5).
8. Remove the hydraulic cylinder mounting screws and separate
the hydraulic cylinder.
(When reassembling)
A Apply liquid gasket (Three Bond 1208D or equivalent) to the
joint face of the hydraulic cylinder and transmission case.
A Apply liquid lock (Three Bond 1372 or equivalent) to hydraulic
cylinder mounting screw at center of rear side to prevent oil
leaking.
A Be sure to fix the differential lock pedal and the groove of the
differential lock fork rod.
A When reassembling the brake lever (12) (14), align the punch
mark (13) of the brake lever.
Tightening torque
Top link bracket
mounting screw
39.3 to 44.1
4.0 to 4.5
29.0 to 32.5 ft-lbs
Hydraulic cylinder
mounting screw
39.3 to 44.1
4.0 to 4.5
29.0 to 32.5 ft-lbs
Lever stay mounting
screw
39.3 to 44.1
4.0 to 4.5
29.0 to 32.5 ft-lbs
(1) Front Drive Rod (8) Lever Stay
(2) Range Gear Shift Rod (9) Spring Pin
(3) Stay mounting Screw (10) Position Control Lever
(4) Mid PTO Rod (11) Rear PTO Lever
(5) Top LInk Bracket (12) Brake Lever (Right)
(6) Spring Pin (13) Punch Mark
(7) Rear PTO Rod (14) Brake Lever (Left)
0000007535E
