STV32 · STV36 · STV40, WSM TRANSMISSION
3-S41
Hydraulic PTO Clutch (To be Continued)

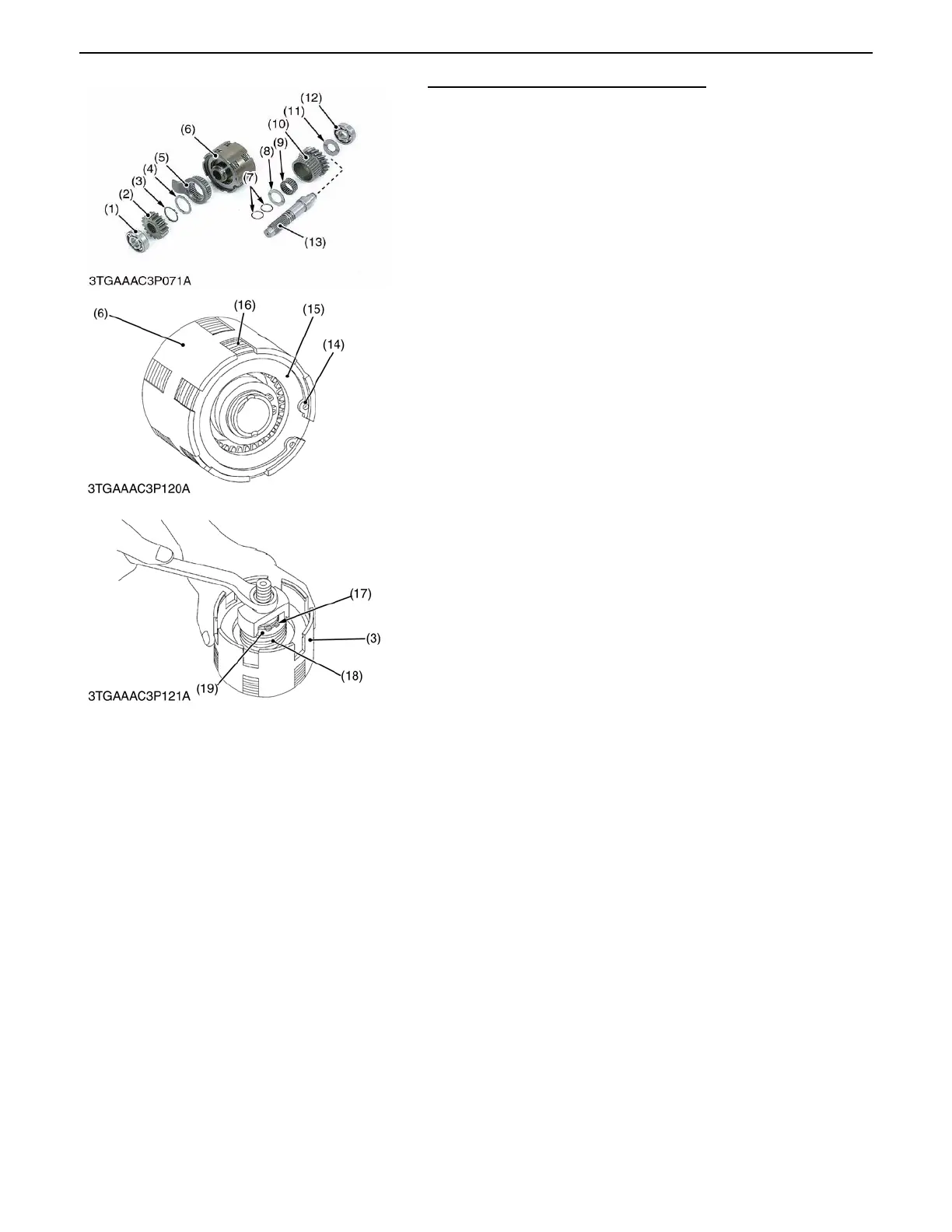

1. Remove the bearing (1) and 17T gear (2).
2. Pull out the counter shaft (13), collar (11), bearing (12), 21T
gear (10), needle bearing (9) and collar (8).
3. Remove the external snap ring (3) and pull put the collar (4)
and stopper (5).
4. Remove the internal snap ring (14) and take out the pressure
plate (15) steel plate and clutch disc (16).
5. Remove the external snap ring (17) with clutch pack
disassembling tool, and take out the collar (19) and spring
(18).
(When reassembling)
A Apply transmission oil to the needle bearing (9).
(1) Bearing (11) Collar
(2) 17T Gear (12) Bearing
(3) External Snap Ring (13) Counter Shaft
(4) Collar (14) Internal Snap Ring
(5) Stopper (with Needle Bearing) (15) Pressure Plate
(6) Clutch Body (16) Steel Plate and Disc
(7) O-rings (17) External Snap Ring
(8) Collar (18) Spring
(9) Needle Bearing (19) Collar
(10) 21T Gear
0000007580E
