Checking Clutch Pedal Free Travel
A When checking, park the tractor on flat ground, apply the
parking brake, stop the engine and remove the key.
1. Slightly depress the clutch pedal (1) and measure free travel
"L" at top of clutch pedal.
2. If the measurement is not within the factory specifications,
loosen the lock nut and adjust the clutch rod (2) length.
A After adjustment, be sure to check that engine does not
start without depressing the clutch pedal but engine start
when depressing the clutch pedal.
Clutch pedal free travel
"L"
Factory spec.
20 to 30 mm
0.78 to 1.18 in.

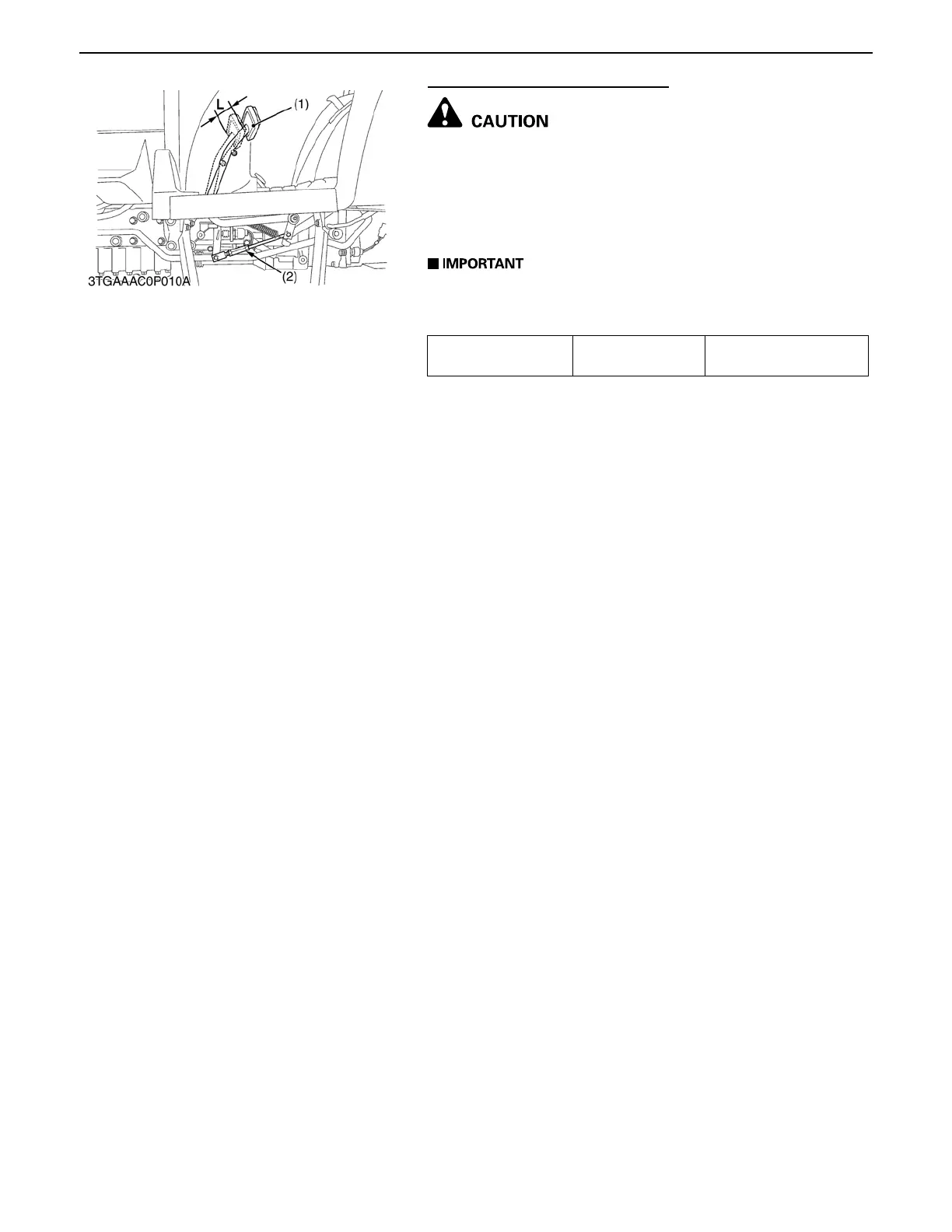

(1) Clutch Pedal L : Free Travel
(2) Clutch Rod
