STV32 · STV36 · STV40, WSM HYDRAULIC SYSTEM
8-S14
Relief Valve Setting Pressure Test Using Pressure Tester
1. Start the engine and move the position control lever to the
maximum raising position.
2. Turn the feedback rod adjusting nut and lock nut until the relief
valve begins to be operated. (Refer to 8-S13 "Adjusting
Feedback Rod").
3. Move the position control lever to the lowest position and stop
the engine.
4. Remove the plug of hydraulic cylinder cover and install the
adaptor 4. Then connect the cable (Code No.: 07916-50331)
and pressure gauge (Code No.: 07916-50322) to adaptor 4.
5. Start the engine and set the engine speed at maximum.
6. Move the position control lever to the maximum raising
position and read the pressure when the relief valve functions.
7. Stop the engine.
8. If the pressure is not within the factory specification, remove
the relief valve plug (2) and adjust with adjusting shims (3).
9. After the relief valve setting pressure test, adjust the feedback
control rod. (See page 8-S12.)
Condition
A Engine speed ........ Maximum
A Oil temperature ..... 40 to 60 (104 to 140 )
(Reference)
A Adaptor 4 is included in engine oil pressure tester (Code No.:
07916-32032).
A Thickness of shim (3) :
0.1 mm (0.0039 in.), 0.2 mm (0.0078 in.), 0.4 mm (0.0157 in.)
A Pressure change per 0.1 mm (0.0039 in.) shim :
Approx. 264.8 kPa
2.7
38.4 psi
Relief valve setting
pressure
Factory spec.
16.7 to 17.2 MPa
170 to 175
2425 to 2484 psi

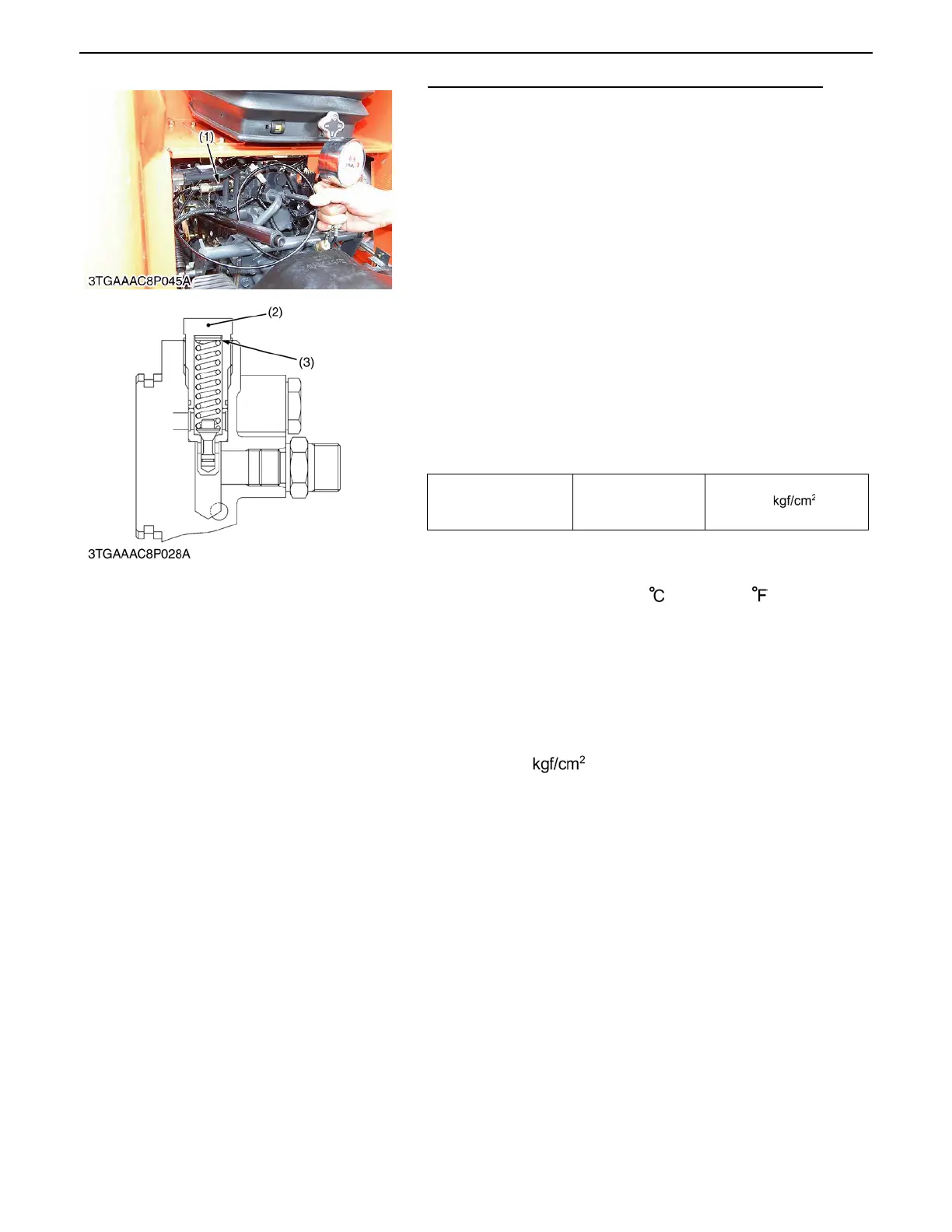

(1) Adaptor 4 (3) Shim
(2) Relief Valve Plug
0000007851E
To Next Page
