Greasing (Continued)
1. Apply a grease to the following position as figures.
Checking Engine Start System
A Do not allow anyone near the tractor while testing.
A If the tractor does not pass the test do not operate the
tractor.
B Preparation before testing
1. Place all control levers in the "NEUTRAL" position.
2. Set the parking brake and stop the engine.
B Test : Switch for the speed control pedal
1. Sit on the operator's seat.
2. Depress the speed control pedal to the desired direction.
3. Depress the clutch pedal Fully.
4. Disengage the PTO clutch control switch.
5. Turn the key to "START" position.
6. The engine must not crank.
B Test : Switch for the PTO clutch control switch
1. Sit on the operator's seat.
2. Engage the PTO clutch control switch.
3. Depress the clutch pedal Fully.
4. Place the speed control pedal in neutral position.
5. Turn the key to "START" position.
6. The engine must not crank.
B Test : Switch for the clutch pedal
1. Sit on the operator's seat.
2. Disengage the PTO clutch control switch.
3. Place the speed control pedal in neutral position.
4. Release the clutch pedal.
5. Turn the key to "START" position.
6. The engine must not crank.
B After Testing : If crank any test of the above, adjust or
replace the required safety switch.

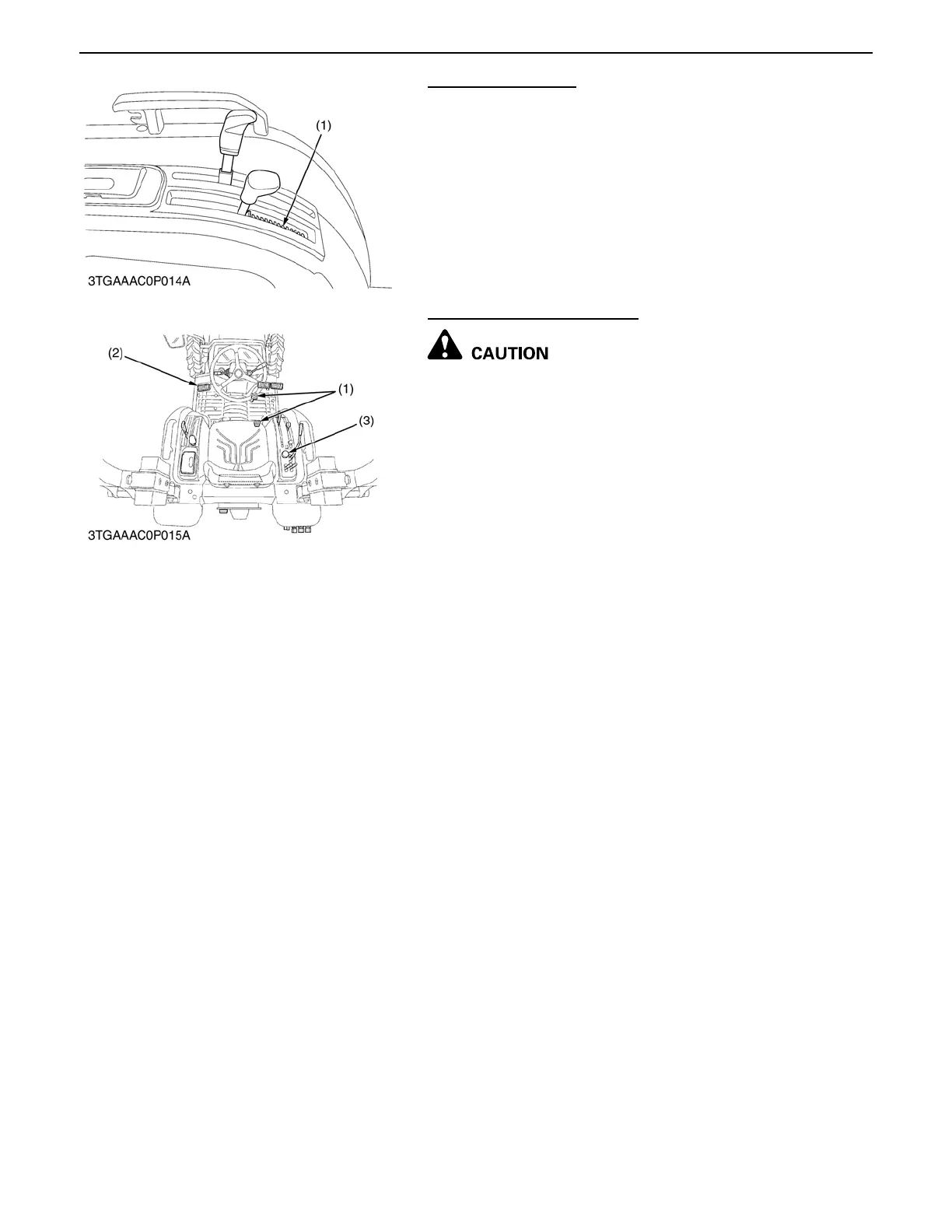

(1) Cruise Control Lever Guide
0000007974E
(1) Speed Control Pedal (3) PTO Clutch Control Switch
(2) Clutch Pedal
0000007975E
