STV32 · STV36 · STV40, WSM ELECTRICAL SYSTEM
9-S24
4) Light Switch Continuity when Setting Switch at LOW-
BEAM Position
1. Measure the resistance with an ohmmeter across the B1
terminal to the T terminal and the B1 terminal to the 2 terminal.
2. If 0 ohm is not indicated, the head light switch is faulty.
5) Turn Signal Light Switch when Setting Switch Knob at
OFF Position
1. Set the turn signal light switch to the OFF position.
2. Measure the resistance with an ohmmeter across the B2
terminal to the R terminal and the B2 terminal to the L terminal.
3. If infinity is not indicated, the turn signal light switch is faulty.
6) Turn Signal Light Switch when Setting Switch Knob at
R Position
1. Set the turn signal light switch to the R position.
2. Measure the resistance with an ohmmeter across the B2
terminal to the R terminal.
3. If 0 ohm is not indicated, the turn signal light switch is faulty.
7) Turn Signal Light Switch when Setting Switch Knob at L
Position
1. Set the turn signal light switch to the L position.
2. Measure the resistance with an ohmmeter across the B2
terminal to the L terminal.
3. If 0 ohm is not indicated, the turn signal light switch is faulty.

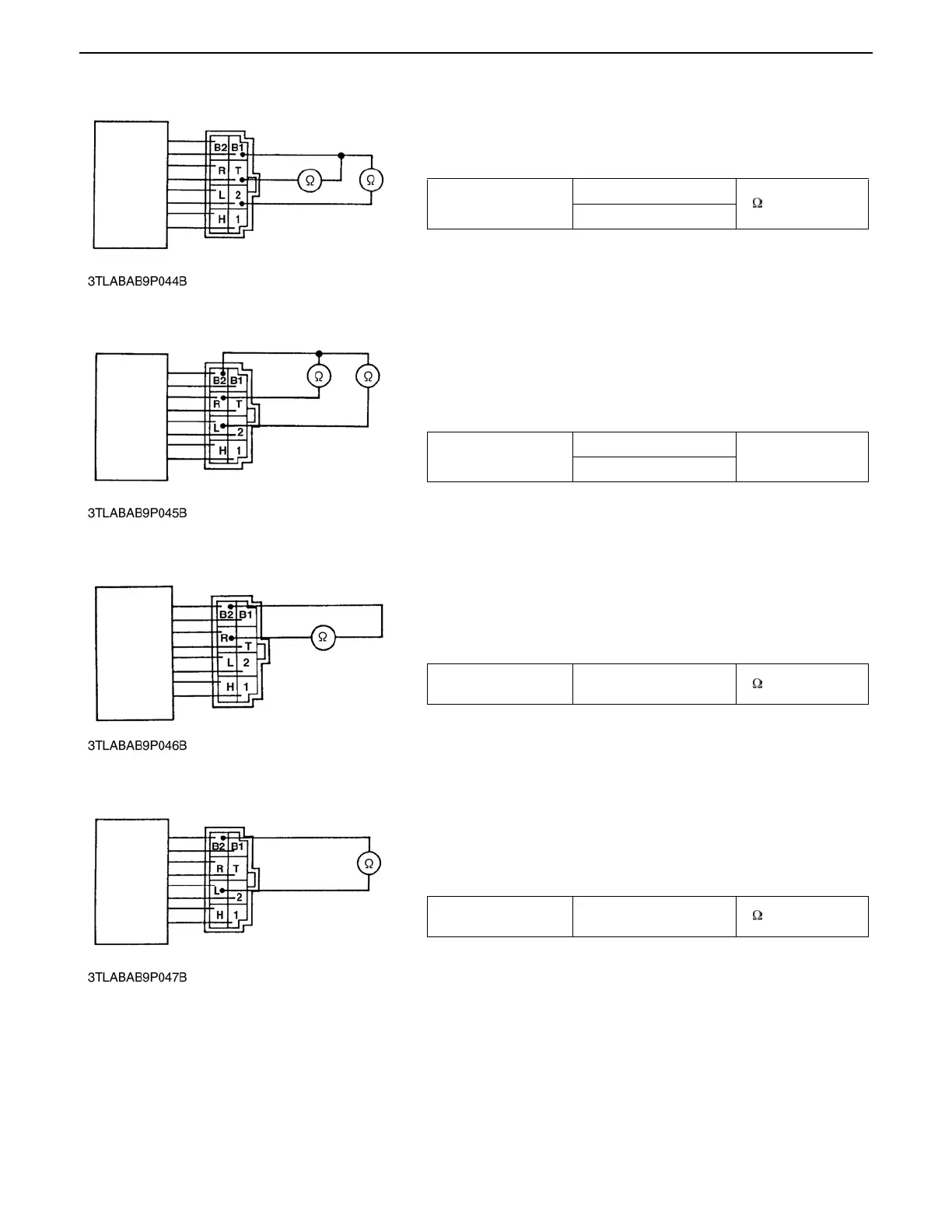

Resistance (Switch at
LOW-BEAM position)
B1 terminal - T terminal
0
B1 terminal - 2 terminal
0000001778E
Resistance (Switch at
OFF position)
B2 terminal - R terminal
Infinity
B2 terminal - L terminal
0000001779E
Resistance (Switch at R
position)
B2 terminal - R terminal 0
0000001780E
Resistance (Switch at L
position)
B2 terminal - L terminal 0
0000001781E
