16. STARTING SYSTEM
16-4
AGILITY CITY 125
ASSEMBLY

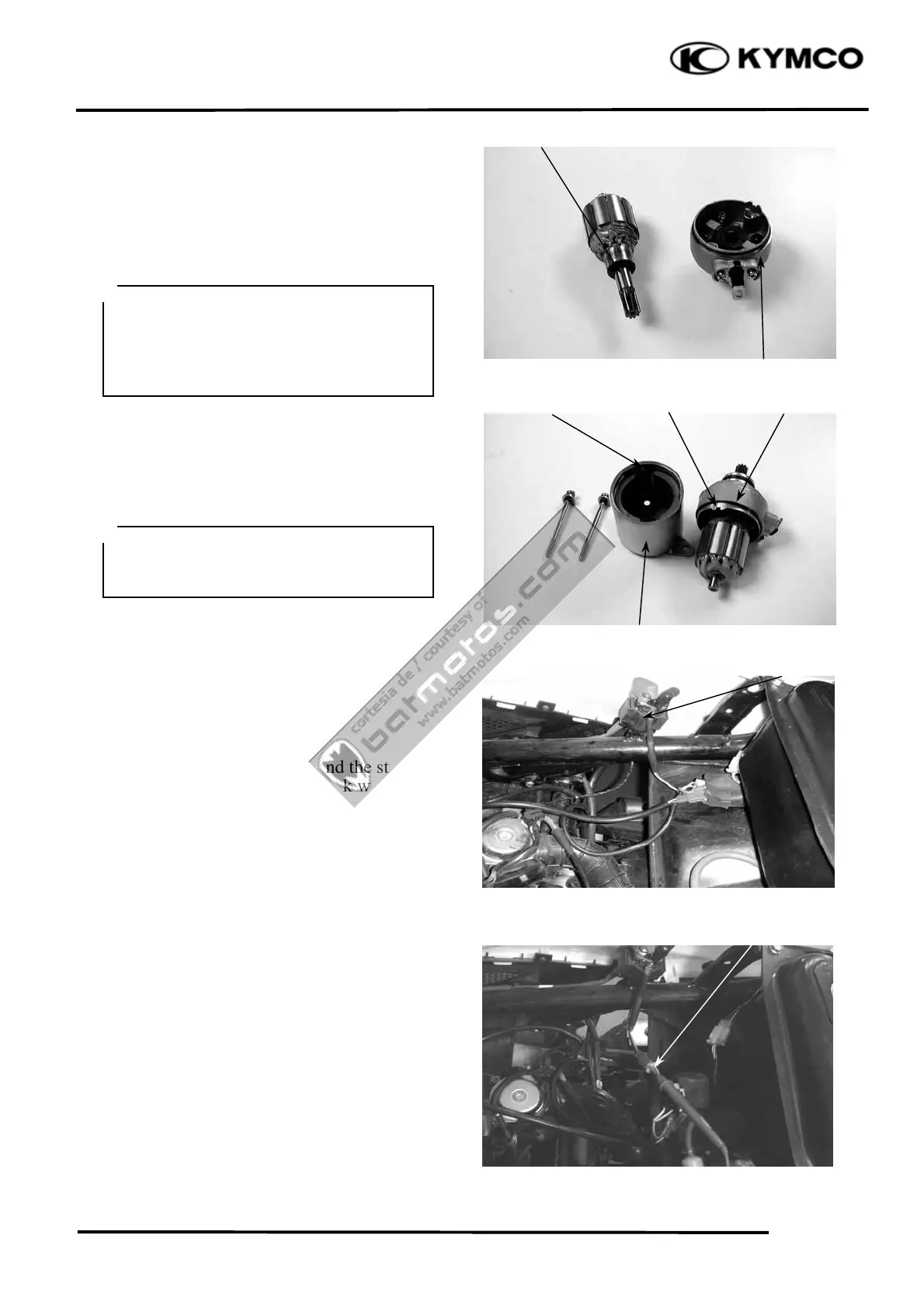

Apply grease to the dust seal in the front
cover.
Install the brushes onto the brush holders.
Apply a thin coat of grease to the two ends of
the armature shaft.
Insert the commutator into the front cover.
Install a new O-ring to the front cover.
Install the starter motor case, aligning the tab
on the motor case with the groove on the
front cover.
Tighten the starter motor case screws.
STARTER RELAY
INSPECTION
Remove the frame body cover.
Turn the ignition switch ON and the starter
relay is normal if you hear a click when the
starter button is depressed.
If there is no click sound:
xInspect the starter relay voltage
xInspect the starter relay ground circuit
xInspect the starter relay operation
STARTER RELAY VOLTAGE
INSPECTION
Place the motorcycle on its main stand.
Measure the voltage between the starter relay
connector green/yellow wire (-) and engine
ground.
Turn the ignition switch ON and the battery
voltage should be normal when the brake
lever is fully applied.
If the battery has no voltage, inspect the stop
switch continuity and cable.
Front Cove
Groove
Commutato
Motor Case
O-rin
Tab
xBe careful not to damage the brush and
armature shaft mating surfaces.
xWhen installing the commutator, the
armature shaft should not damage the
dust seal lip.
＊
When assembling the front cover and
motor case, slightly press down the
armature shaft to assemble them.
＊
Green/Yellow Wire
Starter Rela
