3. INSPECTION/ADJUSTMENT
3-8
SUPER8 50

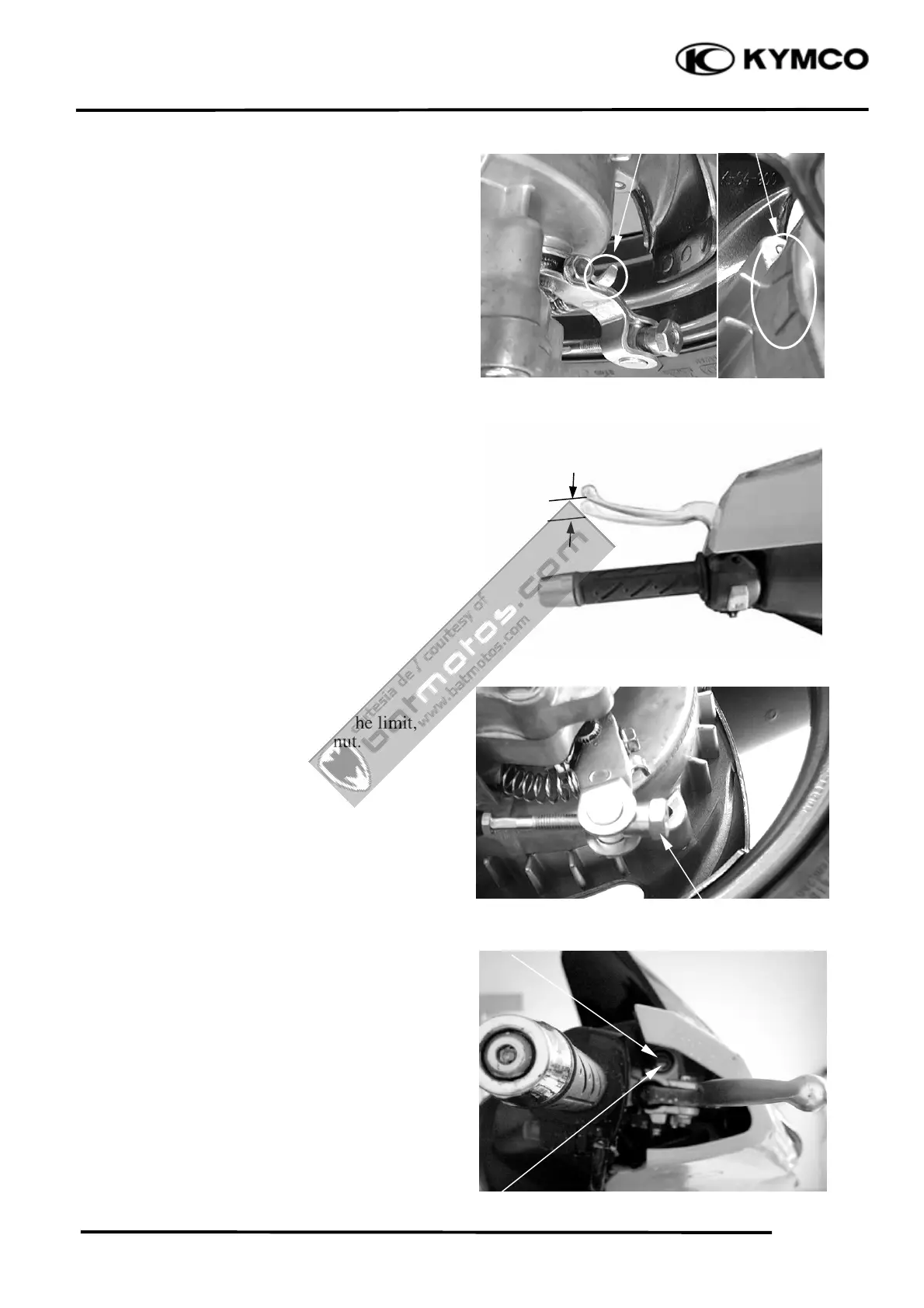

BRAKE SHOE
Replace the brake shoes if the arrow on the
wear indicator plate aligns with the punch
mark on the brake panel when the brake is
fully applied.
Refer to page 12-7 and 13-3 for brake shoe
replacement.
REAR BRAKE
Measure the rear brake lever free play.
Free Play: 10Д20mm
BRAKE ADJUSTING NUT
If the free play do not fall within the limit,
adjust by turning the adjusting nut.
FRONT/REAR BRAKE FLUID
Turn the steering handlebar upright and check
if the rear brake fluid level should be between
the upper and lower level lines.
Specified Brake Fluid: DOT-4f
Arrows
Adjusting Nu
Punch Mark
U
er Line
Lower Line
