5. FUEL SYSTEM
5-10
AGILITY CITY 125

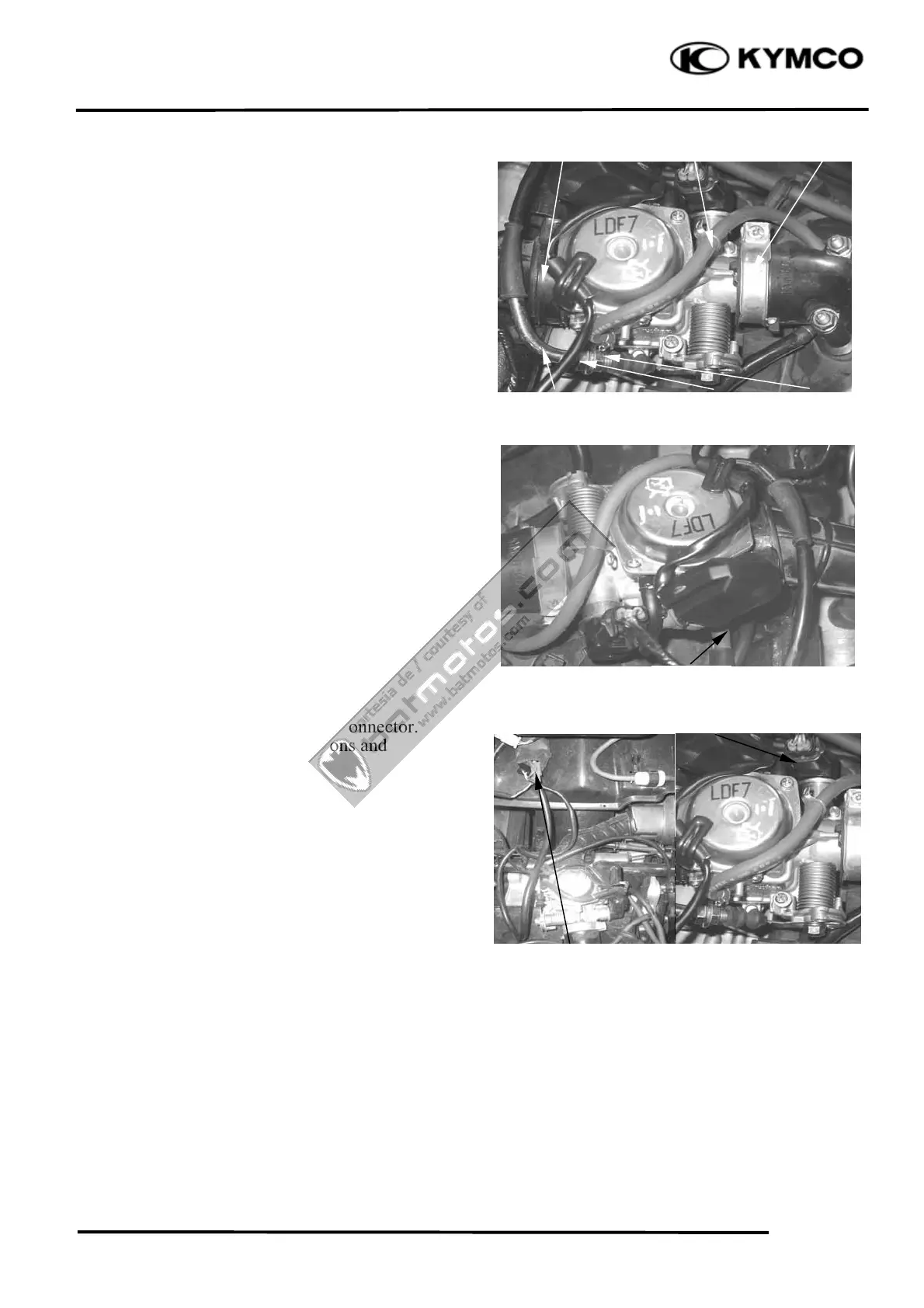

CARBURETOR INSTALLATION
Tighten the drain screw.
Install the carburetor onto the intake
manifold, aligning the tab on the carburetor
with the cutout in the intake manifold.
Tighten the intake manifold band screw.
Install the air cleaner connecting tube and
tighten the band screw.
Connect the throttle cable to the throttle
wheel on the carburetor.
Tighten the lock nut.
Connect the fuel tube and vacuum tube to
the carburetor.
Connect the auto bystarter wire connector.
Perform the following inspections and
adjustments:
-Throttle grip free play (
Ö
3-3)
-Carburetor idle speed (
Ö
3-5)
Connect the auto TPS unit wire connector.
Auto B
starter Wire Connecto
Fuel Tube
Adjustin
Nu
Intake Manifold
Band
Air Cleaner Connectin
Tube Band
Throttle Cable
Lock Nu
Vacuum Tube
TPS Nui
