5. FUEL SYSTEM
5-4
AGILITY CITY 125

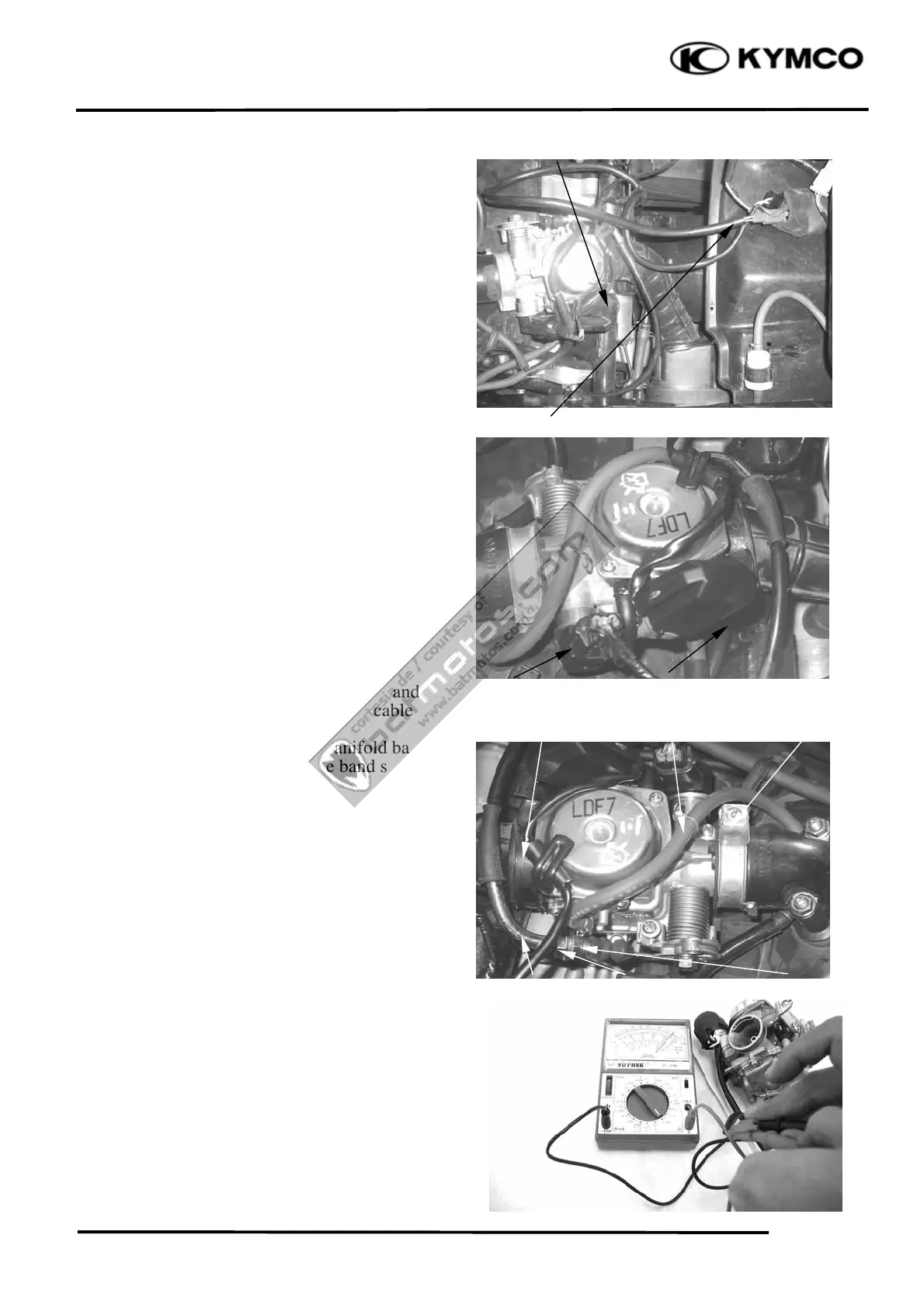

CARBURETOR REMOVAL
Remove the frame right side cover. (
Ö
2-4)
Disconnect the auto bystarter wire
connector.
Remove the met-in box. (
Ö
2-3)
Loosen the drain screw and drain the fuel
from the float chamber.
Disconnect the fuel tube and vacuum tube at
the carburetor.
Disconnect the TPS coupler and remove the
TPS unit
Loosen the throttle cable adjusting nut and
lock nut, and disconnect the throttle cable
from the carburetor.
Loosen the carburetor intake manifold band
and air cleaner connecting tube band screws
and then remove the carburetor.
AUTO BYSTARTER
OPERATION INSPECTION
Measure the resistance between the auto
bystarter wire terminals.
Resistance:10: max. (10 minutes
minimum after stopping the engine)
If the reading is not within the limit, replace
the auto bystarter with a new one.
Adjustin
g
Nu
t
Fuel Tube
Intake Manifold
Band
Air Cleaner Connectin
g
Tube Band
Throttle Cable
Lock Nu
t
A
uto Bystarter W
i
re
A
uto Bystarte
r
Vacuum Tube
TPS Uni
t
