4. LUBRICATION SYSTEM
4-2
AGILITY CITY 125
Bolts
Pulser Coil
Ri
ht Crankcase Cove
Stato

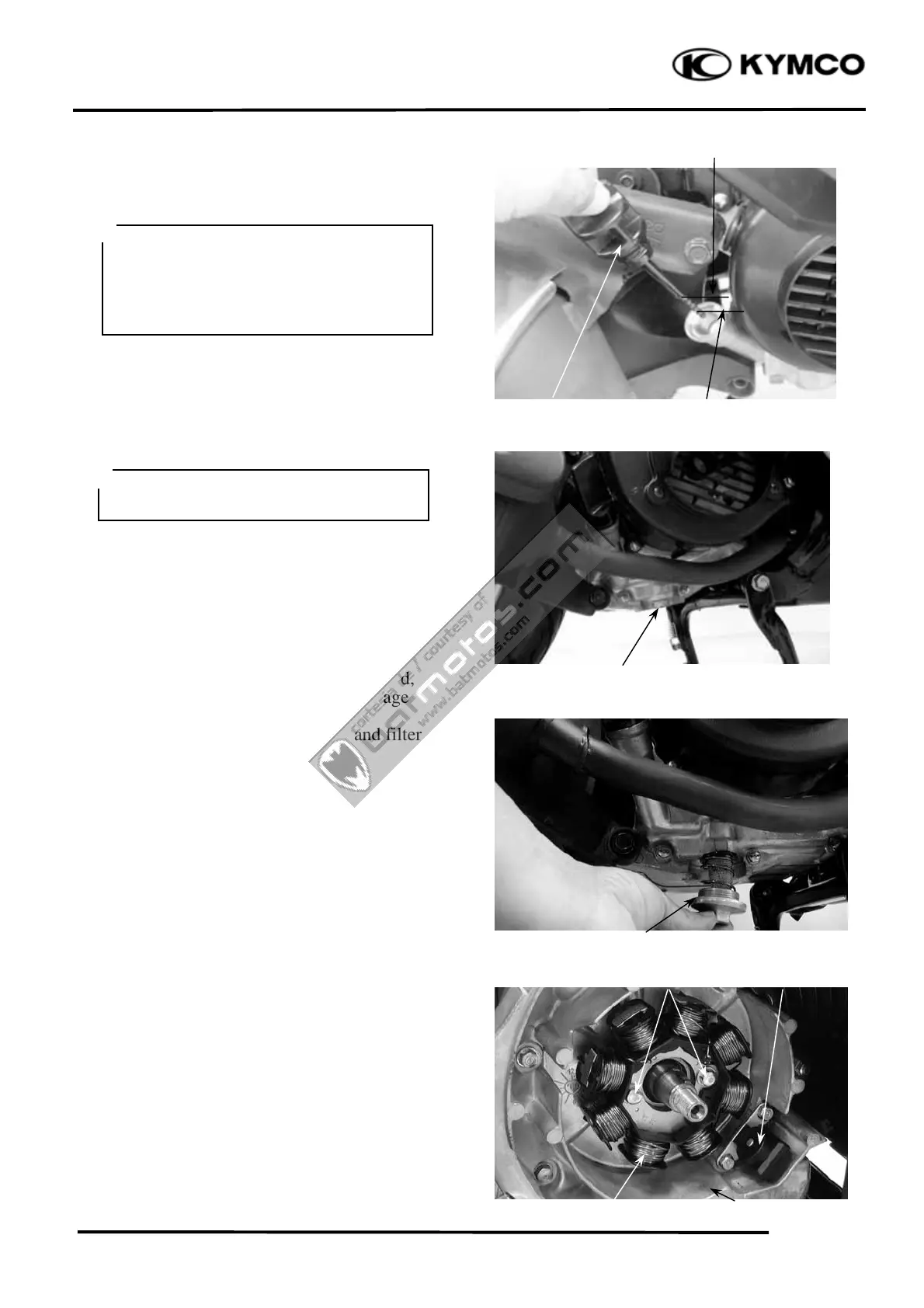

ENGINE OIL/OIL FILTER
OIL LEVEL
Remove the oil dipstick and check the oil
level with the oil dipstick.
If the level is near the lower level, fill to the
upper level with the specified engine oil.
OIL CHANGE
Remove the oil filter screen cap located on
the bottom of the engine to drain the engine
oil thoroughly.
After the oil has been completely drained,
check the filter screen O-ring for damage
and replace if necessary.
Install the oil filter screen, spring and filter
screen cap.
Torque: 1.5kg-m
Fill with the specified SAE15W40#, API: SG
engine oil to the proper level.
Oil Capacity: At disassembly : 0.90 liter
At change : 0.80 liter
Check for oil leaks and then start the engine
and let it idle for few minutes.
Recheck the oil level.
OIL PUMP
REMOVAL
Remove the A.C. generator flywheel.
Remove the nine right crankcase cover bolts
and the right crankcase cover.
Oil Dipstick
O-ring
Oil Filter Screen Cap
xPlace the motorcycle upright on level
ground for engine oil level check.
xRun the engine for 2Д3 minutes and
check the oil level after the engine is
stopped for 2Д3 minutes.
°
The engine oil will drain more easily
while the engine is warm.
°
Lower Level
Upper Level
