3. INSPECTION/ADJUSTMENT
3-3
AGILITY CITY 125

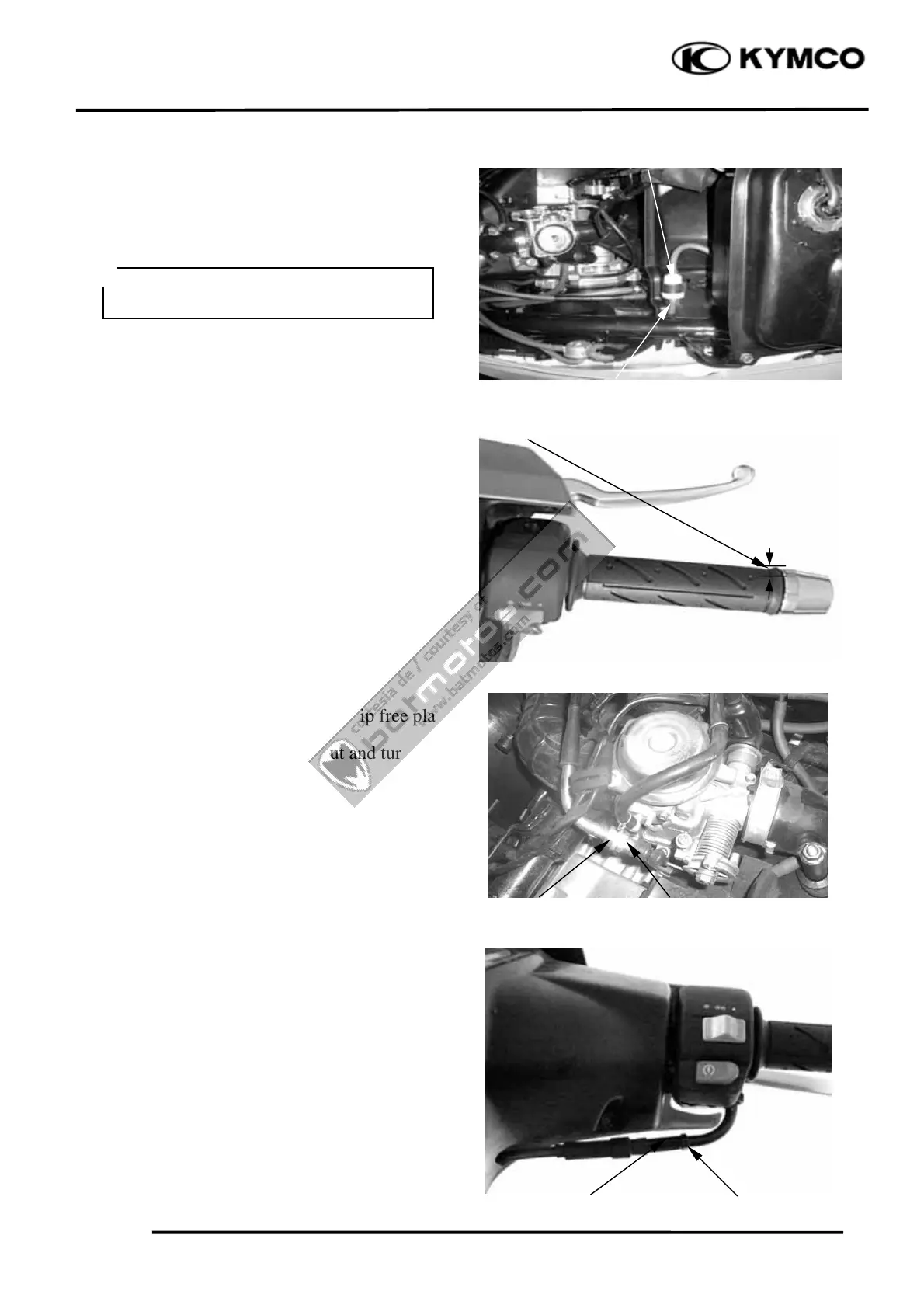

FUEL FILTER
Remove the met-in box. (
Ö
2-3)
Check the fuel lines and replace any parts
which show signs of deterioration, damage or
leakage.
THROTTLE OPERATION
Check the throttle grip for smooth movement.
Measure the throttle grip free play.
Free Play: 2Д6mm
Major adjustment of the throttle grip free play
is made at the carburetor side.
Adjust by loosening the lock nut and turning
the adjusting nut.
Minor adjustment is made with the adjusting
nut at the throttle grip side.
Slide the rubber cover out and adjust by
loosening the lock nut and turning the
adjusting nut.
Lock Nu
Adjusting Nu
Fuel Filte
Do not smoke or allow flames or sparks
in your working area.
＊
Fuel Line
Lock Nu
Adjusting Nu
2Д6m
