5. FUEL SYSTEM
5-8
AGILITY CITY 125
FLOAT CHAMBER
DISASSEMBLY

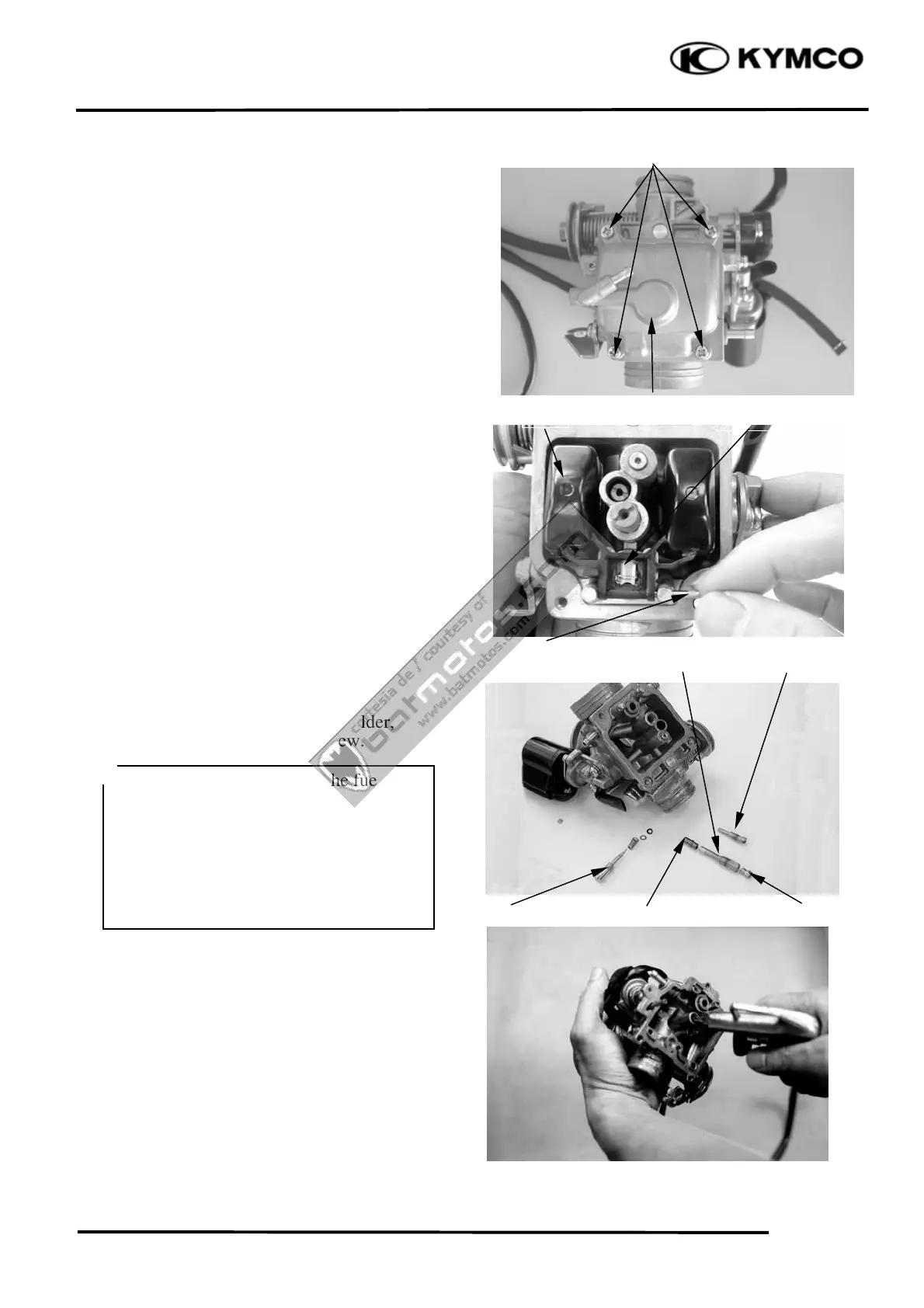

Remove the three float chamber screws and
the float chamber.
Loosen the float pin screw.
Remove the float pin, float and float valve.
Remove the main jet, needle jet holder,
needle jet, slow jet and pilot screw.
Clean the removed fuel jets with detergent
oil and blow them open with compressed
air.
Blow compressed air through all passages
of the carburetor body.
Pilot Screw
Float Valve
Floa
Float Pin
Float Chambe
Slow Je
Main Je
eedle Jet Holde
eedle Je
Screws
xBe careful not to damage the fuel jets
and pilot screw.
xBefore removing, turn the pilot screw
in and carefully count the number of
turns until it seats lightly and then
make a note of this.
xDo not force the pilot screw against its
seat to avoid seat damage.
＊
