5. FUEL SYSTEM
5-13
AGILITY CITY 125
FUEL UNIT

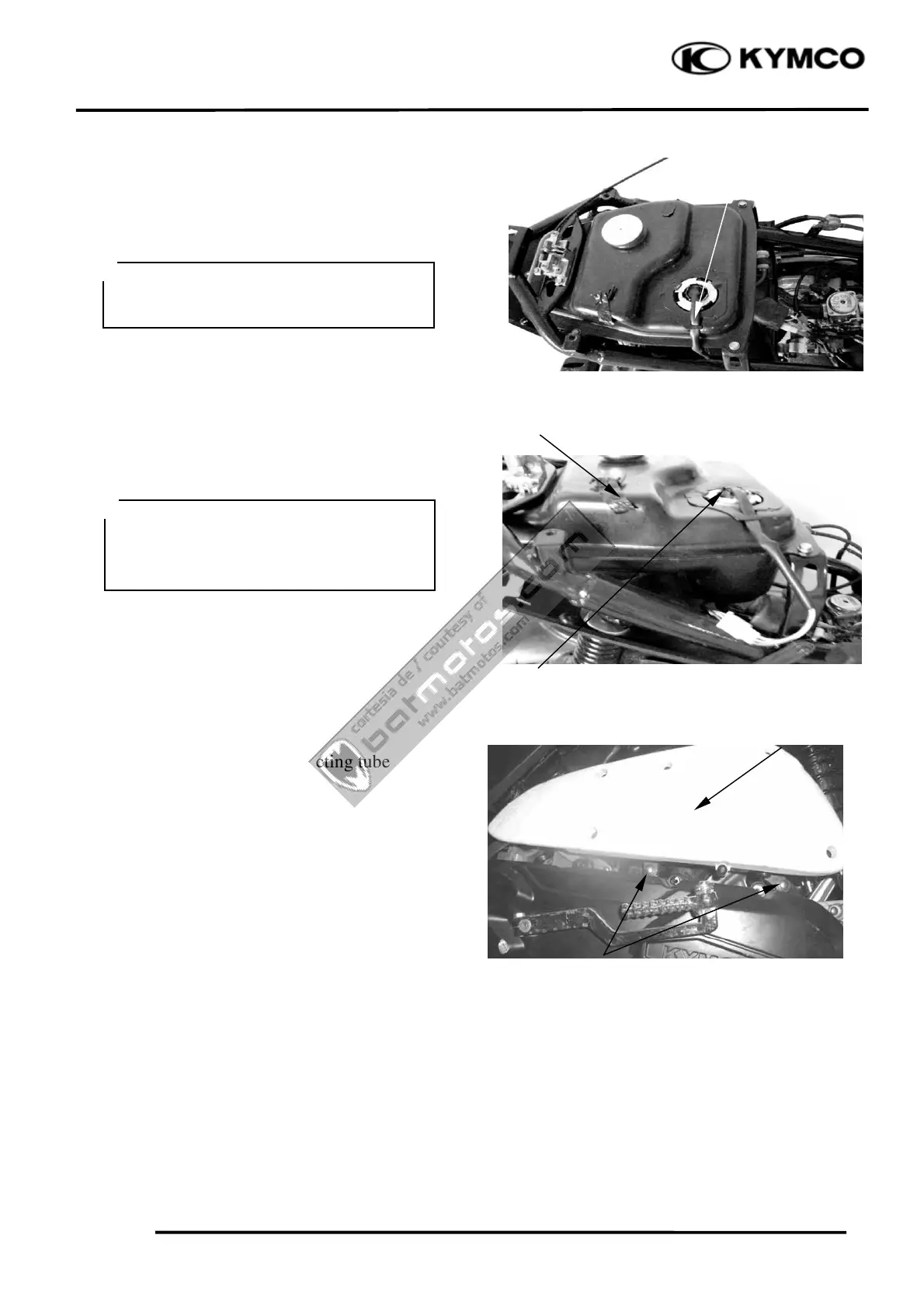

REMOVAL
Remove the related parts.
Disconnect the fuel unit wire connector.
Turn the fixed plate on the fuel unit,take the
fuel unit off.
INSTALLATION
Inspet if the fuel unit is damaged,or harden.
Assemble the fuel unit in the reverse order
of disassembly.
AIR CLEANER
Loosen the air cleaner connecting tube band
screw.
Disconnect the clinhead cover breather tube
from the air cleaner.
Remove the two bolts and air cleaner case.
Fuel Unit Wire
Fuel Unit
Fuel Tank
Do not bend the float arm on the fuel
unit,otherwise the figure on the fuel
meter will not correct.
＊
xAlign the groove on the fuel unit with
the angle on the fuel tank.
xInspect if the fuel tank leaked after
installing and filling the gasoling.
＊
olts
air cleane
