7. CYLINDER HEAD/VALVES
7-3
AGILITY CITY 125

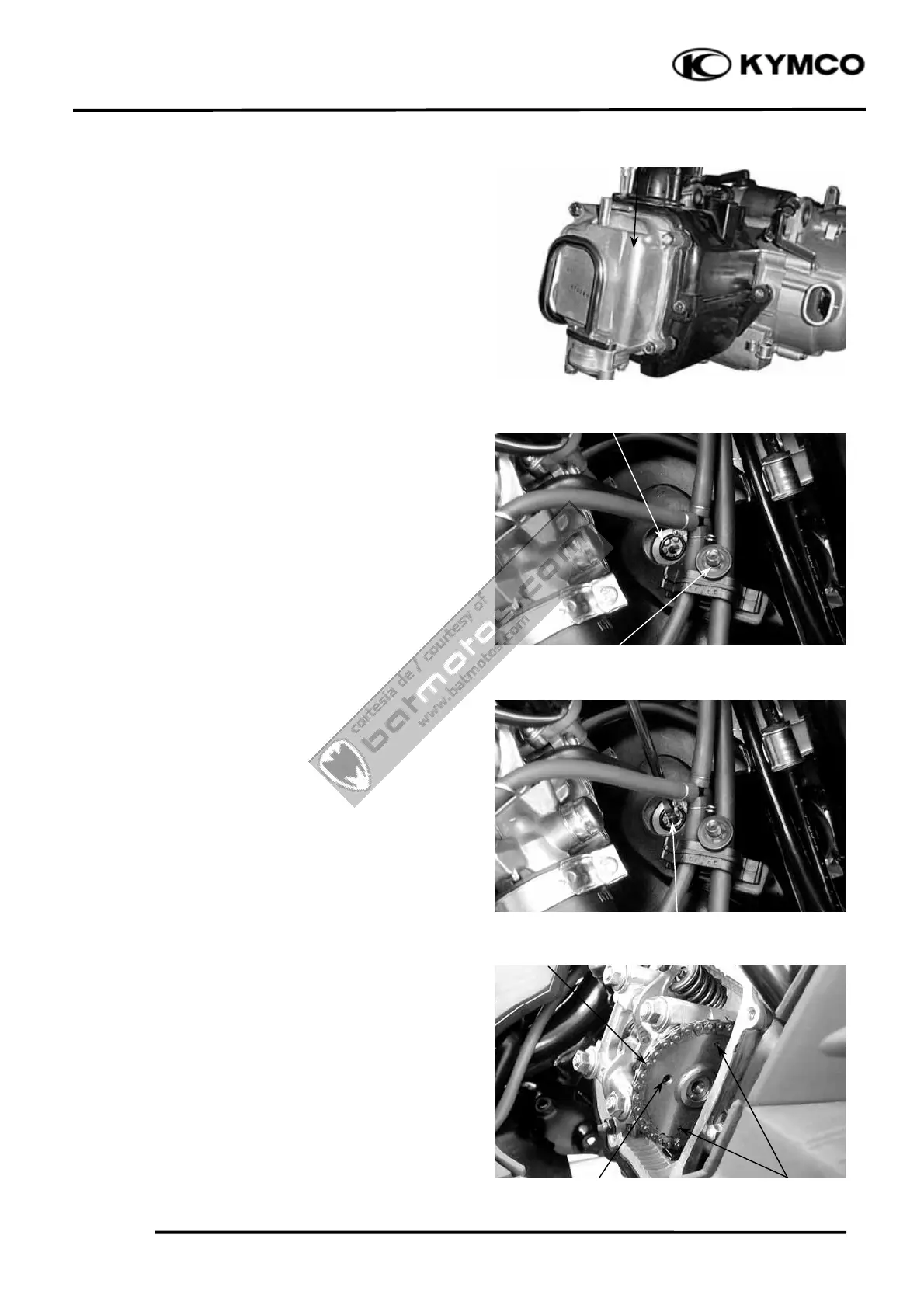

CAMSHAFT REMOVAL
Remove the center cover.
Remove the four cylinder head cover bolts
to remove the cylinder head cover.
Remove the two nuts attaching the
secondary air inlet tube.
Remove the cam chain tensioner cap screw
and the O-ring.
Turn the cam chain tensioner screw
clockwise to tighten it.
Turn the flywheel counterclockwise so that
the “T” mark on the flywheel aligns with
the index mark on the crankcase to bring the
round hole on the camshaft gear facing up
to the top dead center on the compression
stroke.
Cylinder Head Cove
O-ring
Tensioner Screw
Round Hole
Camshaft Gea
Screw
Punch Marks
