6. ENGINE REMOVAL/INSTALLATION
6-4
AGILITY CITY 125

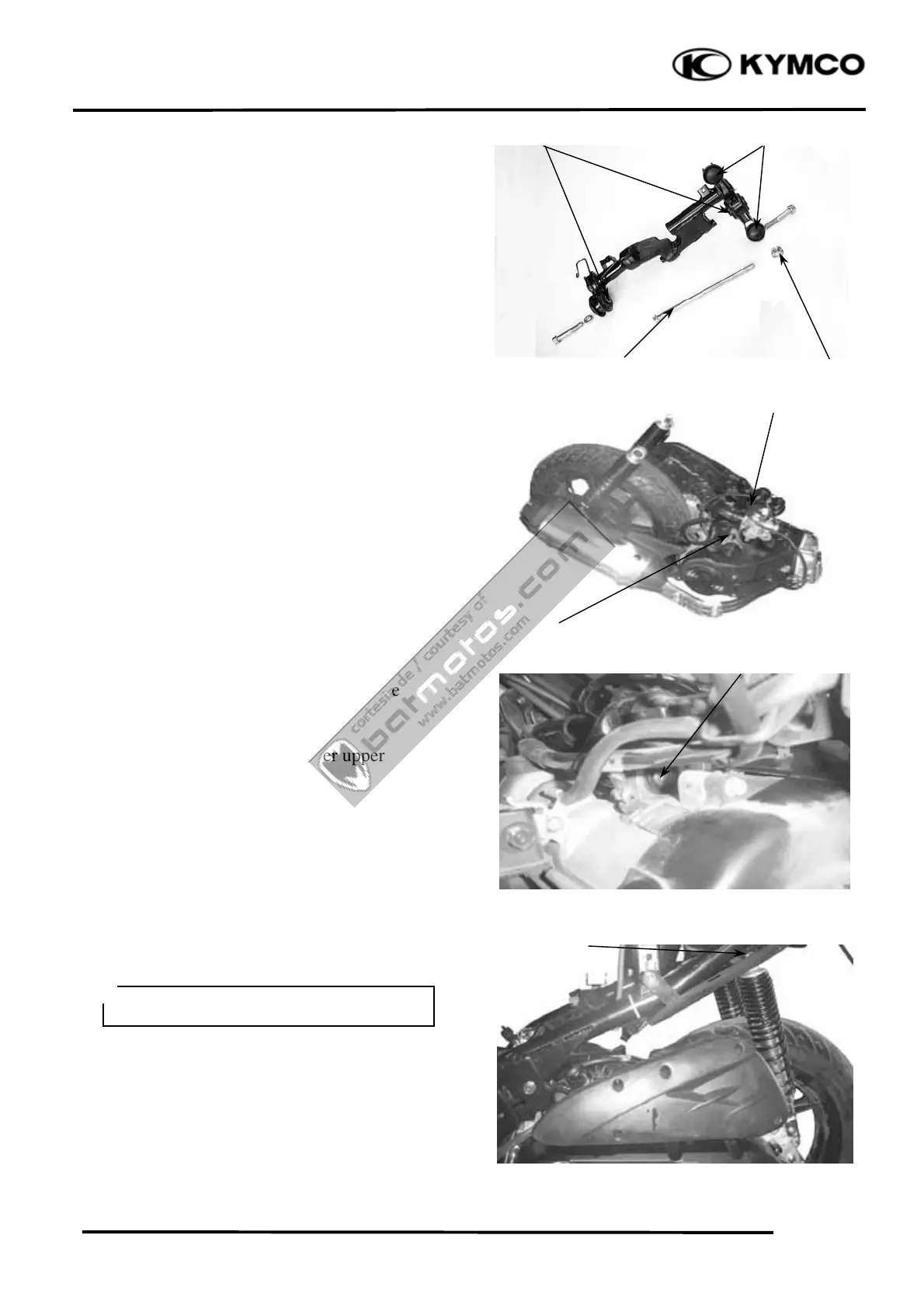

Inspect the engine hanger bushings and
stopper rubbers for wear or damage.
ENGINE HANGER BRACKET
INSTALLATION
Install the engine hanger bracket to the
engine.
Install the engine hanger bracket bolt and
tighten the nut.
ENGINE INSTALLATION
Install the engine and tighten the engine
mounting bolt.
Torque: 7.0kg-m
Tighten the rear shock absorber upper
mount bolt.
Torque: 4.0kg-m
Install the removed parts in the reverse
order of removal.
After installation, inspect and adjust the
following:
xThrottle grip free play.
xRear brake adjustment.
Bushings
En
g
ine Mountin
g
Bol
t
Bol
t
Stopper Rubbers
Rear Shock Absorber Lower Mount Bol
t
N
u
t
Engine Hanger Bracke
t
N
u
t
Route the wires and cables properly.
＊
