KYMCO PEOPLE S 125 Service Manual

17 . LIGHTS/INSTRUMENTS/SWITCHES
17-3
PEOPLE S 4T

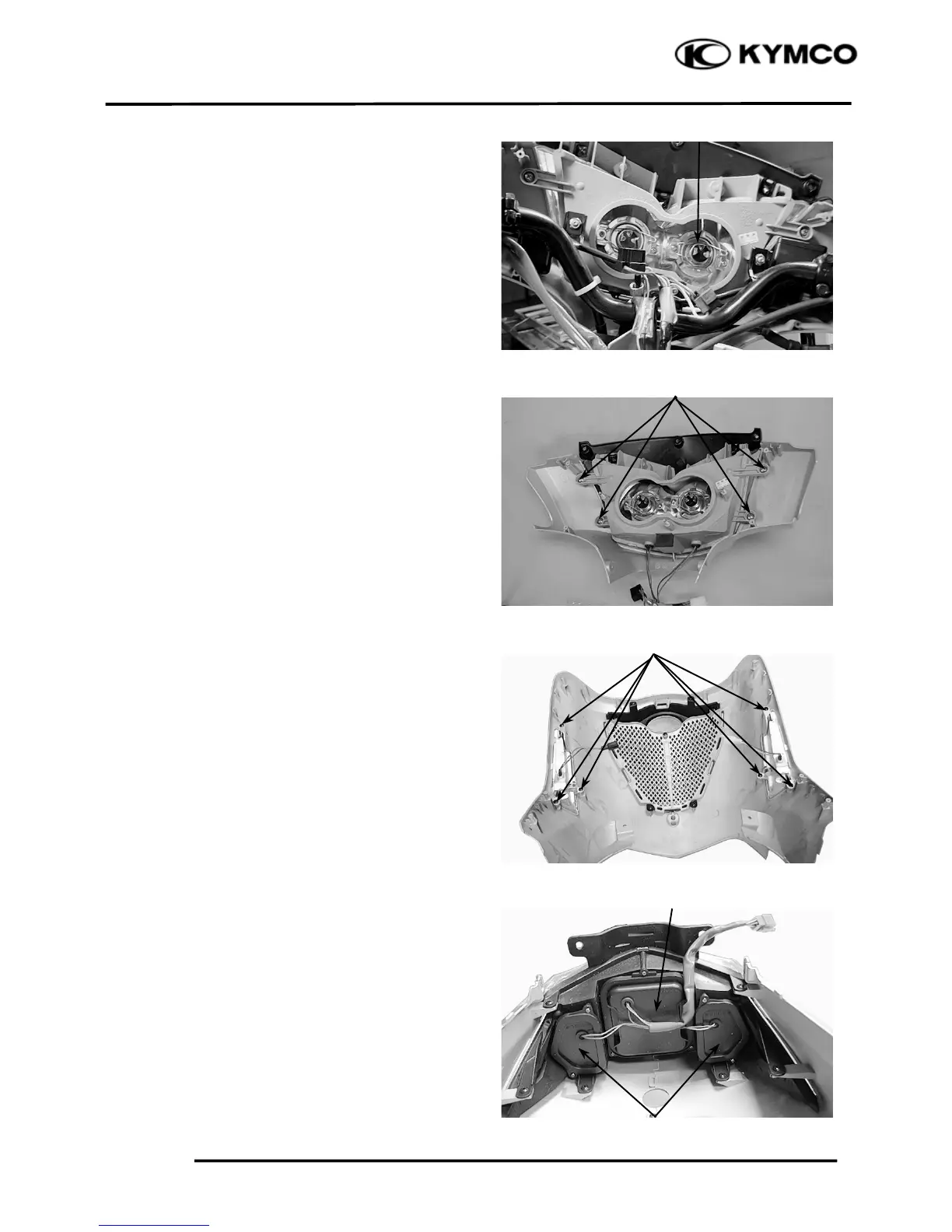

HEADLIGHT
BULB REPLACEMENT
Remove the handlebar front cover. (
Ö
2)
Remove the rubber boot from the bulb socket.
Remove the bulb socket by turning it counter-
clockwise.
Remove the bulb for replacement.
Install a new bulb, aligning the groove on the
bulb socket with the tab on the bulb.
Install the bulb socket.
Install the rubber boot.
Install the front cover. (
Ö
2)
HEADLIGHT REMOVAL
Remove the handlebar front cover. (
Ö
2)
Remove the four screws attaching the
headlight.
Remove adjust the headlight beam bolt.
The installation sequence is the reverse of
removal.
After installation, adjust the headlight beam.
(
Ö
3-9)
FRONT TURN SIGNAL LIGHT REMOVAL
Remove the front cover. (
Ö
2)
Remove the turn signal base screws.
The installation sequence is the reverse of
removal.
TAIL LIGHT/REAR TURN SIGNAL LIGHT
REPLACEMENT
Remove the body cover. (
Ö
2)
Remove the tali light cover screws.
Remove the turn signal light cover screws.
The installation sequence is the reverse of
removal.
Screw
Bulb Socket
Screws
Turn Signal Light Cove
r
Tail Light Cove
r

KYMCO PEOPLE S 125 Specifications

General

Displacement	124.6 cc
Front Suspension	Telescopic Fork
Cooling System	Air Cooled
Max Torque	10.4 Nm @ 6500 rpm
Transmission	CVT
Front Brake	Disc
