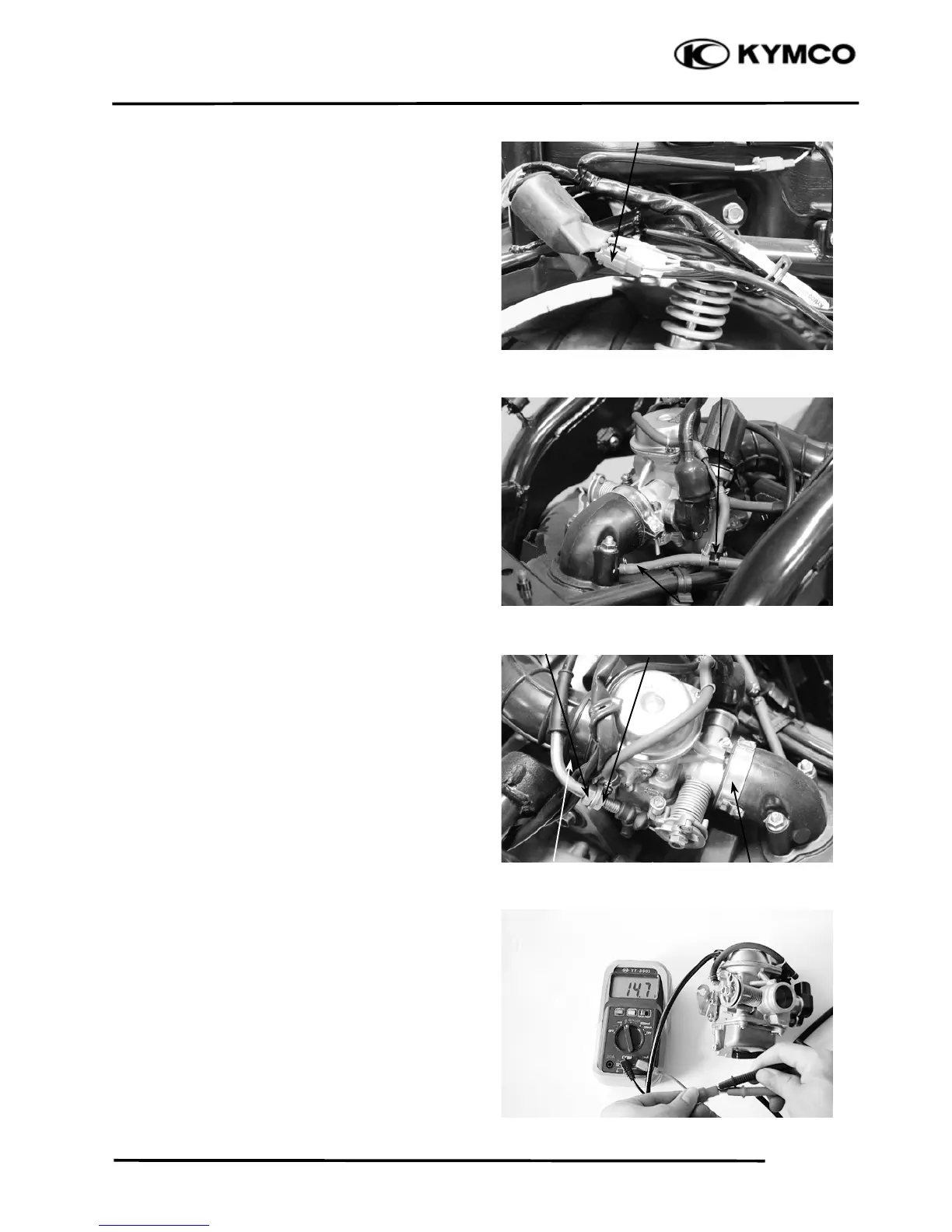

KYMCO PEOPLE S 125 Service Manual

5. FUEL SYSTEM
5-4
PEOPLE S 4T
CARBURETOR REMOVAL
Remove the frame body cover. (
Ö
2)
Disconnect the auto bystarter wire connector.
Loosen the drain screw and drain the fuel
from the float chamber.
Disconnect the fuel tube and vacuum tube at
the carburetor.
Loosen the throttle cable adjusting nut and
lock nut, and disconnect the throttle cable
from the carburetor.
Loosen the carburetor intake manifold band
and air cleaner connecting tube band screws
and then remove the carburetor.
AUTO BYSTARTER
OPERATION INSPECTION
Measure the resistance between the auto
bystarter wire terminals.
Resistance: (50cc) 5Ω,(125/200cc) 15Ω max.
(10 minutes minimum after stopping the
engine)
If the reading is not within the limit, replace
the auto bystarter with a new one.
A
uto Bystarter Wire
A
djusting Nut
Fuel Tube
Intake Manifold Band
A
ir Cleaner Connecting
Tube Band
Vacuum Tube
Lock Nut
