7. CYLINDER HEAD/VALVES
7-9
PEOPLE S 4T

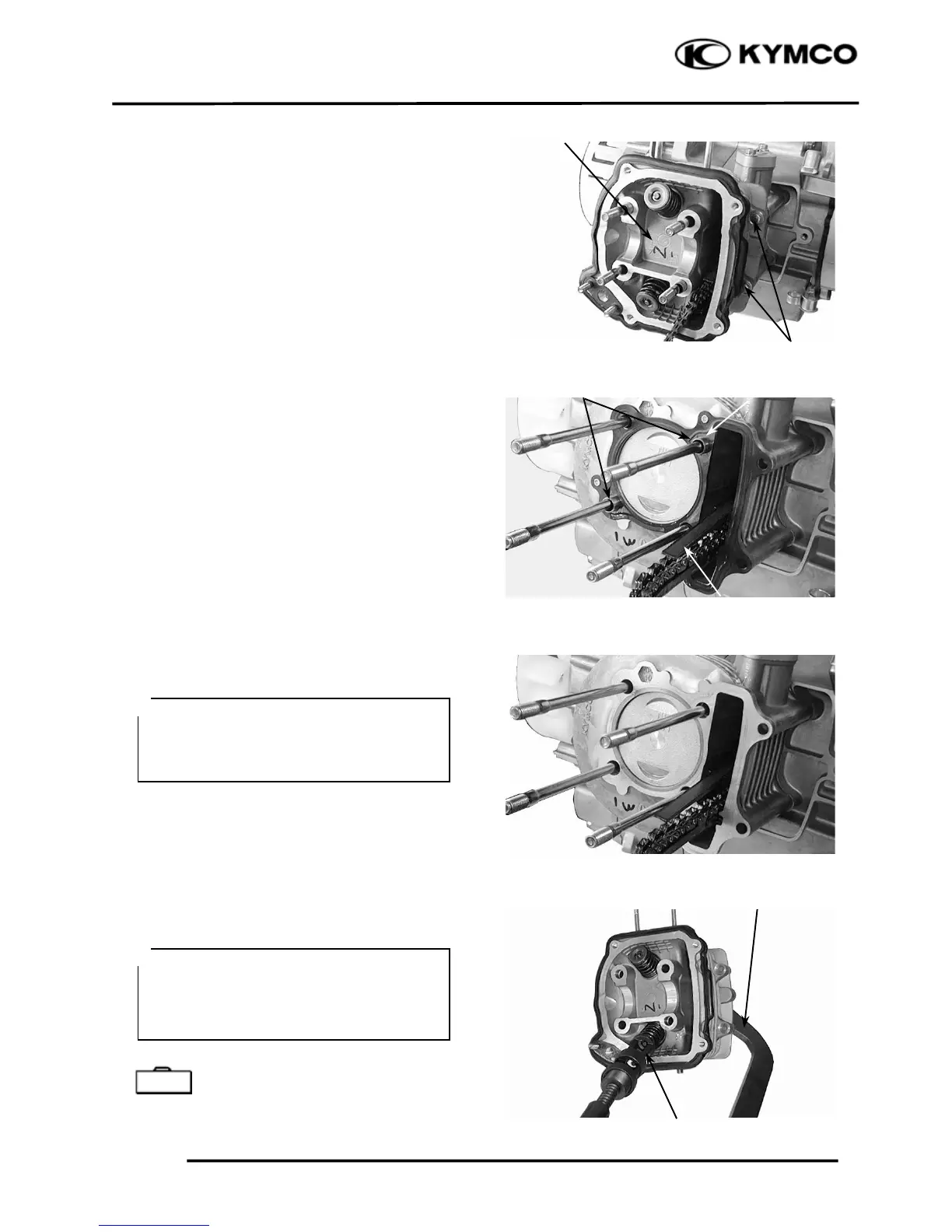

Remove the two cylinder head bolts.
Remove the cylinder head.
Remove the dowel pins and cylinder head
gasket.
Remove the cam chain guide.
Remove all gasket remnants from the
cylinder surface.
CYLINDER HEAD DISASSEMBLY
Remove the valve spring cotters, retainers,
springs, spring seats and valve stem seals
using a valve spring compressor.
Valve Spring Compressor
Valve Spring Compressor Attachment
Valve Spring Compresso
Cylinder Head
• Be sure to compress the valve springs
with a valve spring compressor.
• Mark all disassembled parts to ensure
correct reassemble.
＊
Dowel Pins
• Avoid damaging the cylinder contact
surface.
• Be careful not to drop any gasket
remnants into the engine.
＊
Cam Chain Guide
Cylinder Head Gasket
Special
Bolts
Valve Spring Compressor Attachment
