5. FUEL SYSTEM
5-7
PEOPLE S 4T

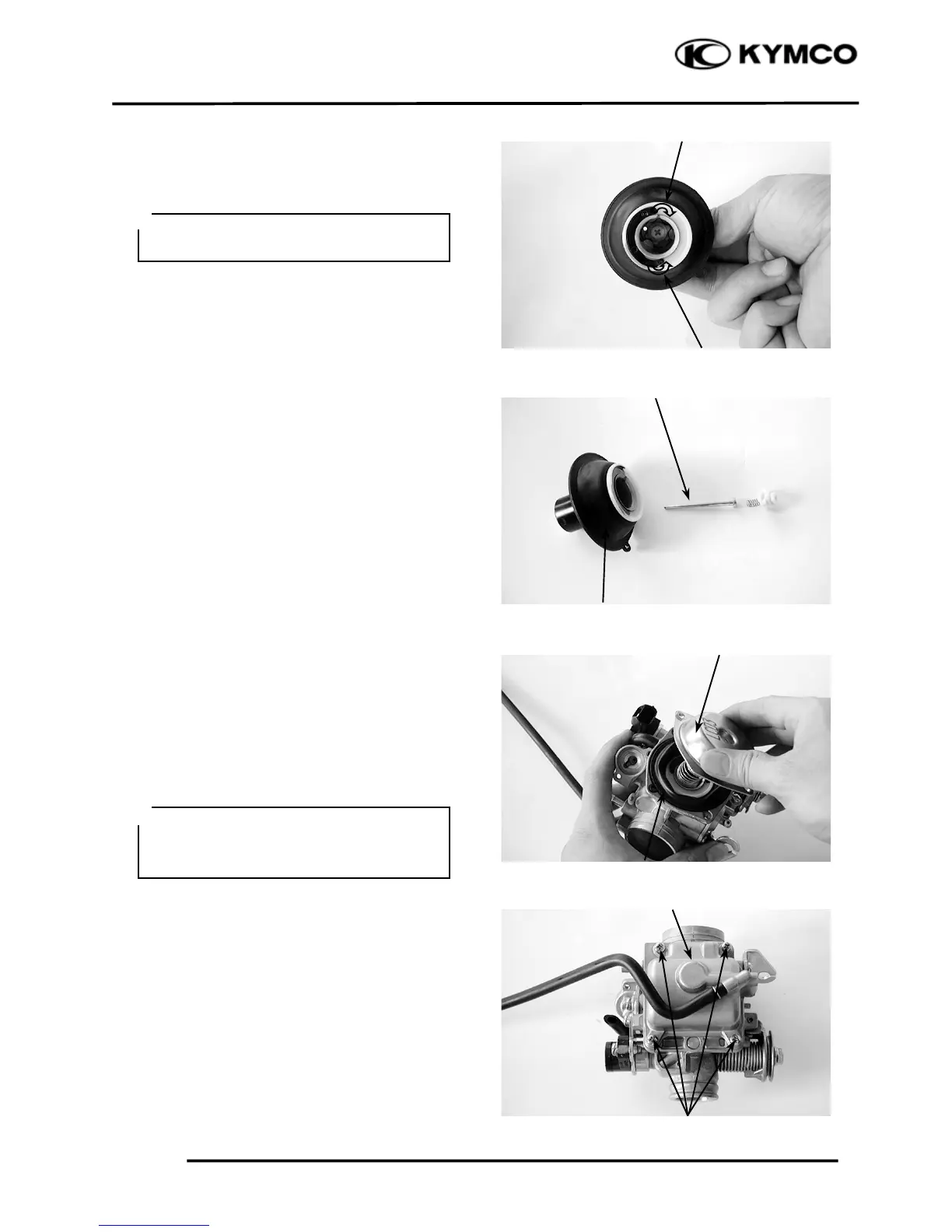

Push the needle holder in and turn it left to
remove the needle holder.
Remove the spring and jet needle from the
piston.
INSPECTION
Inspect the needle for stepped wear.
Inspect the vacuum piston for wear or
damage.
Inspect the diaphragm for deterioration and
tears.
ASSEMBLY
Install the vacuum piston/diaphragm in the
carburetor body and align the tab on the
diaphragm with the groove in the carburetor
body.
Install the spring.
Install the vacuum chamber cover and tighten
it with the two screws.
FLOAT CHAMBER
DISASSEMBLY
Remove the four float chamber screws and
the float chamber.
Vacuum Chamber Cove
r
• Be careful not to damage the
diaphragm.
• Hold the vacuum piston while
ti ht i th h b
＊
Be careful not to damage the vacuum
diaphragm.
＊
Vacuum Diaphragm
Float Chambe
r
Jet Needle
Screw
Vacuum Diaphragm
Install
Remove
