KYMCO PEOPLE S 125 Service Manual

5. FUEL SYSTEM
5-6
PEOPLE S 4T
AIR CUT-OFF VALVE
DISASSEMBLY
Disconnect the vacuum tube from the air cut-
off valve.
Remove the two screws to remove the air
cut-off valve cover, spring and vacuum
diaphragm.
ASSEMBLY
Install the vacuum diaphragm onto the
carburetor.
Install the spring and air cut-off valve cover
and then tighten the two screws.

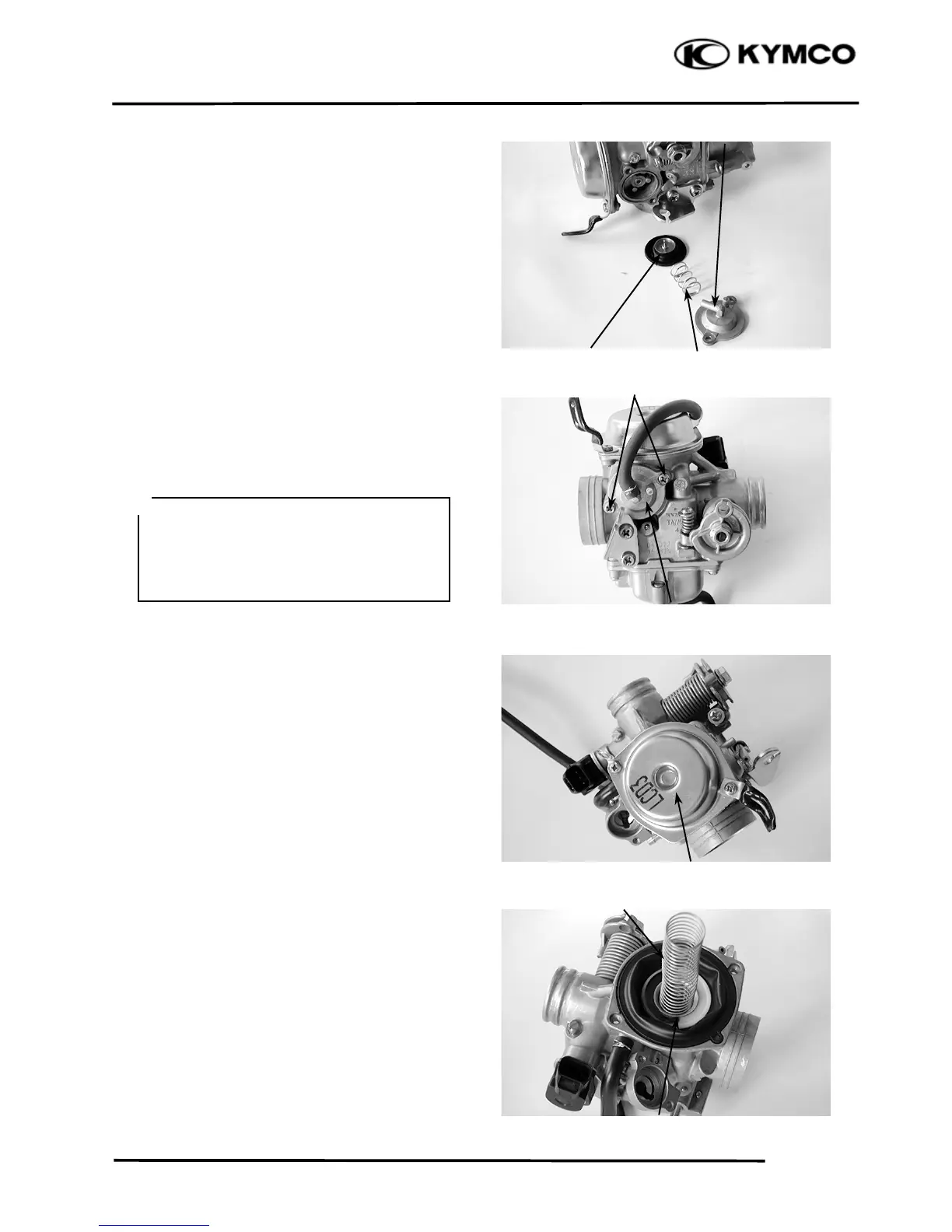

VACUUM CHAMBER
DISASSEMBLY
Remove the two vacuum chamber cover
screws and the cover.
Remove the spring and vacuum diaphragm/
piston.
Spring
Screws
Vacuum Diaphragm
• Be sure to set the vacuum diaphragm
lip into the groove on the carburetor.
• When installing the air cut-off valve
cover, make sure that the vacuum
diaphragm is properly installed.
＊
Vacuum Diaphragm/Piston
A
ir Cut-off valve Cove
r
Spring
Vacuum Chamber Cove
r
A
ir Cut-off valve Cove
r
