Lexmark CX310dn Service Manual

Operator panel removal (for CX310 and CX410 models only)
Installation warning: Replace one of the following components, and perform a POR before replacing a second
component. Never replace both of the components without performing a POR after installing each one, or the
printer may be rendered inoperable:
• Operator panel assembly
• Controller board
Note: The UICC card is part of the operator panel.
Note: The following parts (FRUs) can be accessed from this section:
• Operator panel (one for each CX310 and CX410)
• Display and PCBA (CX310)
• Display (CX410)
• UICC PCBA (CX410)
• User interface support bracket (common to CX310 and CX410)
• Front operator panel cover (common to CX310 and CX410)
• Upper front (operator) cover (common to CX310 and CX410)
• Speaker (CX410)
1 Lift the flatbed scanner assembly on the right side.

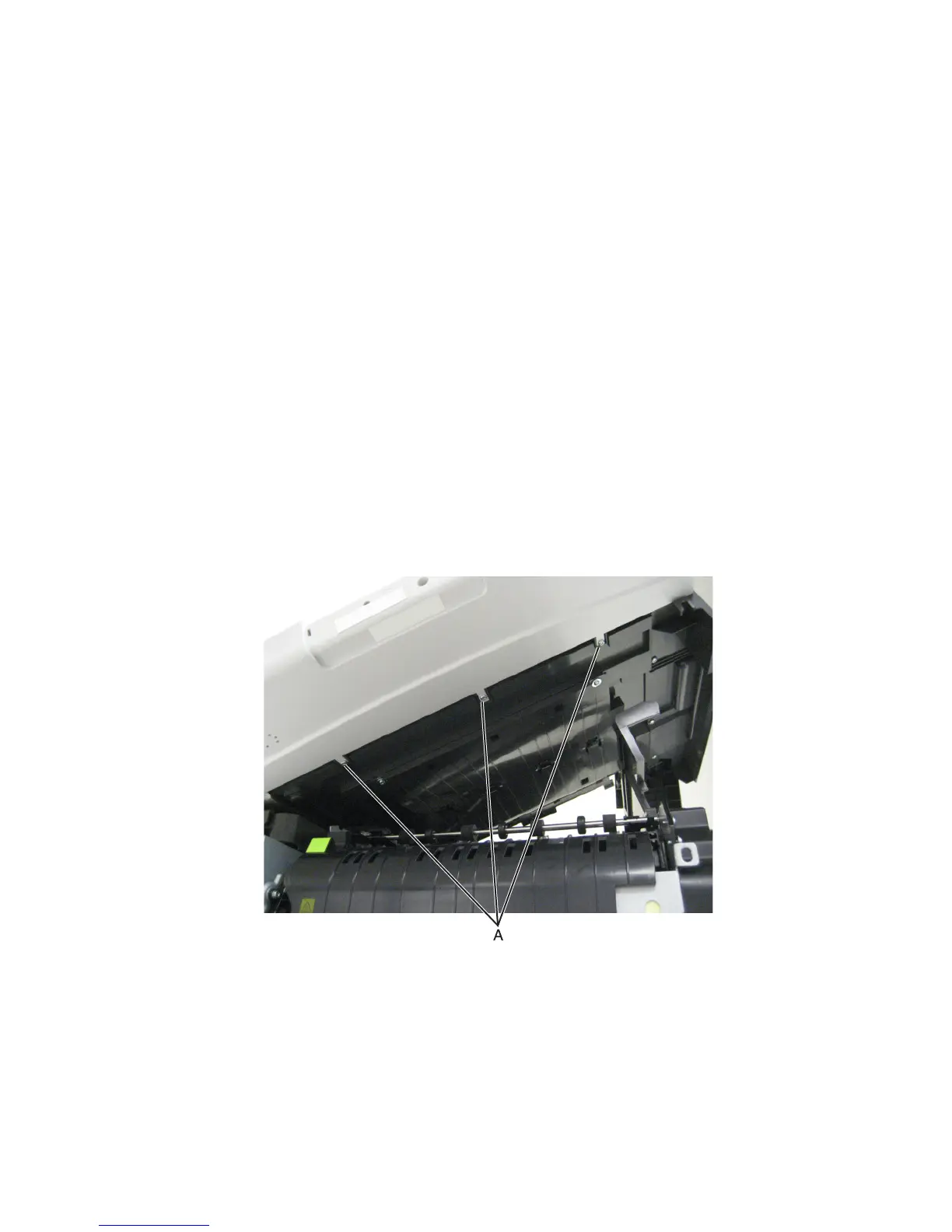

2 Remove the three screws (A) from beneath the operator panel.
7527
Repair information
283

Lexmark CX310dn Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	11.5 s
Time to first page (color, normal)	12.5 s
Print speed (black, normal quality, A4/US Letter)	23 ppm
Duplex print speed (black, normal quality, A4/US Letter)	12 ppm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	copy, print, scan
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	60000 pages per month
Recommended duty cycle	500 - 5000 pages per month
Number of print cartridges	5
Page description languages	Microsoft XPS, PCL 5c, PCL 6, PDF 1.7, PostScript 3, PPDS
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	23 cpm
Scanner type	Flatbed & ADF scanner
Maximum scan area	216 x 356 mm
Scan speed (color)	32 ppm
Optical scanning resolution	600 x 1200 DPI
Total input capacity	251 sheets
Total output capacity	150 sheets
Maximum input capacity	901 sheets
Total number of input trays	1
Maximum number of input trays	3
Auto document feeder (ADF) input capacity	50 sheets
Paper tray media types	Card stock, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 176 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black, Grey
Display diagonal	2.4 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Supported network protocols (IPv6)	TCP/IP IPv6, TCP, UDP
Internal memory	512 MB
Processor frequency	800 MHz
Maximum internal memory	2560 MB
Sound power level (standby)	16 dB
Sound pressure level (copying)	48 dB
Sound pressure level (printing)	47 dB
Sound pressure level (scanning)	49 dB
Sound pressure level (duplex printing)	50 dB
Power consumption (average operating)	- W
Package depth	594 mm
Package height	567 mm
Package weight	31430 g
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Linux operating systems supported	Fedora 14, Fedora 15, RedHat EL Linux 4.0 U5, RedHat EL Linux 4.0 U6, RedHat EL Linux 4.0 U7, RedHat EL Linux 5.0, RedHat EL Linux 5.1, RedHat EL Linux 5.2, RedHat EL Linux 5.3, SuSE Linux 10, SuSE Linux 10.2, SuSE Linux 10.3, SuSE Linux 11
Other operating systems supported	Novell NetWare 5.x, Novell NetWare 6.x, Novell Open Enterprise Server
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64

Weight and Dimensions

Depth	558 mm
Width	444 mm
Height	470 mm
Weight	27390 g
