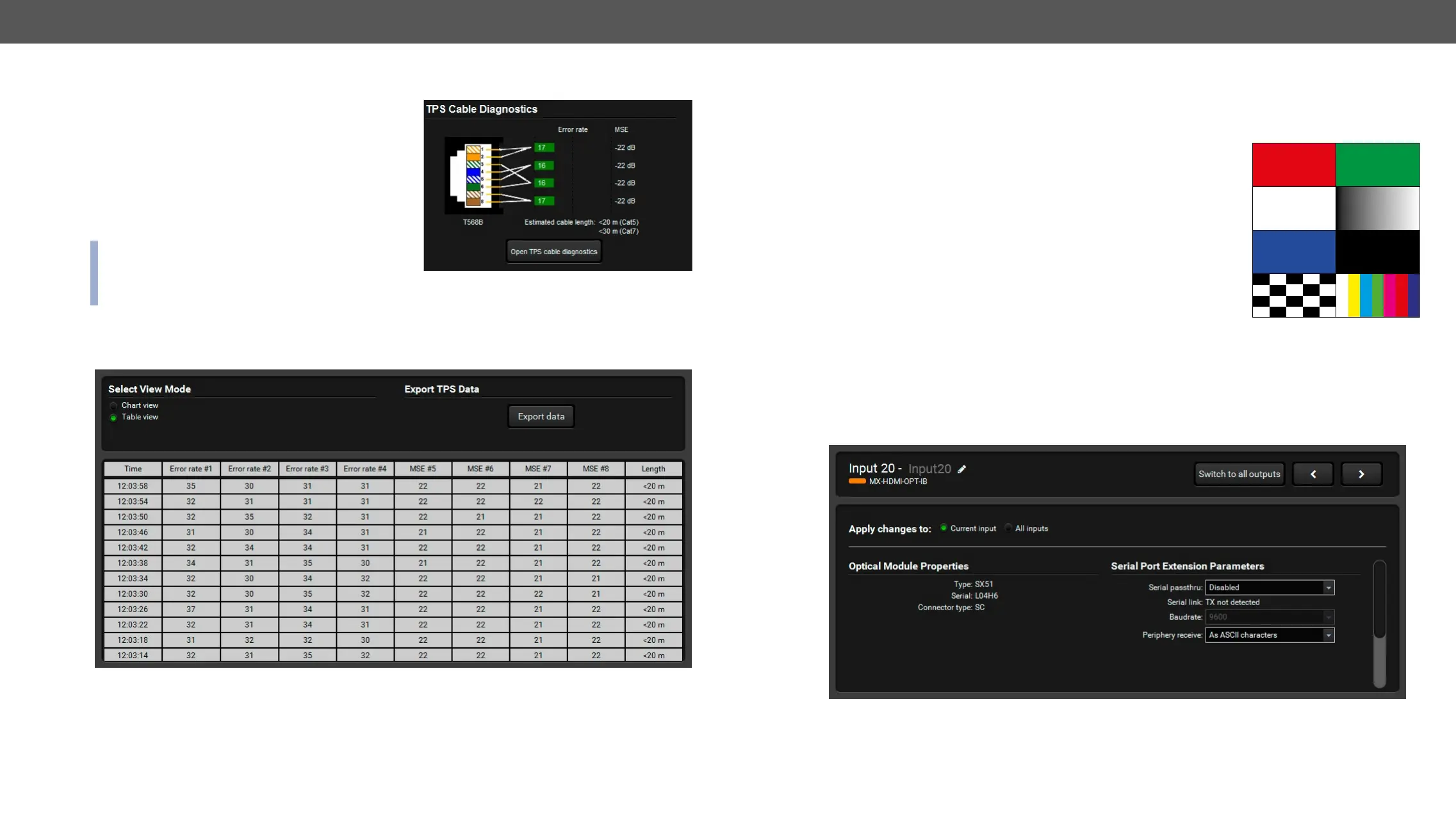

6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 78
TPS Cable Diagnostics
The cable diagnostics is a useful tool to determine any
cable related issues in the case of TPS connection. The
estimated cable length and the quality of the link are
measured periodically and the diagnostic window shows
the middle, they turn red. It means the number of errors
during the extension is higher than what is generally
deemed acceptable. The link might be alive, but recovery
of the received data is not guaranteed.
INFO: Each bar represents a differential line in the CATx
cable. The inappropriate termination of the cable usually
causes high error rates. Check the cable terminations
or change the cable.
Reference Values
the Export data button.
TPS Cable Diagnostics Window - Table View
Test Pattern Generator
Supported Boards: available for the most of the boards. #nosyncscreen #testpattern
The output ports can send a special image towards the sink devices for testing purposes. The setting is
available on output ports with the following parameters:
Mode
▪ On: the test pattern is always sent to the output port.
▪ Off: the test pattern generator is off.
▪ No signal: the test pattern generator is switched on if no video signal is
switched to the given output port.
Clock Source
▪ 480p / 576p / Original video signal: the clock frequency of the test pattern.
Pattern
▪ Red / Green / Blue / Black / White / Ramp / Chess / Bar / Cycle. Cycle setting
means all the patterns are changed sequentially approx. every 2 seconds.
Input Port Properties
Supported Boards:
▪ MX-HDMI-OPT-IB-LC, -SC, -NT
Input parameters of HDMI-OPT Type input port
MX-HDMI-OPT boards provide bidirectional RS-232 communication with periphery devices at remote
video signal, and the settings are available on the panel.
