6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 90
TPS Type Output Port
Supported Boards:
▪ MX-TPS-OB, -S, -A
▪ MX-TPS2-OB-P, -AP, -SP
▪ MX-4TPS2-4HDMI-OB, -A, -S, -P, -AP, SP (only the four TPS ports of the board)

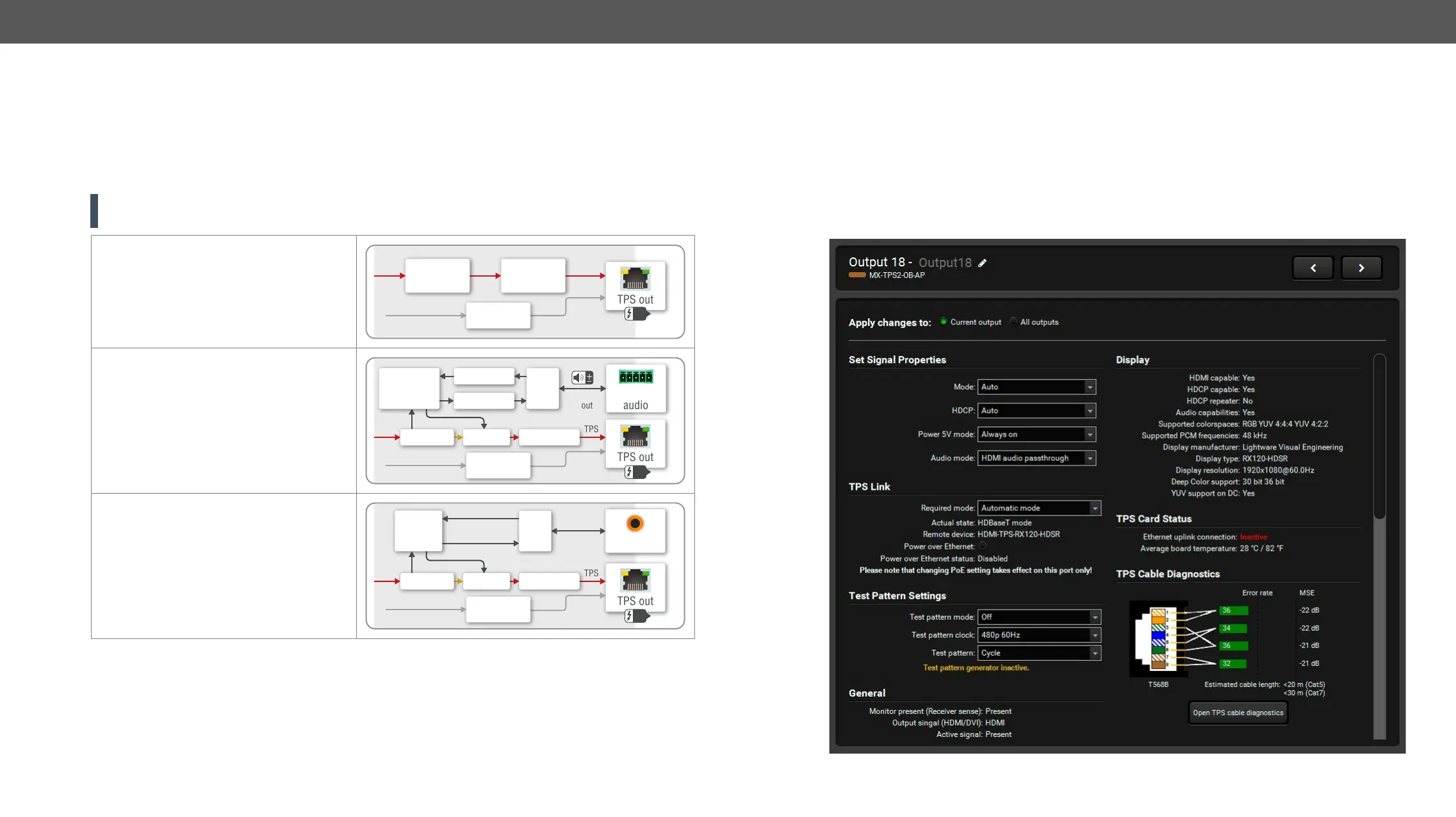

Port Diagrams #power5v
ATTENTION!
MX-TPS-OB
MX-TPS2-OB-P
Plain TPS output board with remote power
support without additional audio ports.
TPS out
PoE
HDMI HDMI TPS
48V external power
HDBaseT
TM
TX
Switchable PoE
power injector
EQ + Reclocker
MX-TPS-OB-A
MX-TPS2-OB-AP
TPS output board with remote power support
and an additional analog audio port. The ad-
ditional audio port can be used as an input
(embedding the analog audio signal in the
video of the TPS signal), or it can be used as
an output (de-embedding the audio content
of the HDMI stream).
HDMI
TPS
48V external power
Balanced
in/out
S/PDIF
out
S/PDIF in
Switchable PoE
power injector
Analog
audio
A/D converter
D/A converter
Switch
S/PDIF
crosspoint
De-embedder Embedder HDBaseT
TM
TX
TPS out
PoE
MX-TPS-OB-S
MX-TPS2-OB-SP
TPS output board with remote support and
-
al audio port can be used as an input (em-
bedding the digital audio signal in the video
of the TPS signal), or it can be used as an out-
put (de-embedding the audio content of the
HDMI stream).
HDMI
TPS
48V external power
S/PDIF
out
S/PDIF in
Switchable PoE
power injector
De-embedder Embedder HDBaseT
TM
TX
TPS out
PoE
RCA
Switch
S/PDIF
in
out
S/PDIF
crosspoint
TPS Mode Setting
The required mode can be HDBaseT, Longreach, Automatic, RS232 only and RS232+ETH only. For detailed
information about the TPS modes, see the TPS Link Modes section.
Audio Mode #audio #analogaudio
It can be selected here which audio signal will be embedded in the forwarded HDMI signal. It can be set to
Audio Options section.
The PoE-compatible remote power feature can be enabled on each port individually under TPS link section,
and the current state is shown in the following line.
Firmware Settings
The settings and the update process is described in the Firmware Update of TPS(2) Ports section.
TPS boards can display the name of the remote Lightware device that is displayed in the TPS Link section.
Click on the Open remote device settings button to open a new window:
TPS Type Output Port Properties (MX-TPS2-OB-AP)
