Driving modes
6.5 Installing/removing outrigger beams
Operating Manual GMK6300L 3 112 xxx en 6 - 59
xx.xx.xxxx
6.5.8 Disconnecting/establishing the connections to the supporting
box

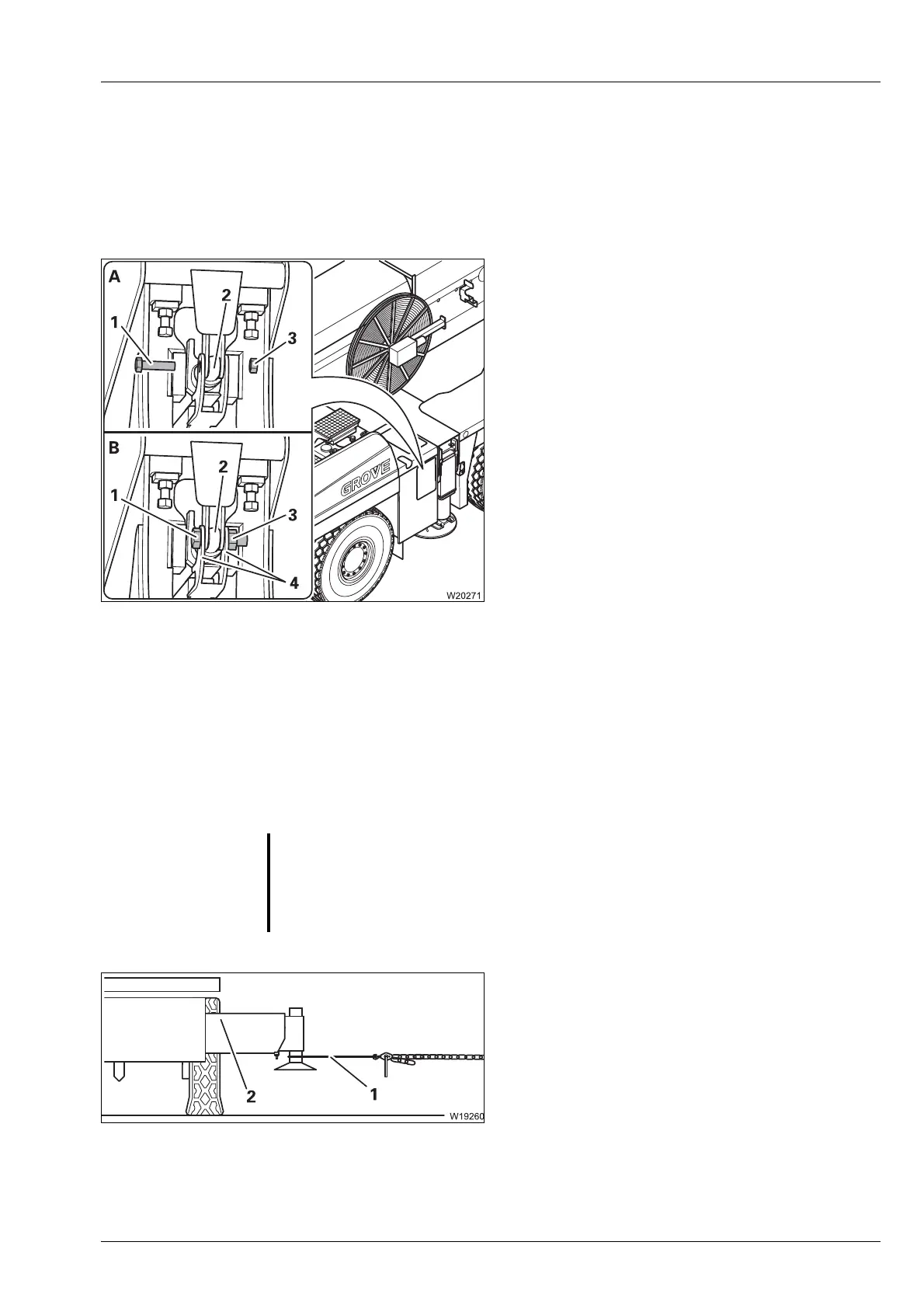

The illustrations show as an example the connecting points for the outrig-
ger beam on the front left hand side.
(A) – To disconnect
• Undo the wheel nuts (3).
• Remove the bolts (1) from the connecting
points (2).
(B) – Establishing the connection
• Fasten the bolts (1) with the nuts (3) in the
connecting points (2) just tight enough that
the attachment plates (4) still have lateral
play.
6.5.9 Extending/retracting the outrigger beam
Extending the
outrigger beam
• Check that the outrigger beams are released and are secured between
each other;
à Preparing the truck crane, p. 6 - 52.
• Fasten the lifting gear (1) and a chain hoist.
• Pull the outrigger beam out so far that the
centre of gravity (2) is accessible.
s
S
Risk of damage to hydraulic lines!
Ensure that the hydraulic lines on the outrigger beam do not remain hang-
ing on the supporting box and become damaged.
