HURTH V-DRIVE TRANSMSSION SERVICE MANUAL NUMBER 23
Page 8D-4 90-861326--1 MARCH 1999

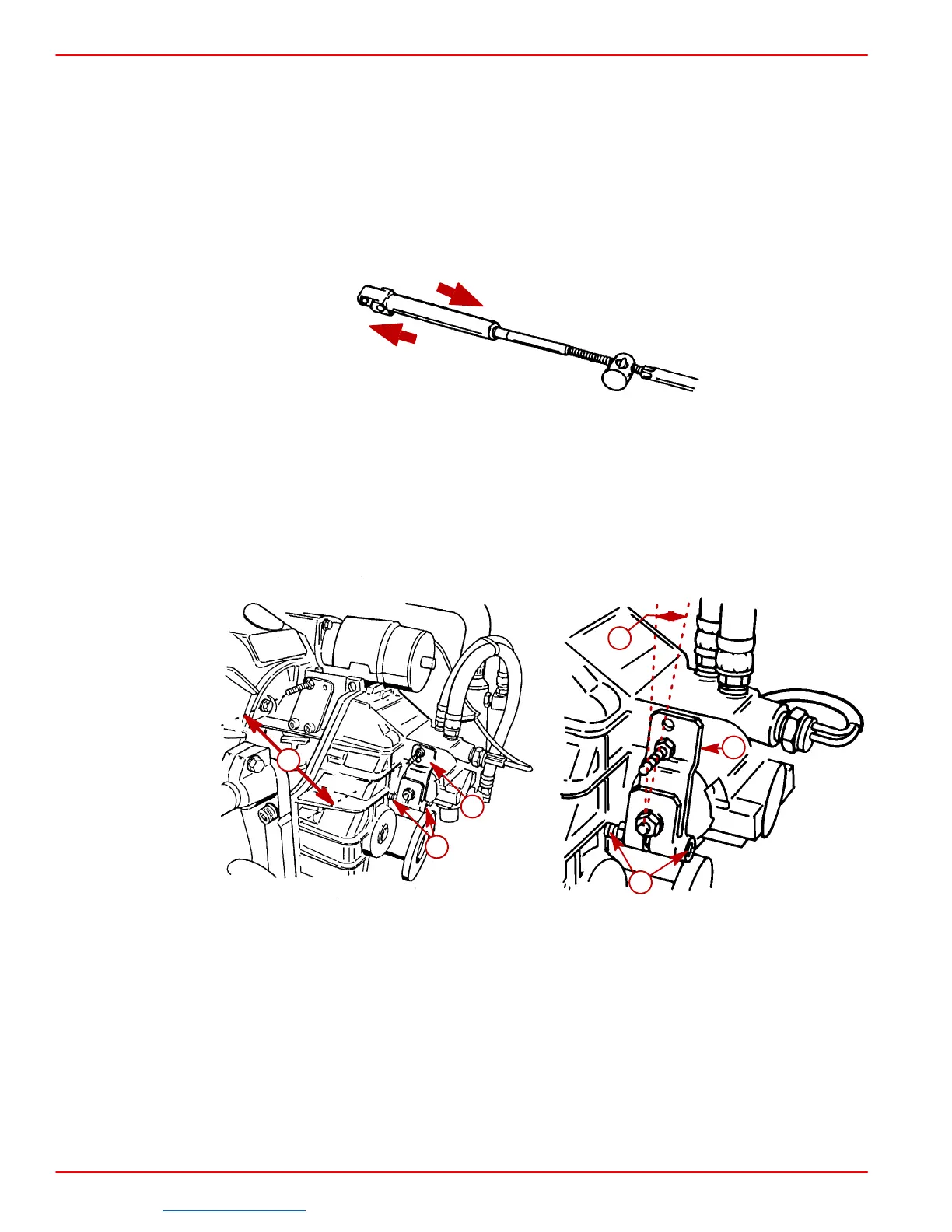

IMPORTANT: Transmission propeller rotation is determined by the shift cable instal-
lation in the remote control.
• RIGHT-HAND PROPELLER ROTATION - Control cable will have to be installed in re-
mote control so that cable end will move in direction “A” when shift handle is placed in the
forward position.
• LEFT-HAND PROPELLER ROTATION - Control cable will have to be installed in
remote control so that cable end will move in direction “B” when shift handle is placed in
the forward position.
23242
A
B
Shift Cable Installation and Adjustment
IMPORTANT: Check that shift lever is positioned approximately 10° aft of vertical as
shown when in the neutral detent position. Also, ensure that the distance between
studs in the following is set at 7-1/8 in. (181 mm). If necessary, loosen clamping bolt
and position lever so that dimension (c) is as shown when in the neutral detent posi-
tion, and retighten clamping bolt.
72958
a
c
d
50228
a
b
d
Typical Hurth Transmission Shown
a-Shift Lever
b-Lever, In Neutral Detent, Must Be Approximately 10 Degrees Aft Of Vertical
c-Dimension Between Studs - 7-1/8 In. (181 mm)
d-Clamping Bolt
