Technical Information
12
DG 408x Steam Ovens
1 Technical Data
Cooling fan M2 (DG 4080) or M2/1 (DG 4082)
Voltage 240VAC, 60Hz
Output 15W
Table 010-1: Cooling Fan Data
2 Function
2.1 Air and Vapor Ducting

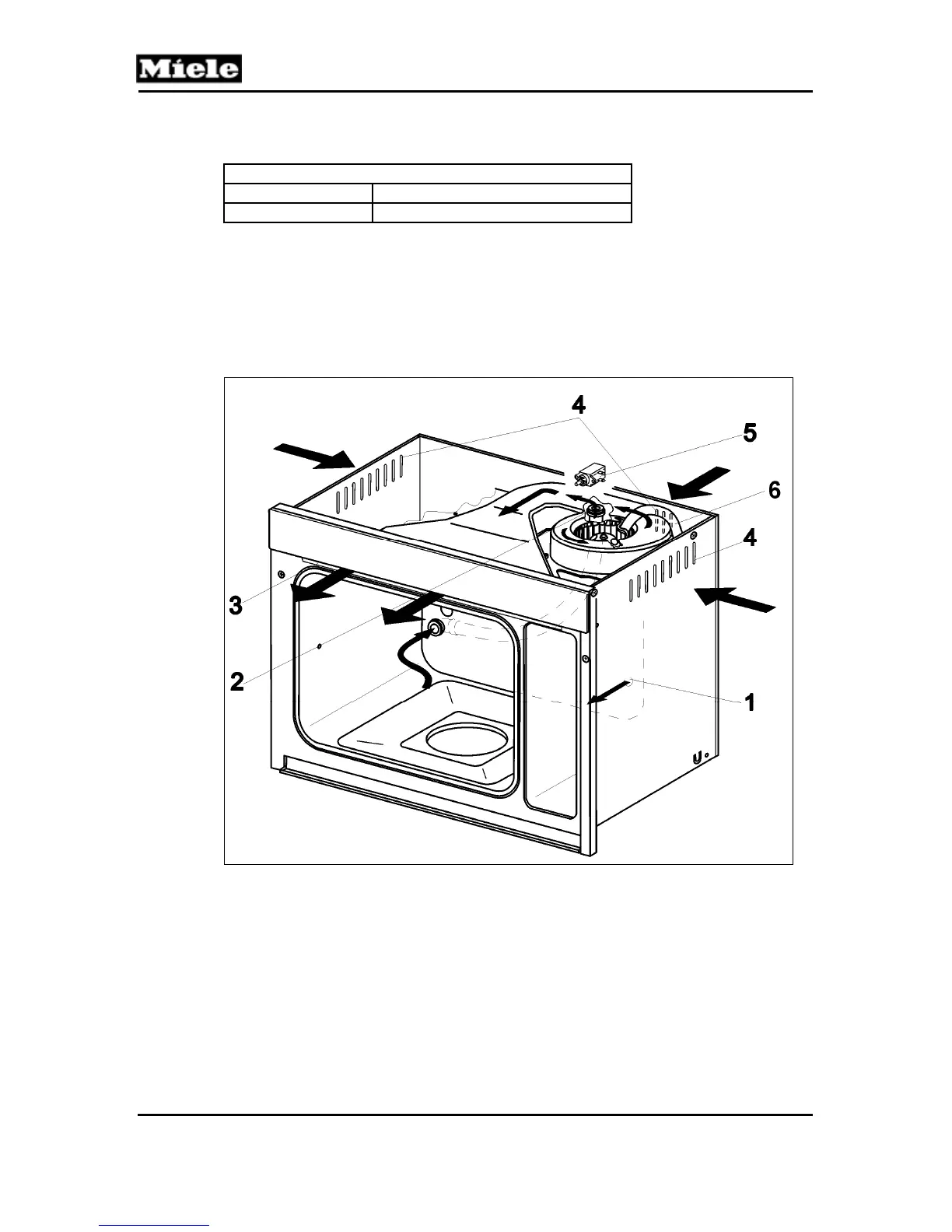

Figure 010-1: Ducting
1
Steam inlet
2
Oven vent hose
3
Cool air/vapor outlet
4
Cool air inlet
5
Release element for steam reduction (door opener)
6
Steam vent hose
During the cooking process, fresh steam is pumped into the oven cavity
(Figure 010-1, Item 1). The generated vapors are pushed out through the
vent opening. Through a hose at the rear of the oven cavity, the vapors move
