Technical Information
18
DG 408x Steam Ovens
4.5 Removing the Door Contact Switch (S24)
1. Uninstall the appliance. See Section 010-4.1.
2. Remove the left side panel. See Section 010-4.2.
3. Unhook the door spring (Figure 010-8, Item 1).
4. Remove the two Phillips screws (Figure 010-8, Item 2).
5. Remove the switch from its support plate.
6. Disconnect the switch connections (Figure 010-8, Item 3).

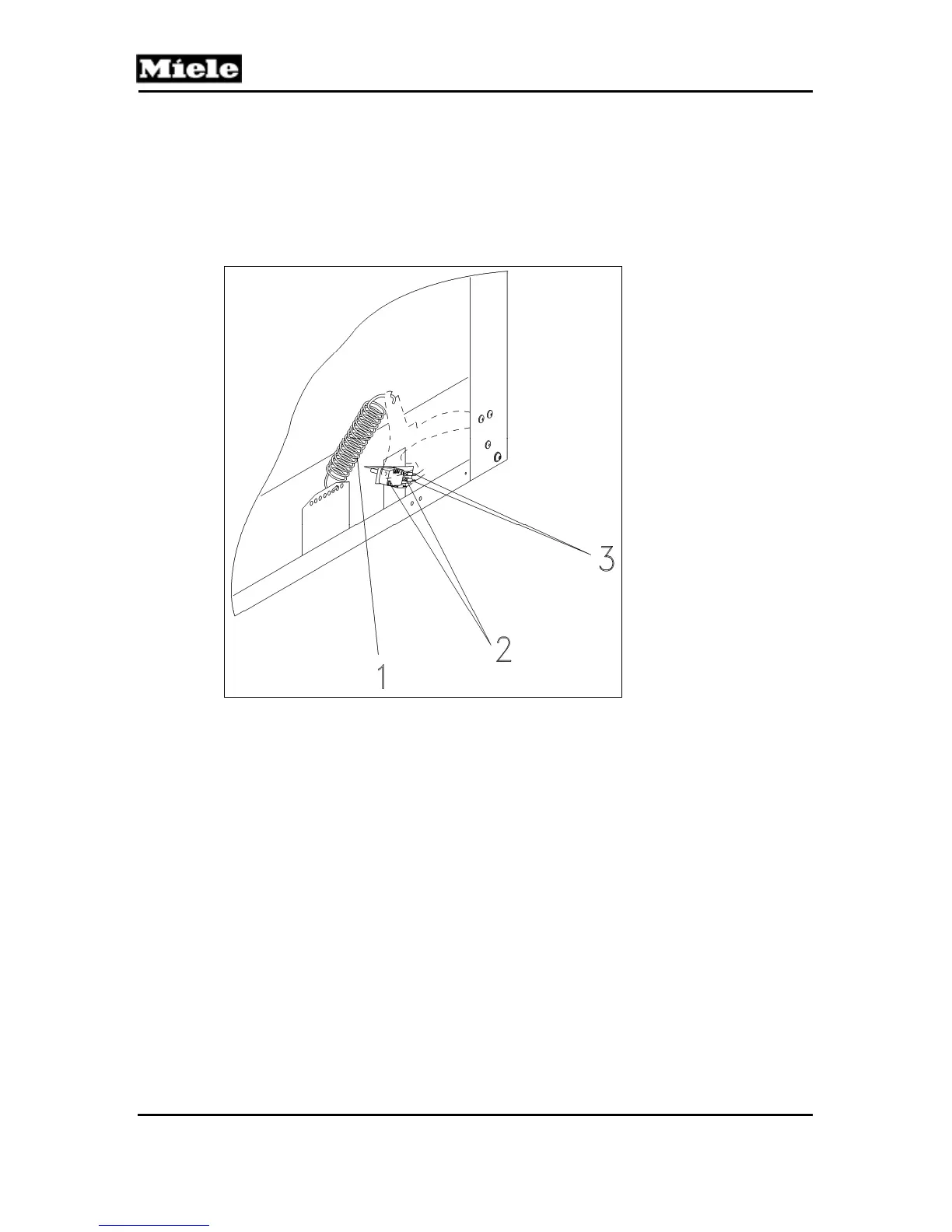

Figure 010-8: Door Contact Switch Removal
4.6 Upper Air Duct Removal
1. Take the steam generator and equipment out of the oven cavity.
2. Uninstall the appliance. See Section 010-4.1.
3. Remove the side panels. See Section 010-4.2.
4. Remove the rear panel. See Section 010-4.3.
5. Remove four screws securing fascia panel (Figure 010-9, Item 1, left and
right sides).
