Technical Information
28
DG 408x Steam Ovens

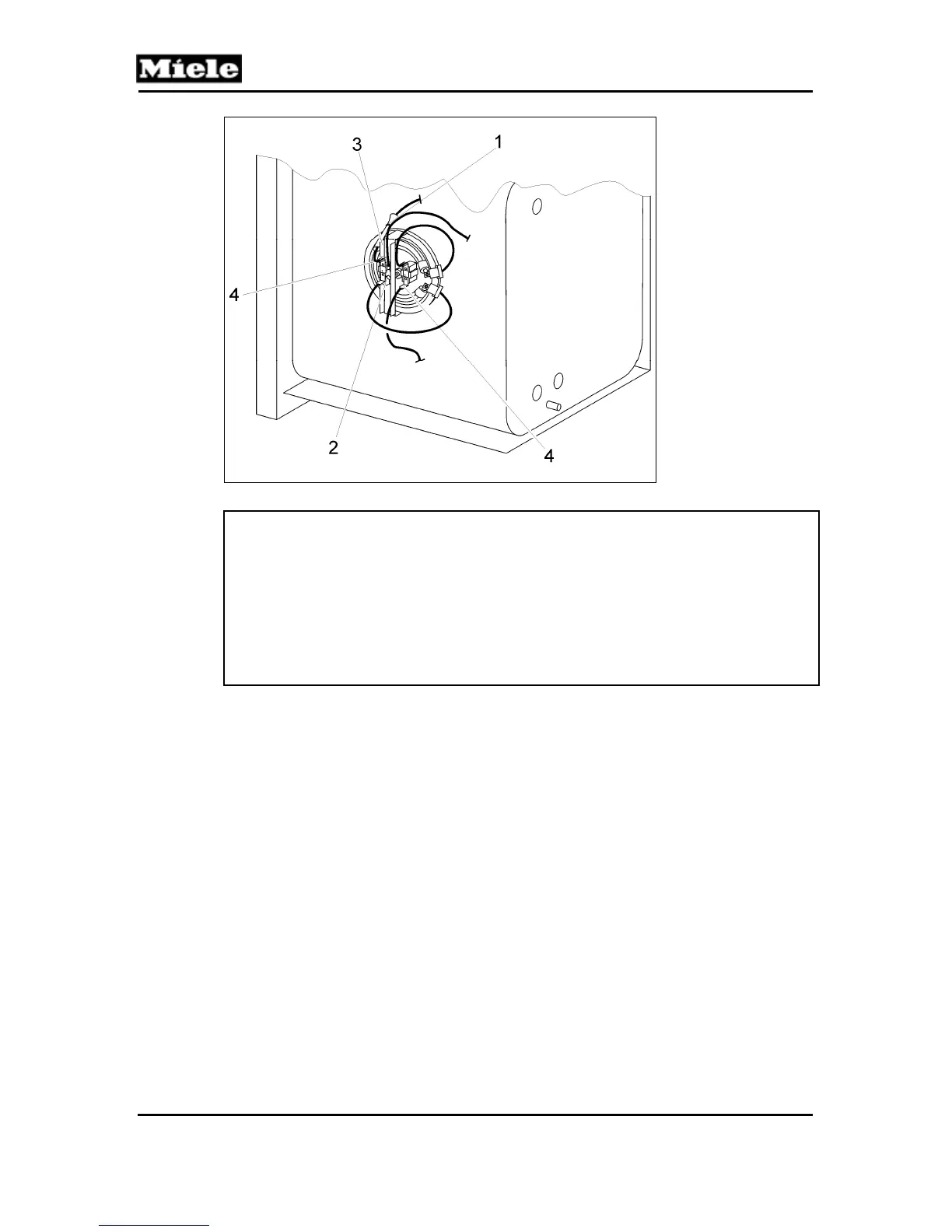

Figure 030-5: Floor Heater Removal (DG 4082)
Note:
Make sure that the seal is installed properly when installing the heater
element.
When re-installing the cover, rotate it slightly (one-quarter turn) and screw
into place.
To prevent adverse operation make note of (or mark) all electrical
connections during disassembly, so they can be connected correctly during
reassembly.
4.3 Floor Heater Temperature Regulator (2F1) and Temperature
Limiter (2F8) Removal
1. Take the steam generator and equipment out of the oven cavity.
2. Uninstall the appliance. See Section 010-4.1.
3. Tip the appliance onto its back.
4. Using a pair of cutters, remove the cover from the base (Figure 030-3).
5. Remove the 7-millimeter nut securing the ground wire (Figure 030-4, Item 1).
6. Disconnect the ground wire.
7. Take off the retaining bracket.
8. Remove the retaining nut (Figure 030-4, Item 2).
9. Take off clip with temperature regulator and temperature limiter.
10. Remove connectors to temperature regulator and temperature limiter.
