DG 408x Steam Ovens
4.2 Removing the Steam Generator Heater (1R25, 2R25)
Note:
The heater is integrated into the steam generator housing. Should a heater
element require replacement, the steam generator must be replaced as an
assembly. The heater elements are not replaced separately.
1. Open the door.
2. Remove the steam generator.
3. Remove the insert from the steam generator housing.
4.3 Removing the Steam Generator Temperature Regulator (1F1) and
Temperature Limiter (1F8)
1. Open the door.
2. Remove the steam generator.
3. Remove the insert from the steam generator housing.
4. Remove the bottom cover from the housing by gently pulling the cover from
the assembly while using a screwdriver to release the locking tabs, as
shown in Figure 040-4.

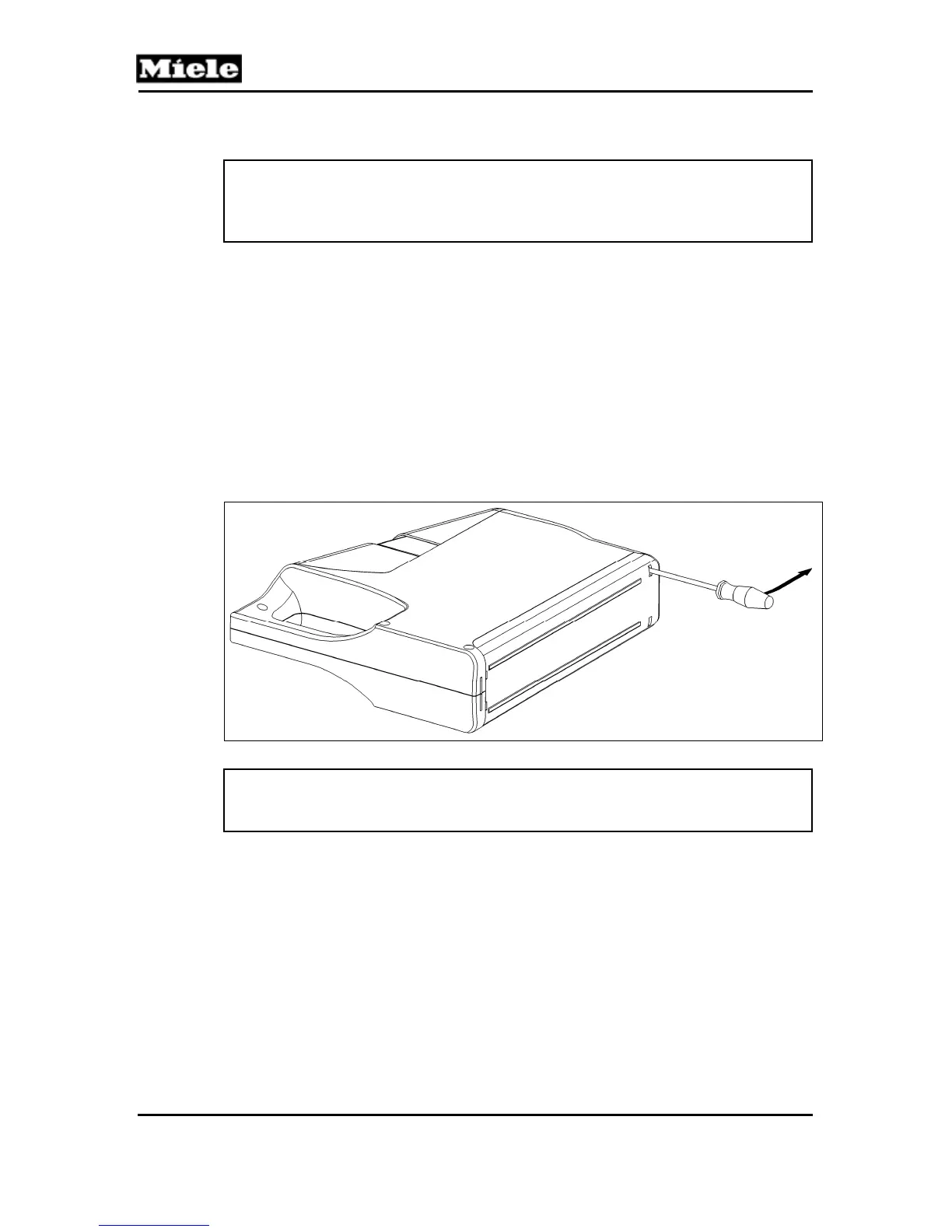

Figure 040-4: Housing Base
Caution!
Do NOT pry the bottom cover off. It can be easily removed using the
procedure outlined above.
5. Remove the two T20 screws (Figure 040-5, Item 1).
6. Remove the temperature regulator and temperature limiter.
7. Disconnect all temperature regulator and temperature limiter connections.
