Technical Information
26
DG 408x Steam Ovens
Remove the temperature sensor from its seal.

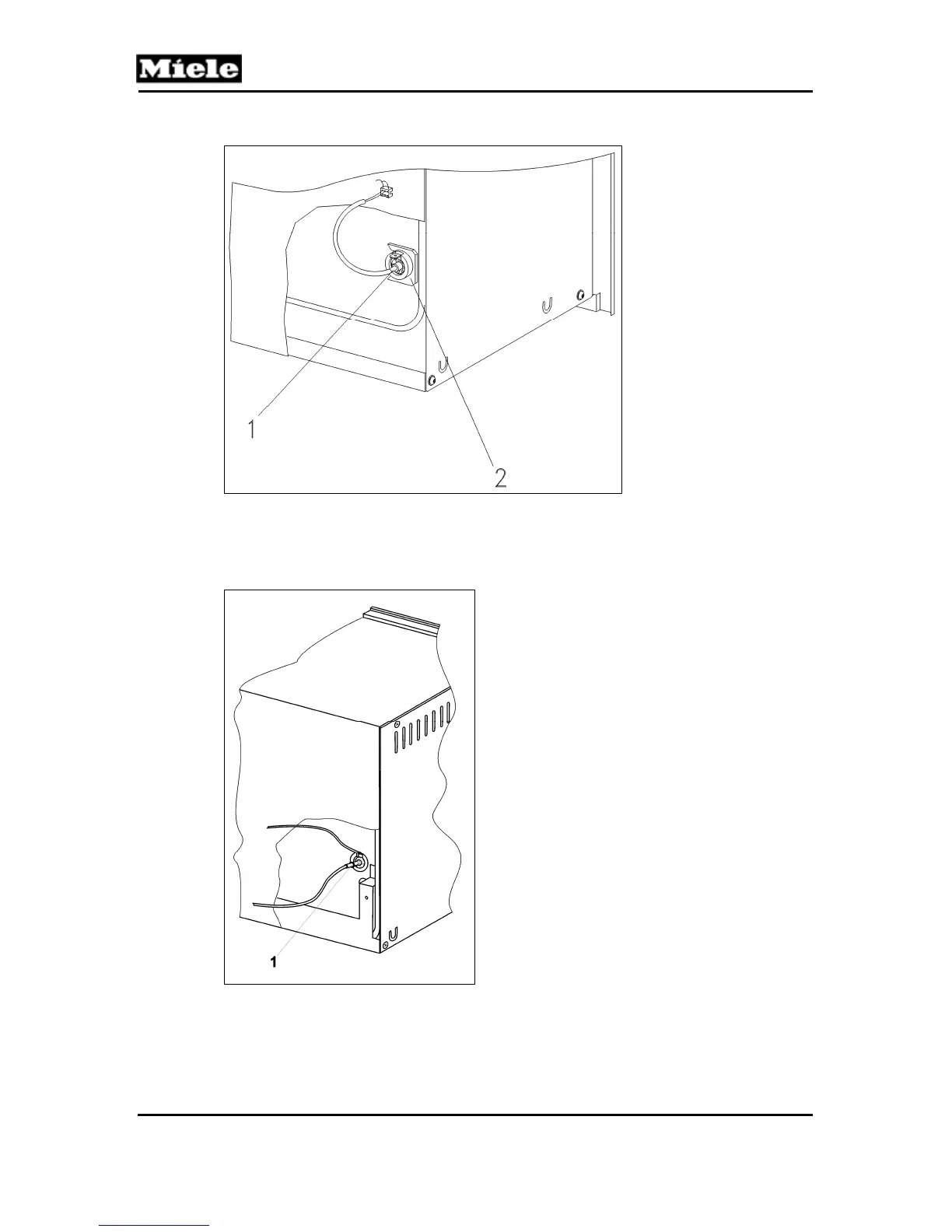

Figure 030-1: Temperature Sensor R30 Removal (DG 4080)
7. DG 4082: Disconnect the ground wire from the temperature sensor, and
the temperature sensor wiring harness from the power electronic. See
Figure 030-2, Item 1. Remove the temperature sensor from its seal.
Figure 030-2: Temperature Sensor R30/10 Removal (DG 4082)
4.2 Removing the Floor Heater Element (R28)
1. Take the steam generator and equipment out of the oven cavity.
2. Uninstall the appliance. See Section 010-4.1.
