DG 408x Steam Ovens
4.2 Installing the Door
1. Place the door on the hinges and slide it down.
2. Open the door fully.
3. Push the clamps back down.
4. Close the door.
4.3 Door Disassembly
1. Door removal
2. Lay the door on a soft work surface (mat or cloth), with the inner side
facing up.
3. Remove 3 Phillips screws on the bottom edge of the inner door (Figure
020-3, Item 1).
4. DG 4082 only: Remove 4 Phillips screws from the top of the inner door
(Figure 020-3, Item 2).
5. Take off the inner door.
6. Remove the 2 Phillips screws securing the door handle (Figure 020-3,
Item 3).
7. Remove the door handle.

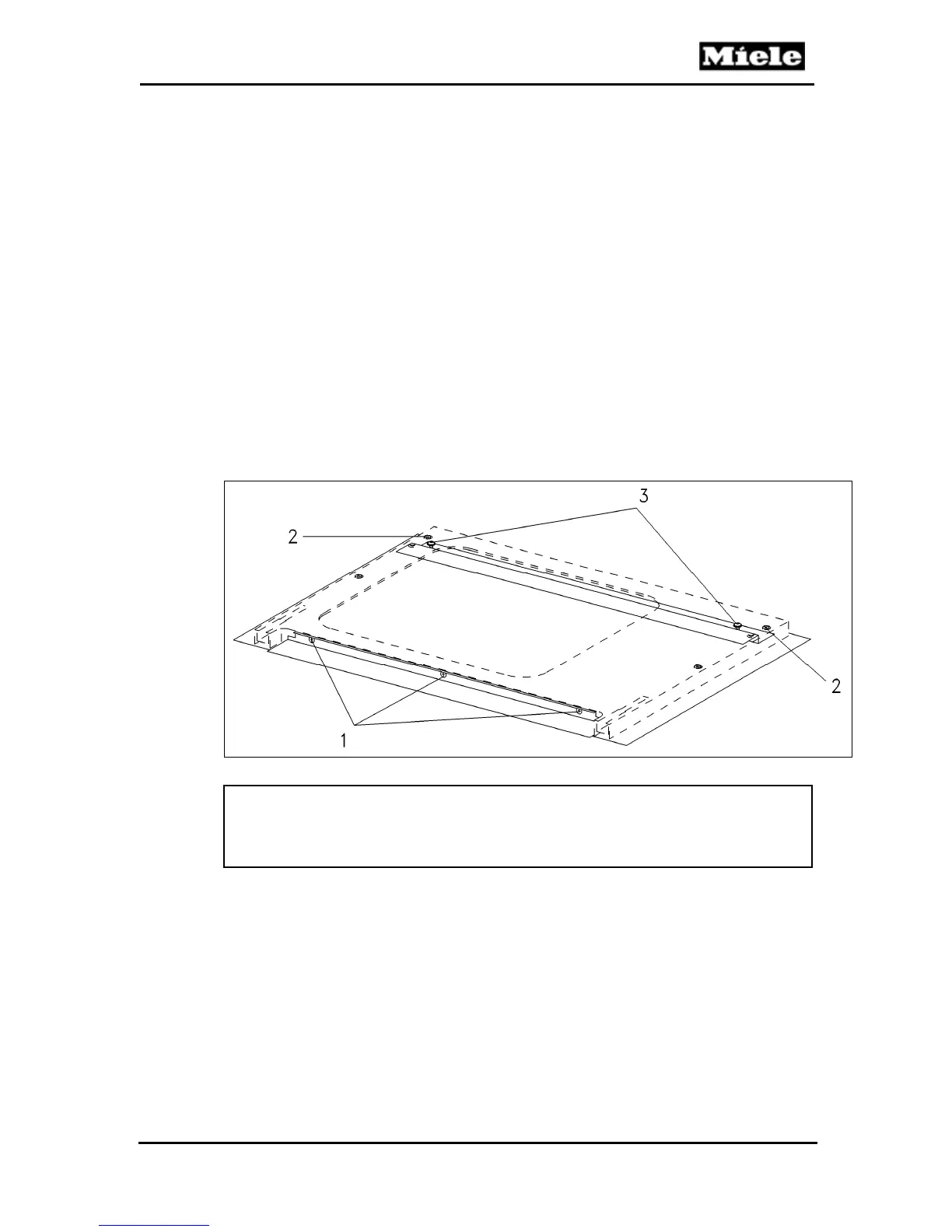

Figure 020-3: Door Handle Removal
Note:
When assembling the door, make sure to carefully position the seal running
along the edges of the inner door. Ensure that the seal is seated and
remains flush with the edge of the glass.
