4 - 12 0070-10-0683 AS3000™ Service Manual
4.3.3 Electric Box

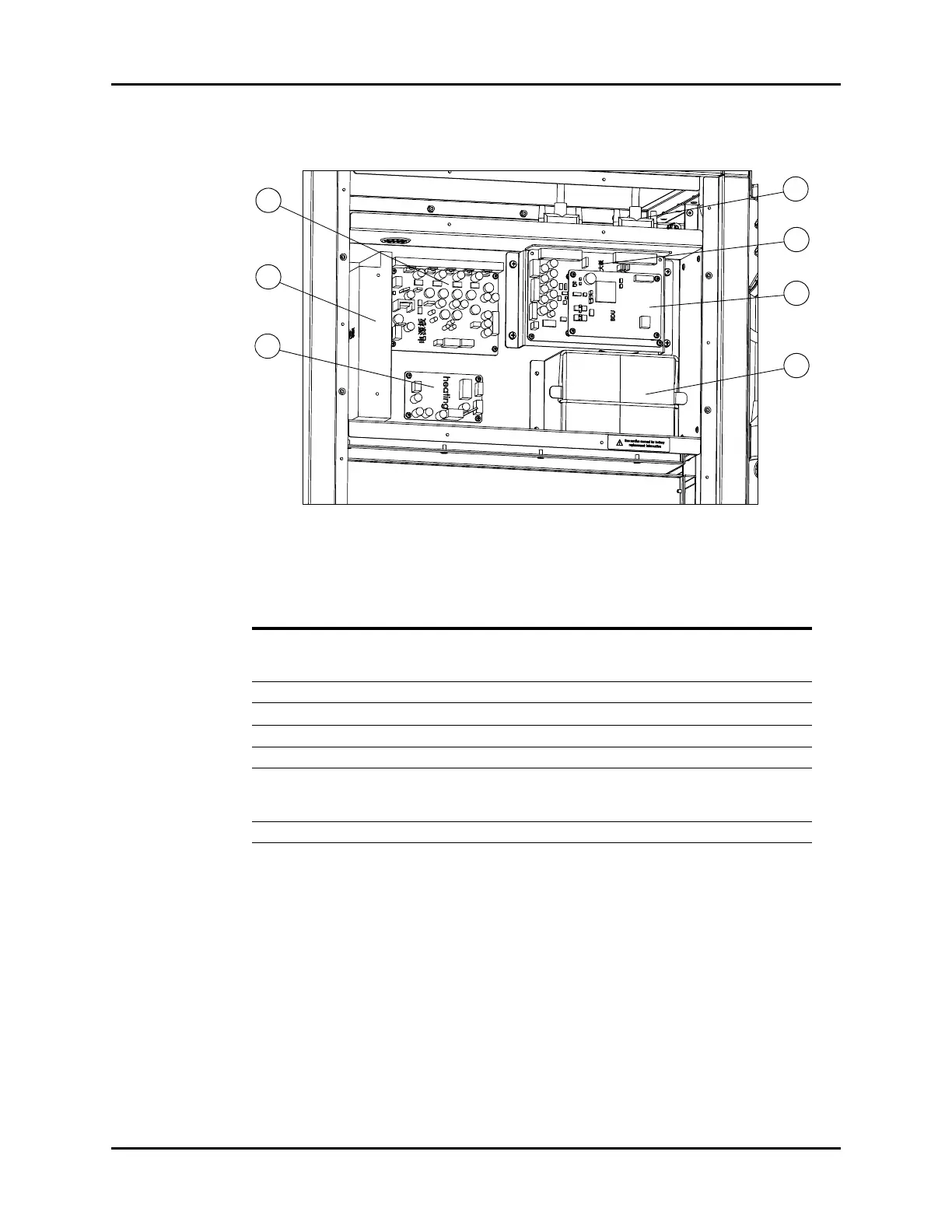

FIGURE 4-8 Electric Box Assembly
4.3.3.1 Electric Box Parts List
62
63
64
65
66
67
68
FIG. NO. DESCRIPTION PART NUMBER
62 PC Board Assembly, Power 0671-00-0264 (M31)
051-000484-00 (M32)
051-000484-00 (M33)
63 Power Supply, SNP-B209, Switching 0014-00-0091
64 PC Board Assembly, Breathing System Heater 0671-00-0107
65 Cable, Amp PC Board to Sensor PC Board 0012-00-1777
66 PC Board Assembly, Amplifier 0671-00-0263
67 PC Board Assembly, BDU 0671-00-0262 (M31)
051-000517-00 (M32)
051-000493--00 (M33)
68 Battery Assembly SLA-5AH24V-3 0997-00-0619
