AS3000™ Service Manual 0070-10-0683 4 - 15
Replacement Parts and Accessories Isometric Drawings
4.3.5.1 User Interface Parts List
FIG. NO. DESCRIPTION PART NUMBER
74 LCD Display 0160-00-0119
75 Keypad Overlay 0331-00-0139
76 Knob, Navigator™ 0366-00-0136
77 PC Board RS232 0671-00-0111
78 Cable, Comm PC Board to Display Panel 0012-00-1774
79 Speaker Assembly 0119-00-0230
80 Inverter, LCD 0671-00-0112
81 Cable, PC104 PC Board to Display 0012-00-1776
82 Communications Board 0671-00-0109 (M31)
051-000483-00 (M32, M33)
83 PC104 Board 0671-00-0276 (M31)
051-000518-00 (M32)
050-000359-00 (M33)
PC104 Board (old) * N/A
— Display Assembly 0997-00-0620 (M31)
021-000026-00 (M32)
115-005982-00 (M33)
* The PC104 Board (old) is not available as an individual spare part. If replacement is required, the
complete Display assembly will have to be replaced.

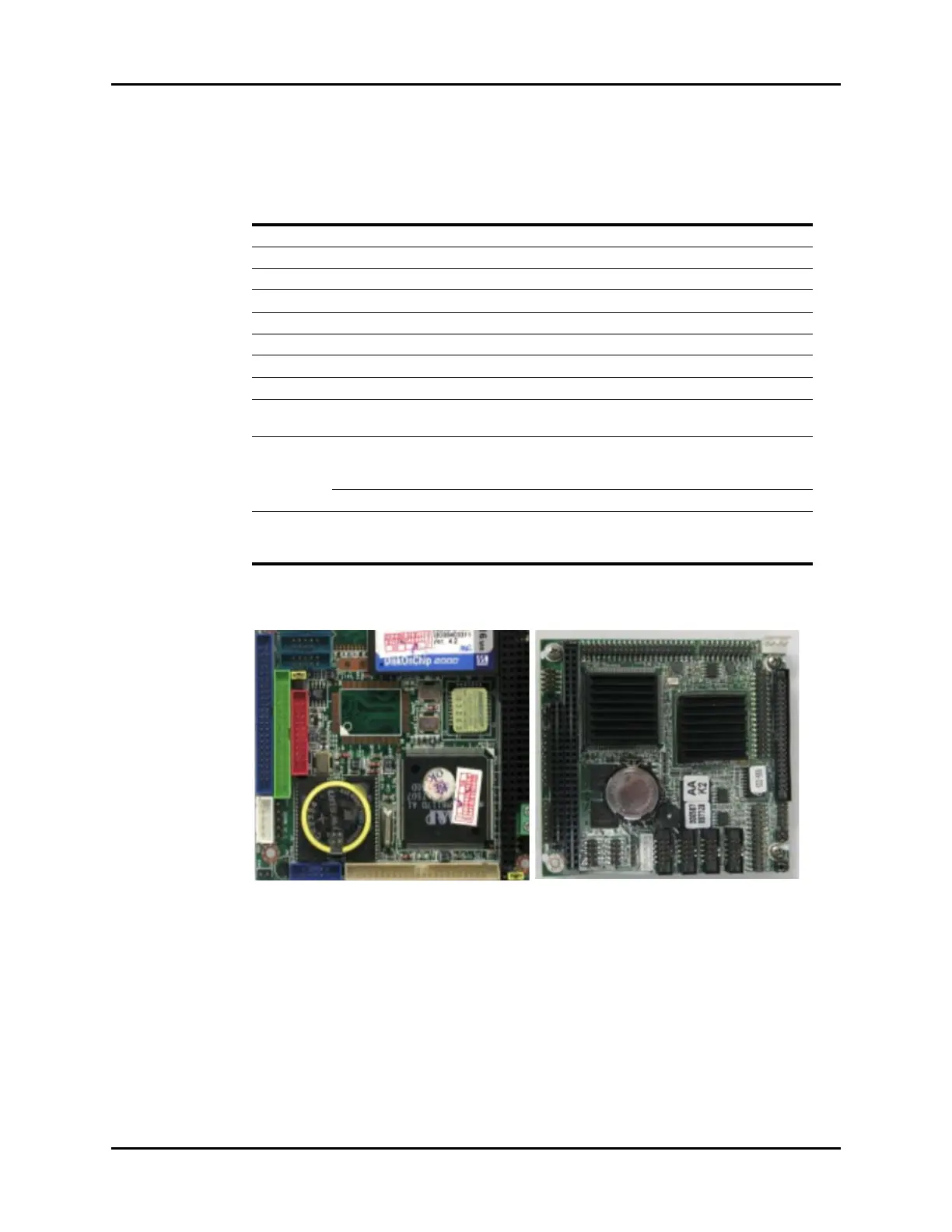

FIGURE 4-12 Old Style PC104 Board FIGURE 4-13 Newer Style PC104 Board
