AS3000™ Service Manual 0070-10-0683 4 - 13
Replacement Parts and Accessories Isometric Drawings
4.3.4 Gas Circuit Box

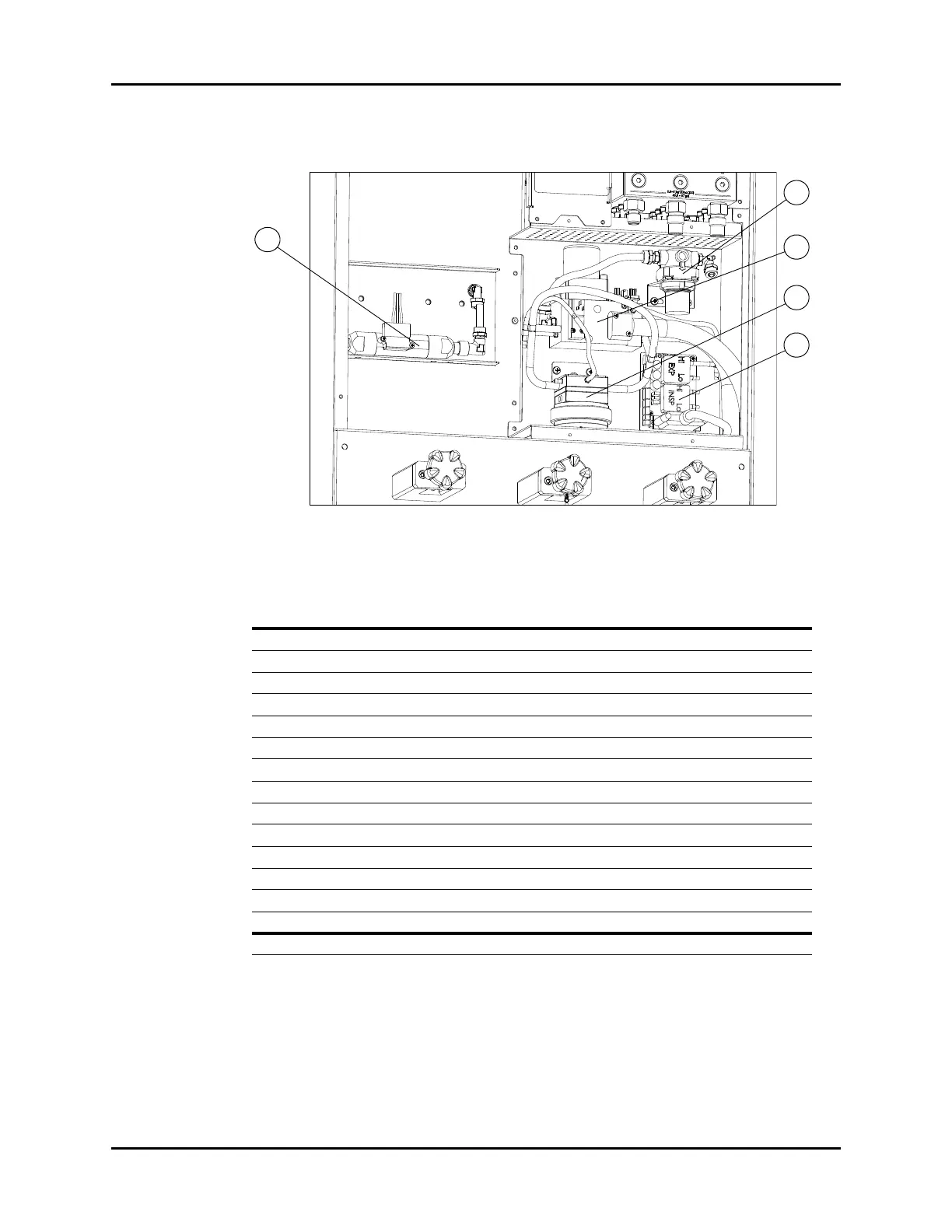

FIGURE 4-9 Gas Circuit Box Assembly
4.3.4.1 Gas Circuit Box Parts List
69
70
73
72
71
FIG. NO. DESCRIPTION PART NUMBER
69 Electronic Flow Meter Assembly 0154-00-0010
70 PC Board Assembly, Sensor 0671-00-0265
71 PEEP Valve 0104-00-0062
72 Gas Drive Module Assembly 0997-00-0632
73 Valve, Pressure Reducer 0103-00-0681
NS Exhaust Gas Outlet Port 082-000681-00
NS Tube, Green, 6 mm OD, 4 mm ID 0008-00-0338
NS Tube, Green, 8 mm OD, 6 mm ID 0008-00-0337
NS Tube, Yellow, 6 mm OD, 4 mm ID 0008-00-0356
NS Tube, Blue, 6 mm OD, 4 mm ID 0008-00-0340
NS Tube, Black, 8 mm OD, 6 mm ID 0008-00-0358-15
NS Tube, Silicone, 20 mm OD, 15 mm ID 0008-00-0371
NS Tube, Silicone, 5 mm OD, 2 mm ID 0008-00-0370
NS Tube, Silicone, 8 mm OD, 4 mm ID 0008-00-0369
NS Not Shown
