LUBRICATION SYSTEM
9-7

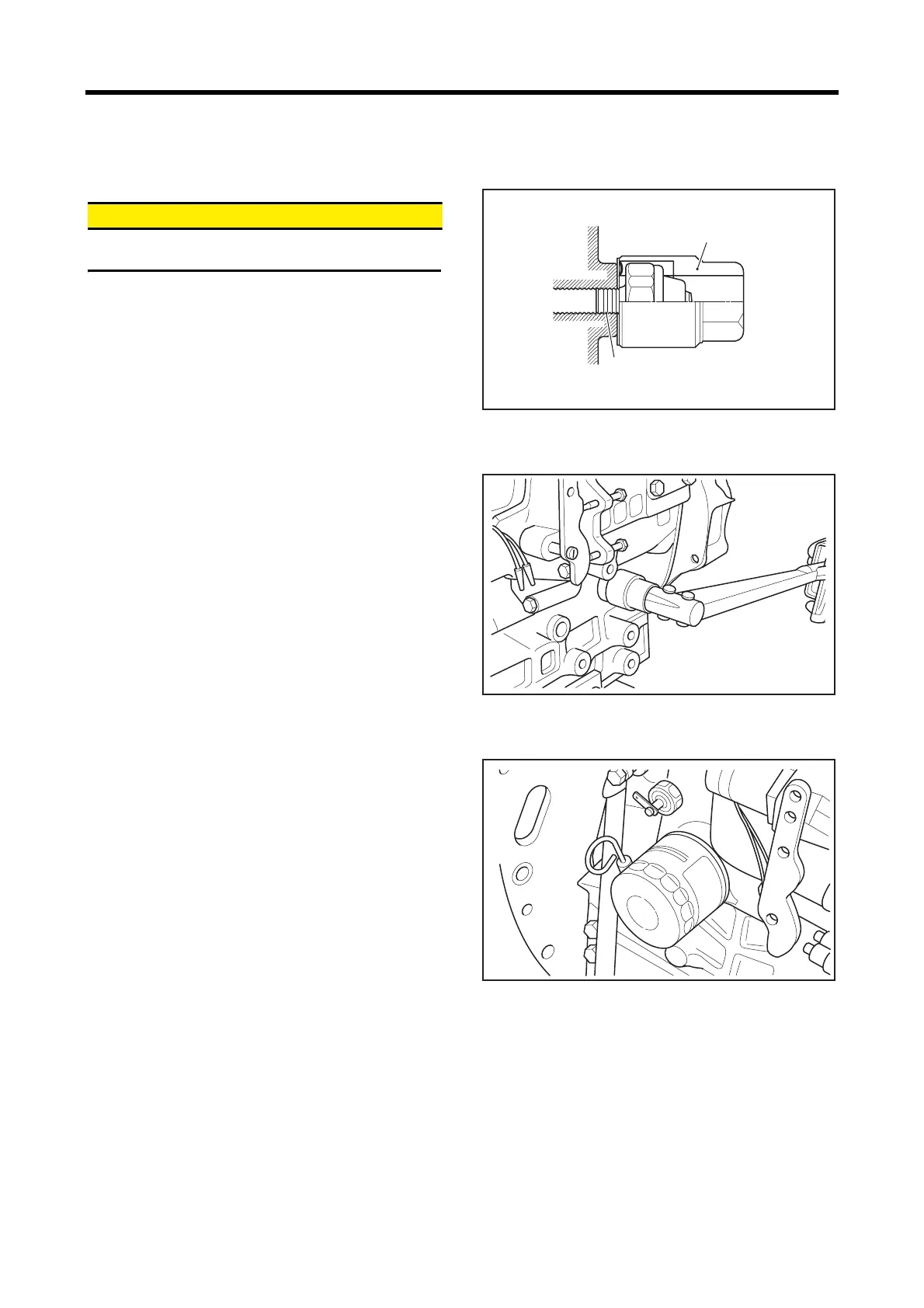

3.1 Installing oil pressure switch
&$87,21
Do not allow sealant to squeeze out at the thread end.
Do not overtighten.
(1) Using an oil pressure switch socket wrench, tighten the
oil pressure switch to the specified torque.
(2) Apply a sealant to the threaded portion when installing
the switch.
Installing oil pressure switch
3.2 Installing relief valve
Install the relief valve to the cylinder head side face, and
tighten it to the specified torque.
Installing relief valve
3.3 Installing oil filter
(1)
Apply a light coating of engine oil to the filter gasket.
(2) Screw the filter in by hand. When the filter gasket
contacts the mounting surface, screw the filter in
another turn.
Installing oil filter
Oil pressure switch
socket wrench
P/N:MD998054
7.85 to11.8 N·m
{0.8 to 1.2 kgf·m}
[5.8 to 8.7 lbf·ft]
Apply HERME SEAL H1 or
THREEBOND 1344N.
44.1 to 53.9 N·m
{4.5 to 5.5 kgf·m}
[32.5 to 39.8 lbf·ft]
