ELECTRICAL SYSTEM
12-21

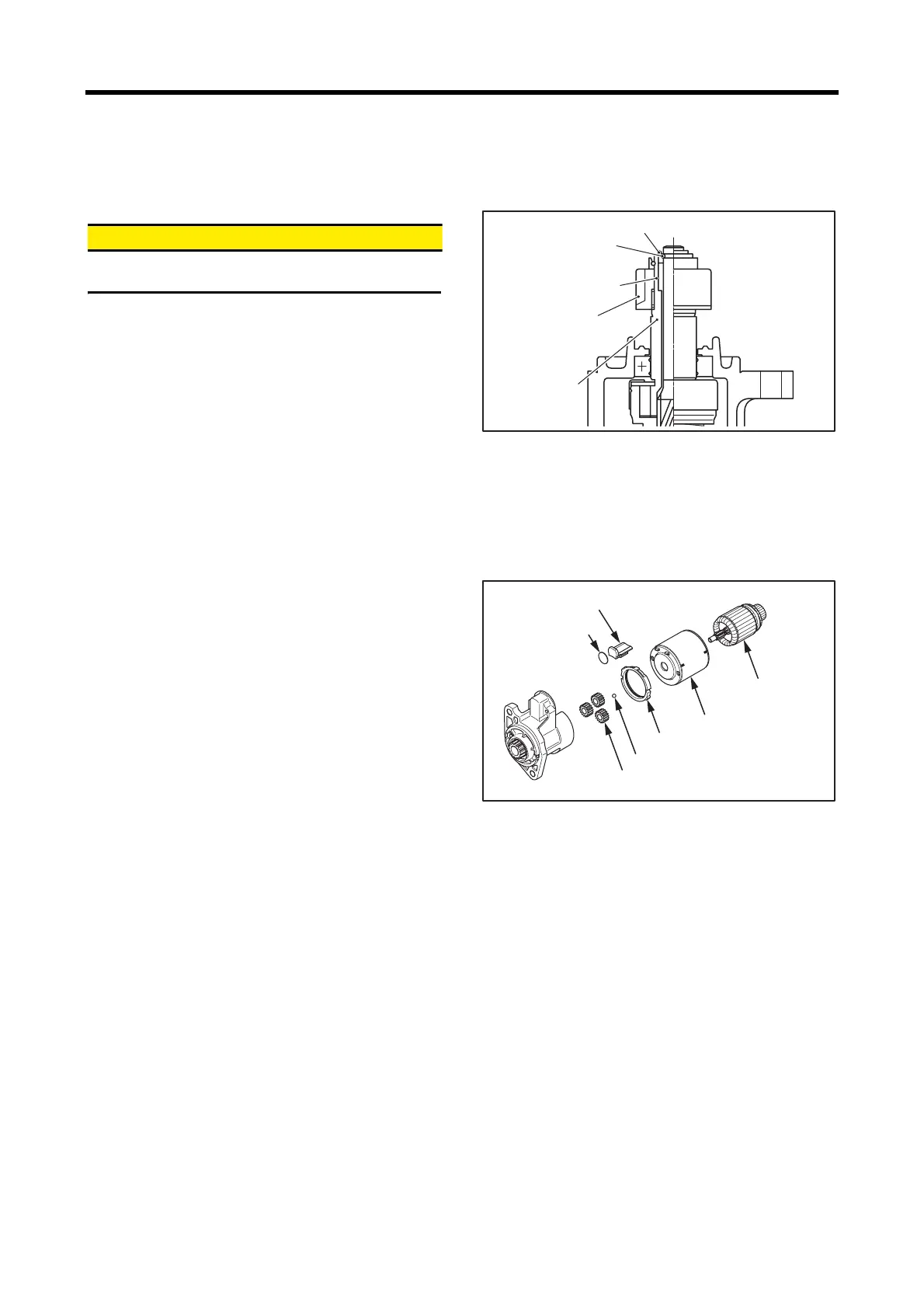

2.5.3 Installing gear shaft
&$87,21
Be sure to use a new stopper ring. Do not reuse a
removed one.
(1) Reassemble the lever to the overrunning clutch.
(2) Fit the internal gear into the gear shaft.
(3) Put the gear shaft through the overrunning clutch and
install the stopper on it.
(4) Fit the stopper ring into the groove of the stopper ring
and firmly pinch it.
(5) Using a gear puller, firmly pull the pinion and fit the
stopper into the stopper ring.
Note: The adjustment of play in the axial direction of the
gear shaft is not necessary because its required
amount is automatically secured.
Installing gear shaft
2.5.4 Installing yoke and armature
(1) Install the planetary gears on the gear shaft.
(2) Install the packing on the internal gear.
(3) Install the plate and packing.
(4) Install the yoke on the front bracket.
(5) Apply grease to the armature shaft end and install a ball
on it.
(6) Install the armature.
Note: The adjustment of play in the axial direction of the
armature shaft is not necessary.
Installing yoke and armature
Pinion
Shaft of
overrunning clutch
Stopper ring
Stopper
Gear shaft
Plate
Packing
Planetary gear
Ball
Packing
Yoke
Armature
