ELECTRICAL SYSTEM
12-22

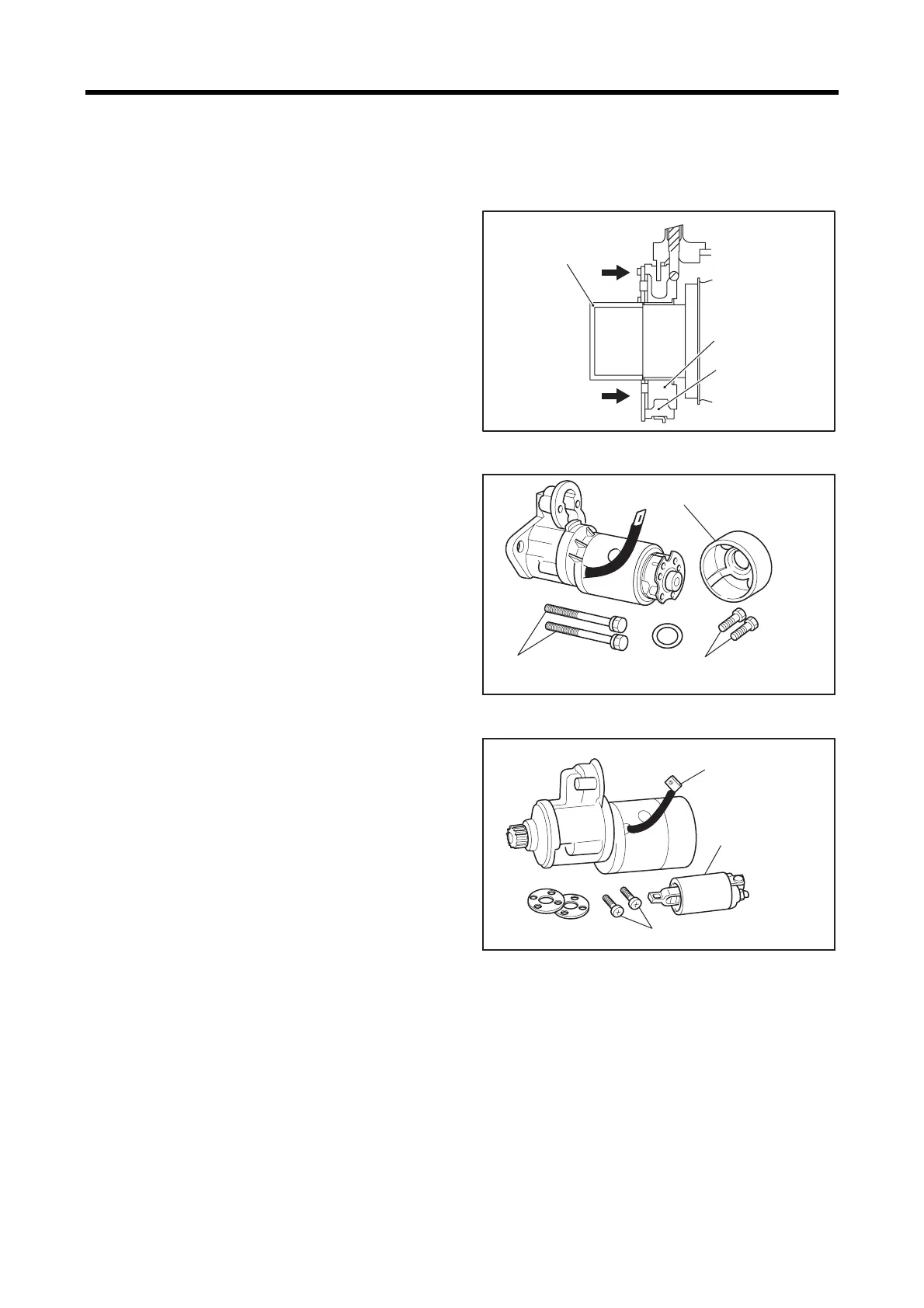

2.5.5 Installing brush holder and brush assembly
Attach the socket to the commutator of the armature.
While sliding the brushes on the socket, install the brush
holder and brush assembly on the armature.
Installing brush holder and brush assembly
2.5.6 Installing rear bracket
Install the rear bracket to the yoke, and tighten the through
bolt and the brush holder screws.
Installing rear bracket
2.5.7 Installing magnetic switch
(1) Install the magnetic switch and tighten the screws.
(2) Connect the lead to the terminal M and secure it with
the fixing nut.
Installing magnetic switch
Socket
Brush holder
Brush assembly
Rear bracket
Through bolt
Brush holder retaining bolt
Connector
Magnet switch
Retaining bolt
To Next Page
