FUEL SYSTEM
8-2
1. Removing fuel system
&$87,21
Cover the openings on the injection pipe, nozzle inlet connector and injection pipe to prevent dust from entering the
fuel system.

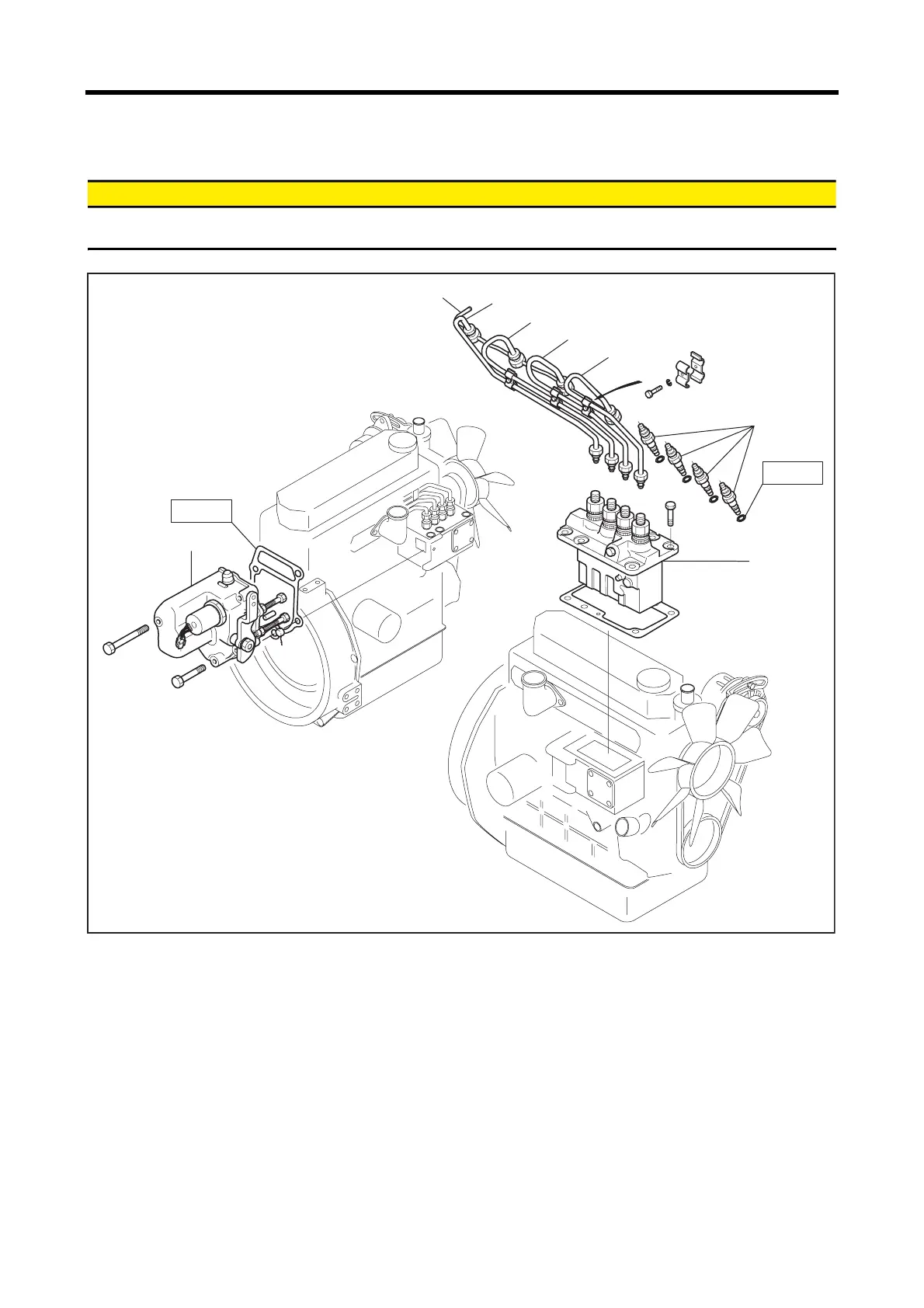

Removing fuel system
Removing sequence
1 No. 1 fuel injection pipe 5 Fuel leak-off pipe
2 No. 2 fuel injection pipe 6 Fuel injection nozzle
3 No. 3 fuel injection pipe 7 Governor
4 No. 4 fuel injection pipe 8 Fuel injection pump
8
5
4
3
2
1
6
7
Replace
Replace
