DISASSEMBLY OF BASIC ENGINE
5-11

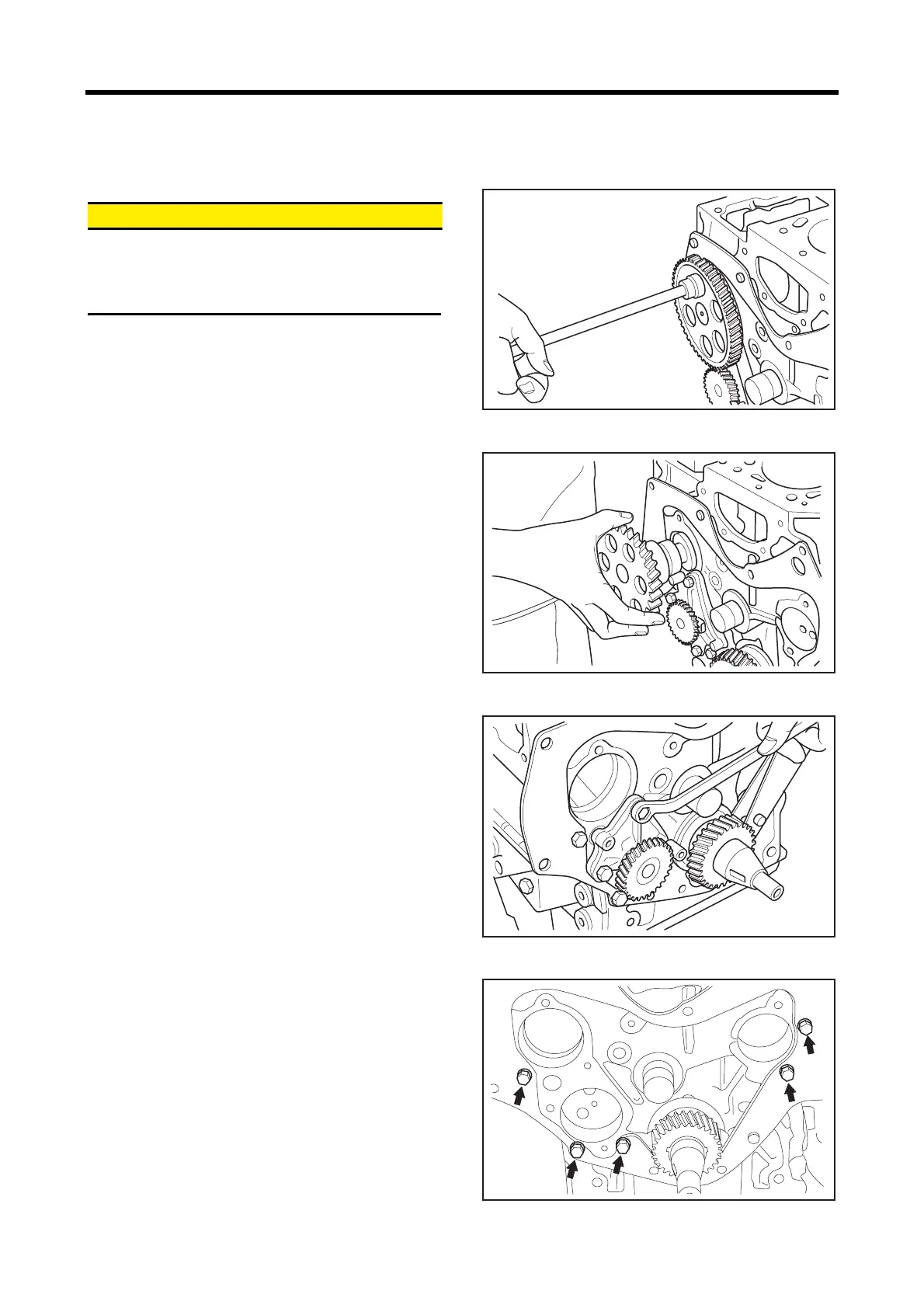

3.7 Removing fuel injection pump camshaft
&$87,21
When pulling out the fuel injection pump camshaft, be
careful not to cause damage to the cam portion of the
fuel injection pump camshaft and the cam hole of the
cylinder block.
(1) Remove the stopper bolt.
(2) Hit the rear part of the fuel injection pump camshaft
with a copper rod. Pull out the fuel injection pump
camshaft to the front side.
Note: Use hydraulic press to separate the camshaft gear and
fuel injection pump camshaft gear from the shaft.
Perform separating the gears as necessary.
Removing pump camshaft stopper bolt
Removing pump shaft
3.8 Removing oil pump
Remove the oil pump mounting bolt, and remove the oil
pump from the cylinder block.
Removing oil pump
3.9 Removing front plate
(1)
Remove the front plate bolts.
(2) Remove the front plate from the crankcase.
Note: If it is difficult to remove the front plate, lightly tap it
with a plastic hammer.
Front plate mounting bolt
