5.2 Memories Used for High Performance model QCPU, Process CPU, and Redundant CPU 5.2.7 Automatic all data write from memory card to standard ROM
(3) Execution procedure for automatic write to standard ROM
Perform this function by the following procedure.
(a) Setting with GX Developer
1) Select "Clear program memory" and "Auto Download all Data from Memory card to Standard ROM" in the
Boot file tab of the PLC parameter dialog box.
Set the programs and parameters to be booted in the Boot file tab.
(Select "Standard ROM" in "Transfer from".)
2) Store the set parameters and programs to be booted to the memory card.
(b) Operation on the CPU module side
1) Power off the CPU module.
2) Mount the memory card storing the parameters and programs to be booted to the CPU module.
3) Set the parameter-valid drive with the DIP switches on the CPU module to the mounted memory card.
• SRAM card •••••• SW2: on, SW3: off
• Flash card and ATA card •••••• SW2: off, SW3: on

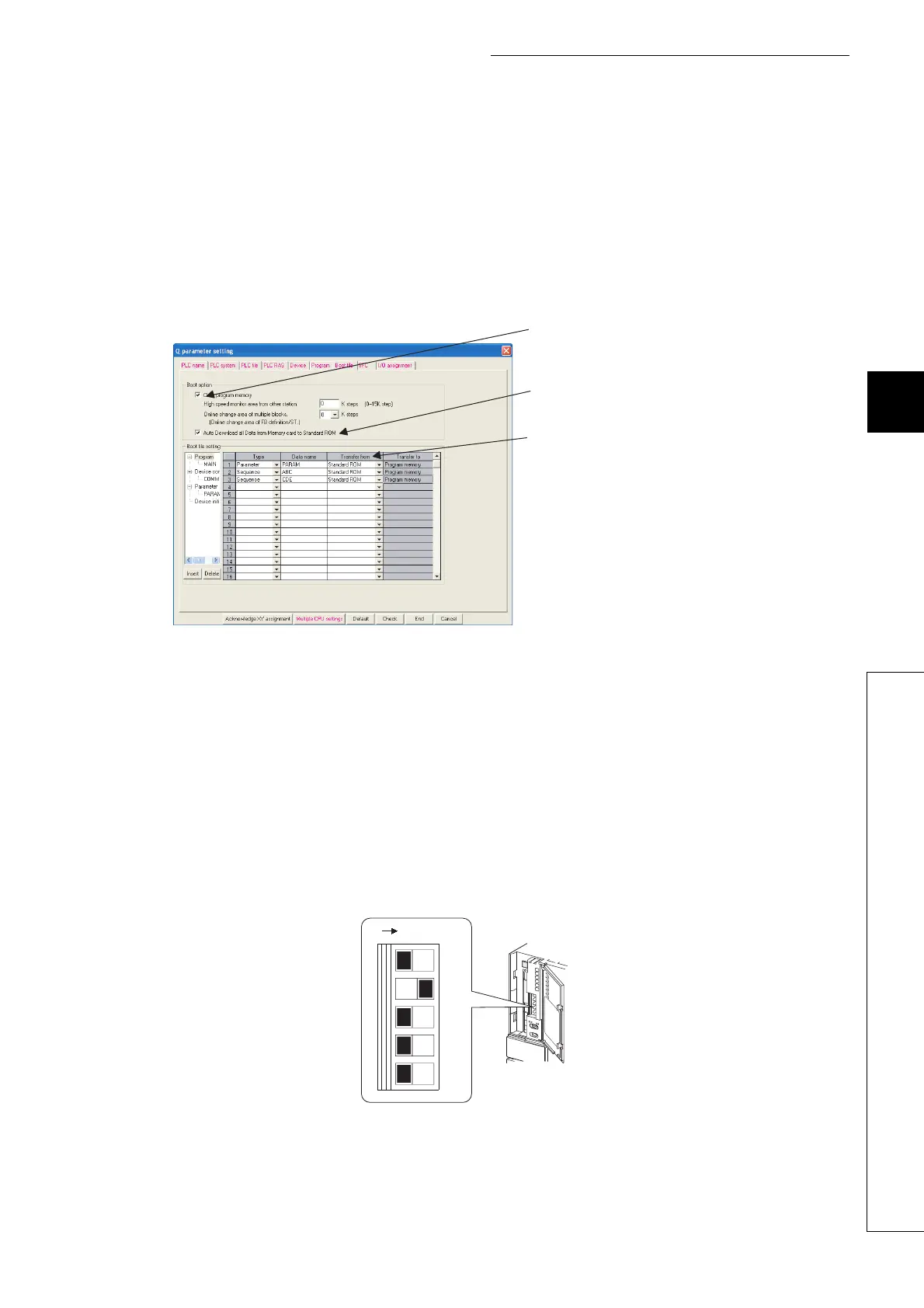

Figure 5.30 Auto Download all Data from Memory card to Standard ROM setting
Figure 5.31 DIP switch setting when the SRAM card is mounted
Select "Clear program memory".
Select "Auto Download all Data from
Memory card to Standard ROM".
Select "Standard ROM"
in "Transfer from".
1
2
3
4
5
ON SW
